1、 Mettler Toledo brand 33H1-00000-D00-J00 weighing display controller model introduction
Product Name: XK3141-6000 Weighing Display Terminal
Model Description: 33H1-00000-D00-J00, dustproof built-in DeviceNet bus interface (PtHN-1400N)
Series model: IND331 dustproof, AC power supply; IND331 dustproof, 24V DC power supply;IND331 panel type, AC power supply; IND331 panel type, 24V DC power supply
Application scope: Chemical, metallurgical, pharmaceutical, tobacco, food and other industrial fields
Series Introduction: XK3141-6000 Industrial Weighing Terminal is a high-quality weighing control terminal launched by Mettler Toledo. It combines all the advantages of the classic instrument Panther and has been comprehensively improved in various aspects. The XK3141-6000 industrial weighing terminal can be widely used in industrial fields such as chemical, metallurgical, pharmaceutical, tobacco, and food. The significantly improved performance, convenient replacement process, rich interface configuration, flexible calibration method, convenient parameter setting and system backup, as well as more powerful weighing display, constant value control, weight inspection and sorting, and flow monitoring functions, will surely bring you a faster experience.
2、 Mettler Toledo brand IND331 weighing display controller product introduction
1. Product Introduction
The IND331 industrial scale terminal provides a compact and flexible solution for various weighing needs. These terminal configurations come in multiple housing types and can be used in almost any industrial environment. They have been optimized and are easy to integrate into existing weighing systems, and their modular structure helps simplify maintenance. The innovative use of Secure Data (SD) storage technology allows for quick and easy replacement of terminals, completion of all calibration and configuration settings.
2mv/V and 3mv/VThe weighing sensorAll are supported without any configuration changes. The ultra fast analog-to-digital conversion rate, patented TraxDSP digital filtering technology, and 50 Hz discrete I/O update rate enhance measurement and control applications. IND331 provides precise measurement data from grams to tons in a cost-effective package.
Whether transmitting weight data to process PLCs or providing serial data output to printers, the IND331 terminal can provide solutions for various applications.
2. Main functions
Zeroing: Key zeroing and automatic zero tracking can be performed directly through the instrument, or zeroing can be achieved through input ports or PLC;
Peeling: The button can be directly used to peel and correct the negative net weight through the instrument, and peeling can also be achieved through the input port or PLC, and the preset tare weight function can be achieved through PLC;
Skin cleaning: The skin can be cleaned directly through the instrument panel using buttons, or the weight can be cleared using the input port or PLC;
Printing: Button printing and automatic printing can be performed directly through the instrument (when reaching the preset point), and printing can also be achieved through input ports or PLC;
Pre set point function: It can be used for fixed value control, such as dual speed filling of single materials, and other applications;
Comparator function: can be used for sorting and weight detection, upper and lower limit alarms, and other applications;
Flow function: flow monitoring can be performed using a comparator or PLC;
SD memory: can backup and restore set parameters and calibration parameters, and can also be used to upgrade software;
Insite ™ Tool: PC configuration tool Insite can be used ™ Perform online/offline parameter settings and backups.
3、 Mettler Toledo XK3141-6000 (IND331) Weighing Display Controller Related Models
Dustproof type (33H1):
33H1-00000-000-J00
33H1-00000-D00-J00
33H1-00000-B00-J00
33H1-00000-A00-J00
33H1-00000-P00-J00
33H1-0000B-000-J00
33H1-00000-K00-J00
33H1-00000-t00-J01
33H1-00000-t00-301
33H1-00000-E00-J01
33H1-00000-E00-301
33H1-0000B-A00-000
33H1-0000B-A00-J01
33H1-00000-A00-J01
33H1-0000B-000-J01
Panel type model (33P1):
33P1-00000-000-000
33P1-0000B-000-000
33P1-00000-D00-000
33P1-00000-B00-000
33P1-00000-A00-000
33P1-00000-P00-000
33P1-00000-K00-000
33P1-00000-t00-001
33P1-00000-t00-301
33P1-00000-E00-001
33P1-00000-E00-301
33P1-0000B-A00-000
33P1-0000B-t00-000
33P1-00000-A00-001
33P1-00000-B00-001
33P1-00000-P00-001
33P1-0000B-000-001
33P1-00000-E00-300
33P1-00000-P00-301
33P1-00000-D00-301
33P1-00000-T00-000
33P1-0000B-000-J01

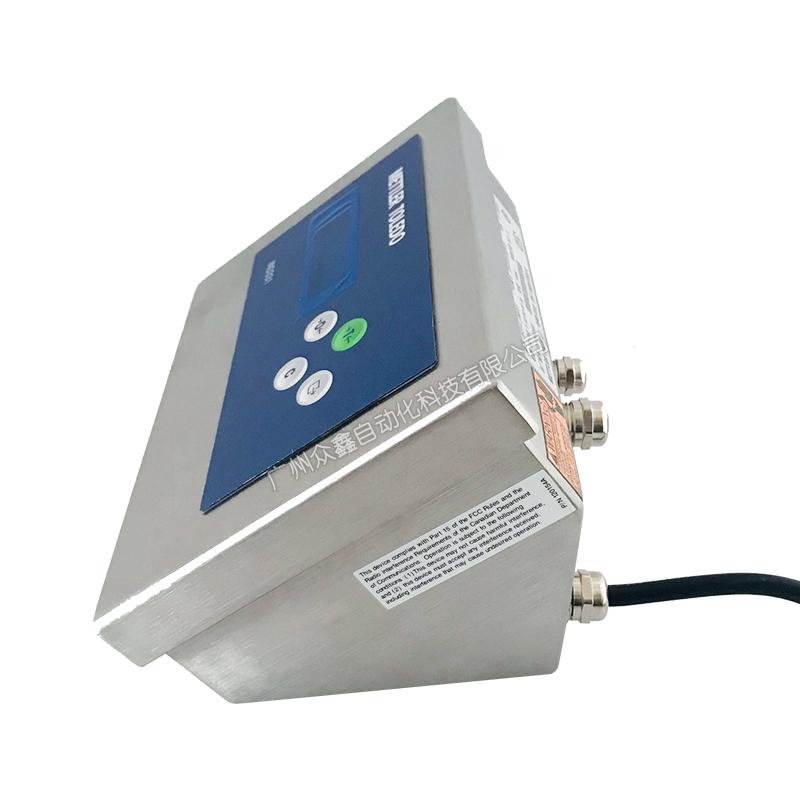

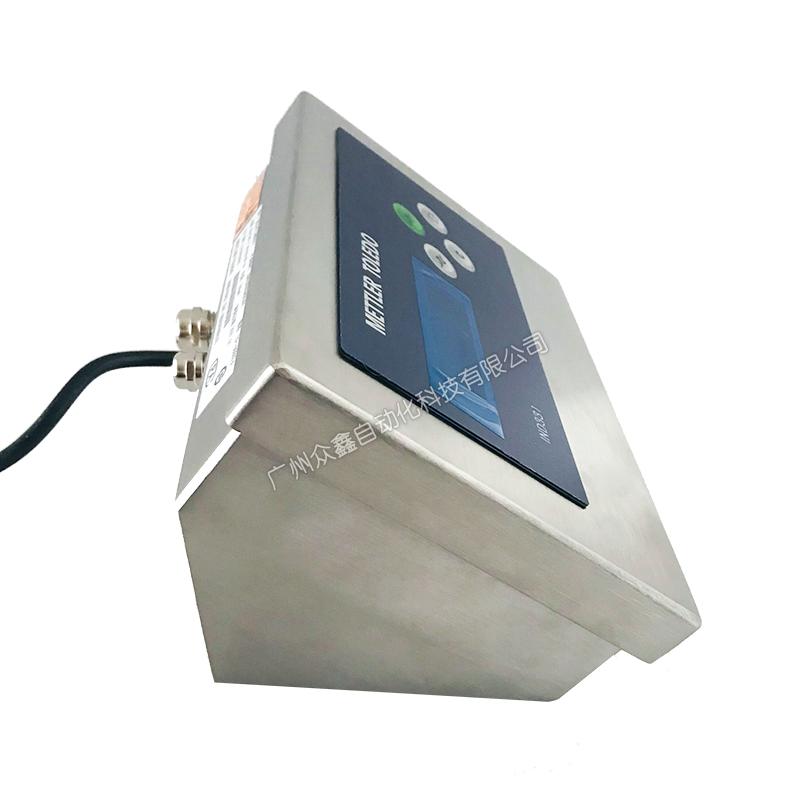

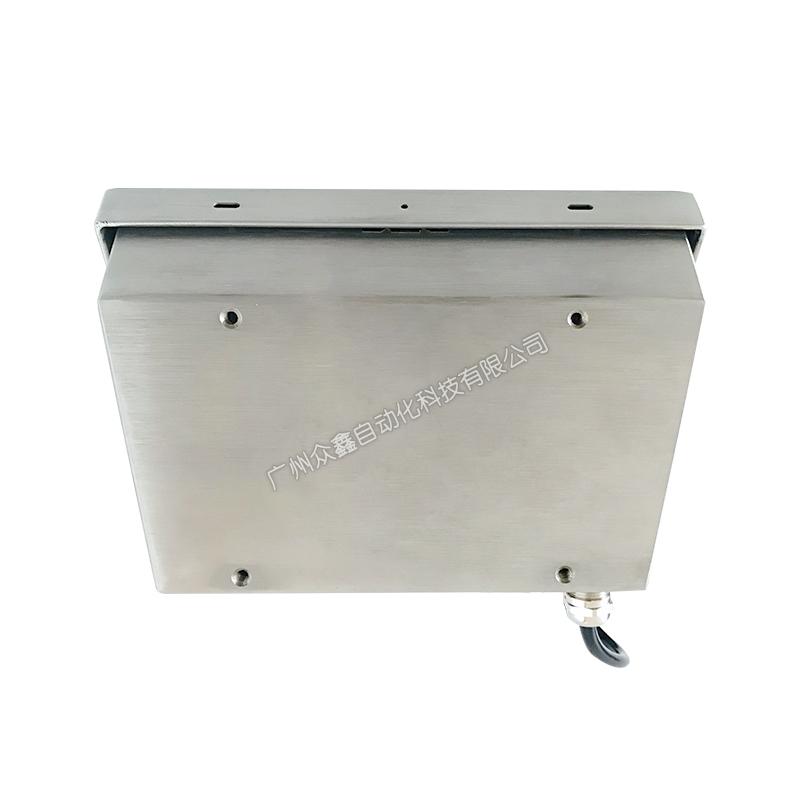

4、 Actual photo of Mettler Toledo XK3141-6000 (IND331) weighing display controller
5、 Mettler Toledo XK3141-6000 (IND331) Weighing Display Controller Product Dimensions
6、 Technical parameters of Mettler Toledo XK3141-6000 (IND331) weighing display controller
