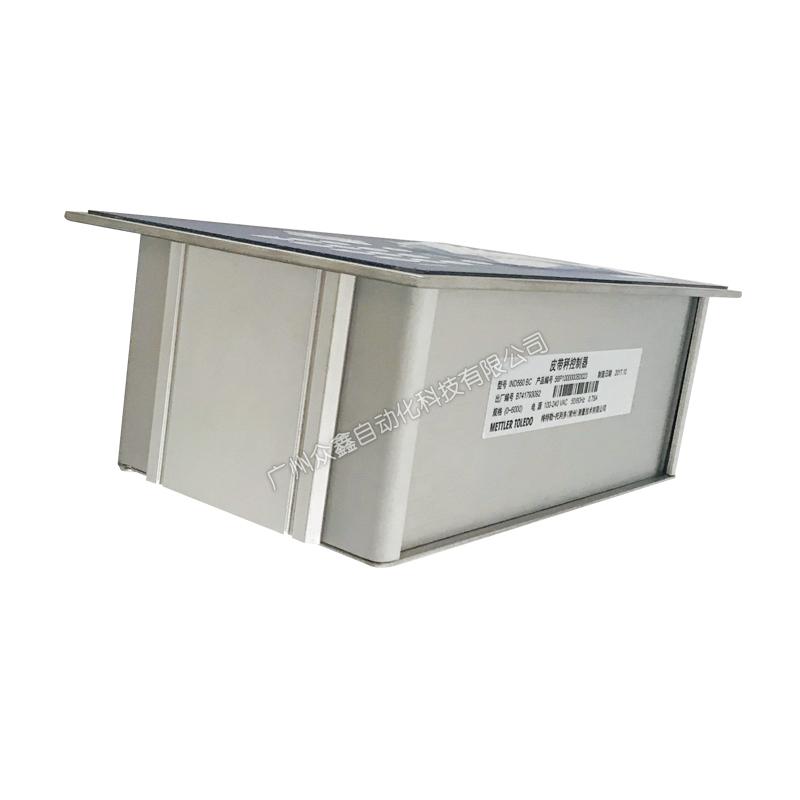

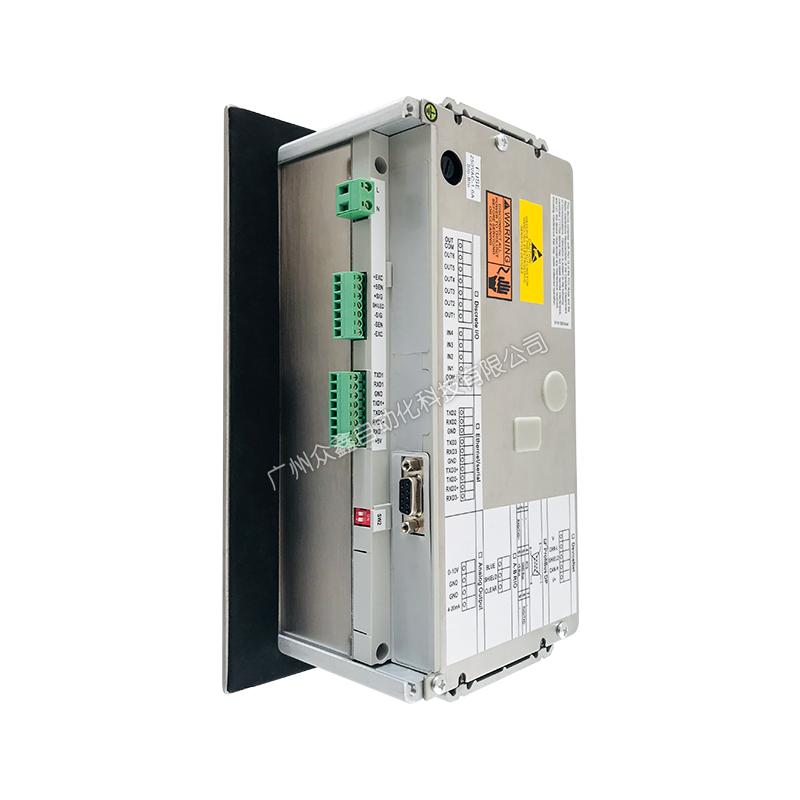

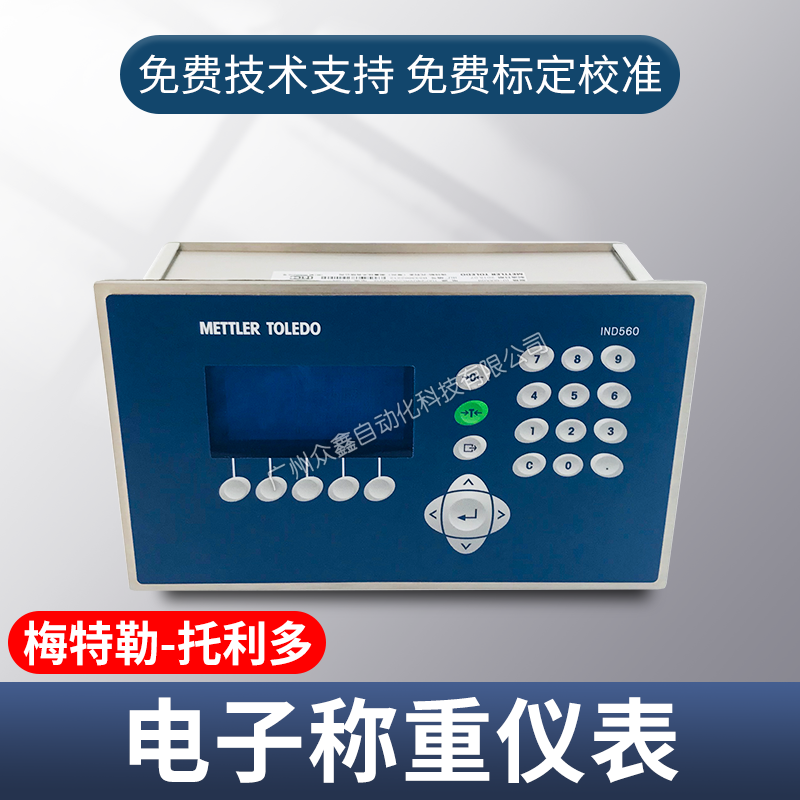

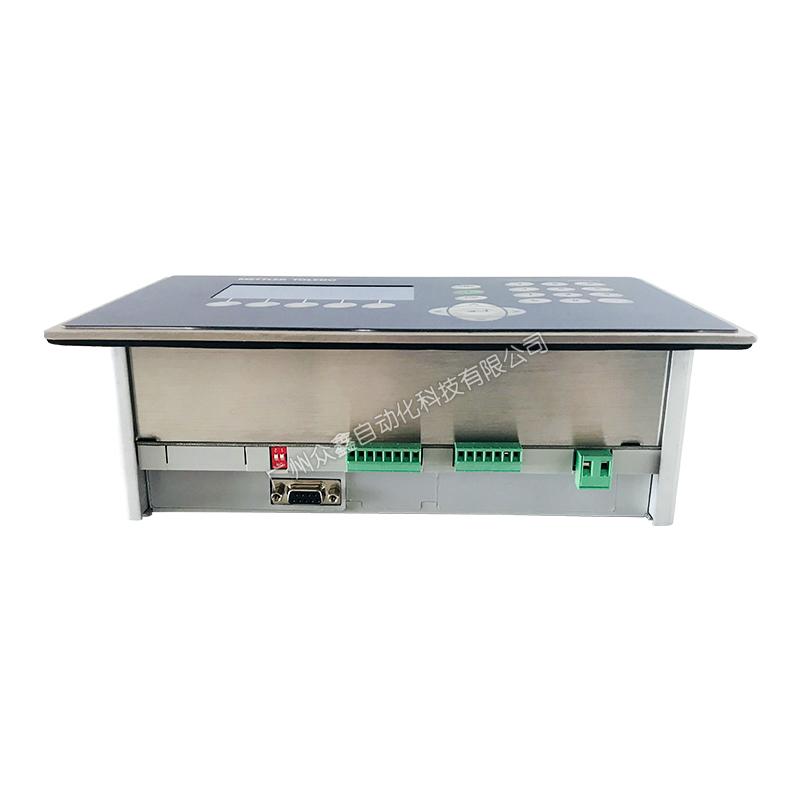

【 IND560 Weighing Display Controller 】 IND560BC Control Instrument _ Mettler Toledo Weighing Instrument

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　

【Guangzhou Zhongxin Automation Technology Co., Ltd】Professional supply of IND560BC belt scale weighing controller METTLER TOLEDOMettler Toledo weighing display controllerIND560 Weighing Display Controller IND560BC Control Instrument_Mettler Toledo weighing instrumentEnsure fast delivery time, 100% original and authentic products, and strive to become the first brand of sensor sales in China. Swiss Mettler Toledo IND560BC feeding controller advantage supply! IND560BC weighing instrument model: 56P1000000B0,56P100000PB0,56P1000000B0023,56P100000PB0023

IND560BC Belt Scale Weighing Controller Product Introduction

IND560BC is a measurement and calculation system used for measuring and controlling feeding systems.
1. The weighing feeder and solid material feeder control the feeding flow rate by controlling the belt speed of the feeder and the speed of the feeding feeder.
2. The belt scale with pre feeder control controls the instantaneous feeding amount through belt load control.
3. A constant load belt scale controls the belt load through belt speed.
Scope of application: Measurement of bulk materials in industries such as electricity, coal, metallurgy, mining, ports, chemical, and building materials.

Installation dimensions of IND560BC belt scale weighing controller


　
Technical parameters of IND560BC belt scale weighing controller

Definition of display parameters
I=instantaneous feeding rate kg/h or t/h
The amount of material unloaded from the belt per unit time
P=instantaneous feeding set value kg/h or t/h
Z=Cumulative measurement in kg or t
Accumulated quantity=instantaneous feeding amount x feeding time internal data, saved after shutdown, cannot be modified by users
Z1=cumulative quantity of 1 kg or t
User data, users can modify it
V=Belt speed of conveyor, m/s
Q=Sensor load kg/m
Weight of materials on a 1-meter belt
Gravity type: control mode
Volumetric: Non controlled mode

IND560BC belt scale weighing controller complete specifications and models

Panel style
56P1-00000-0B0　　　　　　56P1-00000-PB0
56P1-00000-0B0-023　　　56P1-00000-PB0-023
56P1-0000B-0J0-001 　　　56P1-000AB-0D0-001 　
56P1-000AB-0JO-001 　　

Dustproof type
56H1-0000B-0J0-J01 　　　56H1-000AB-0D0-J01
56H1-000AB-0J0-J01 　

Expand reading

Brand Introduction
METTLER TOLEDO, as a leading global manufacturer of precision instruments and scales, has maintained technological and market leadership throughout its century long development history. Nowadays, the solutions provided by Mettler Toledo cover various processes and links in the laboratory, industrial, and retail (commercial) industries. From high-precision microanalysis to weighing applications of over a thousand tons, Mettler Toledo's unified team, global service network, and perfect solutions help global users improve efficiency, create value, and easily cope with various challenges.
　
Working principle of weighing instrument
The working principle of a weighing instrument is to use a weighing sensor (which can be a mechanical strain gauge or stress type, or even a composite type) to detect weight. Generally, it is a three-point or four point sensor. The output signal of the sensor is connected to a nearby junction box, and the total weight signal output from the box is remotely transmitted to the receiving instrument. The important thing here is that the signal of the sensor is not a standard signal, and the required cable requirements are also special. It should be provided by the weighing instrument manufacturer or purchased and connected according to their requirements. Otherwise, inaccurate phenomena may occur Another factor that affects accuracy is the influence of external environment, such as wind speed, rain and snow. If there is a soft connection between the heavy object and the pipeline, the connection effect will also affect the measurement accuracy
　
The above is the detailed information of the IND560 weighing display controller, IND560BC control instrument, and Mettler Toledo weighing instrument. If you have any questions about the price, delivery time, model, or inventory of the IND560 weighing display controller, IND560BC control instrument, and Mettler Toledo weighing instrument, please feel free to call18520271262 Mr. ChenGet the latest price details for the IND560BC weighing display controller METTLER TOLEDO Mettler Toledo weighing instrument.
