Guangzhou Zhongxin Automation Technology Co., Ltd. specializes in supplying IND110 weight transmitters METTLER TOLEDO
Mettler Toledo weight transmitterThe IND110 amplifier is equipped with an IND110 rail transmitter and Mettler Toledo weight transmitter, ensuring fast delivery time and 100% genuine products. We strive to become the top brand of sensor sales in China. Swiss Mettler Toledo Advantageous Supply of Mettler Toledo IND110 Transmitter!

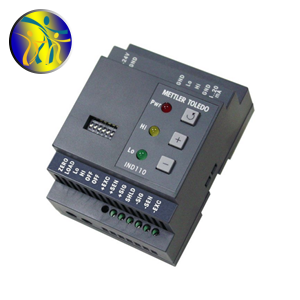

Product Introduction of IND110 Weight Transmitter
IND110
Weight transmitterIt is a high-quality product designed by Mettler Toledo for various industrial applications, using charge balanced analog-to-digital conversion and digital filtering processing technology to eliminate the inherent time drift and repeated calibration phenomena of analog circuit type weight transmitters. The IND110 weight transmitter processes the weak weight signal output by the symmetrical weight sensor (group) digitally and outputs a corresponding 4-20mA analog electrical signal to the user's upper system. At the same time, the IND110 weight transmitter provides two output points to the site: overload alarm and underload alarm. The IND110 weight transmitter is not an inherently safe device and must operate in a safe environment or take explosion-proof measures. Safety isolation barriers must be used when connecting weighing sensors in hazardous areas.
technical parameter
Weighing interface: The excitation voltage is 10VDC, and up to 4 350 ohm resistance strain type weighing sensors can be connected
Range signal range: 1mV to 15mV/Zero signal range: 1mV to 12mV
Analog current output: output range is 4~20mA, maximum load resistance is 500 ohms
Overall output accuracy: ± 0.03% of full scale capacity (at 20 ℃)
Working temperature range: -10 ℃~+45 ℃
Storage temperature range: -30 ℃~+70 ℃
Humidity range: 10%~95% (without condensation)
Installation dimensions of IND110 weight transmitter
Interface description of IND110 weight transmitter
Expand reading
Brand Introduction
METTLER TOLEDO, as a leading global manufacturer of precision instruments and scales, has maintained technological and market leadership throughout its century long development history. Nowadays, the solutions provided by Mettler Toledo cover various processes and links in the laboratory, industrial, and retail (commercial) industries. From high-precision microanalysis to weighing applications of over a thousand tons, Mettler Toledo's unified team, global service network, and perfect solutions help global users improve efficiency, create value, and easily cope with various challenges.
Working principle of weighing instrument
Weighing instrumentThe working principle of the sensor is to use a weighing sensor (which can be a mechanical strain gauge or stress type, or even a composite type) to detect weight. Generally, it is a three-point or four point sensor. The output signal of the sensor is connected to a nearby junction box, and the total weight signal output from the box is remotely transmitted to the receiving instrument. This is important because the signal of the sensor is not a standard signal, and the required cable requirements are also special. It should be provided by the weighing instrument manufacturer or purchased and connected according to their requirements. Otherwise, inaccurate phenomena may occur Another factor that affects accuracy is the influence of external environment, such as wind speed, rain and snow. If there is a soft connection between the heavy object and the pipeline, the connection effect will also affect the measurement accuracy
The above is the detailed information of the IND110 amplifier, IND110 rail transmitter, and Mettler Toledo weight transmitter. If you have any questions about the price, delivery time, model, or inventory of the IND110 amplifier, IND110 rail transmitter, and Mettler Toledo weight transmitter, please feel free to call
