CI-400A Weighing Instrument Korea Kaishi CI-400A Weighing Controller

1、 CI-400A Weighing Instrument Product Introduction

Product brand:Korean Kaishi　CAS

Product series: CI-400A, which includesCI-401A、CI-405A、CI-407A model

Product Type: Weighing Instrument, Weighing Controller

Brand Agent: Guangzhou Zhongxin Automation Technology Co., Ltd

Product Introduction: The CI-400A series, with its high-speed and high-resolution A/D conversion performance, can achieve accurate and precise weighing even in harsh industrial environments. In addition, its user centered design and functionality can be connected to various products such as platform scales, floor scales, hopper scales, packaging scales, and weighing scales, making it easy and convenient to use.

Product Features:

(1) High speed and high-precision industrial instruments

(2) Applicable to metrology and measurement systems

(3) Easy to operate

(4) Convenient weight setting (fully digital calibration)

(5) Panel type instrument

(6) RFI/EMI shielding

(7) Built in self diagnosis and fault self repair function

(8) Power outage data memory function (WEIGHT BACK UP)

(9) Multiple options available

Product advantages:

(1) Wiring terminals

By using wiring terminals, it is easy to organize the wiring between external devices such as printers, PLCs, controllers, etc.

(2) Quick control and precise measurement

With an A/D conversion speed of 5-320 times per second and a high resolution of 1/10000, it can achieve fast control and precise measurement in various industrial environments.

(3) Body size to improve space utilization efficiency

The depth of the body (about 103mm) has been reduced by 40% compared to the old model, allowing for efficient production of control panels even in narrow spaces.

(4) Bright and clear LED display screen

By using a 20mm high brightness LED display screen, the weight value displayed can be easily and accurately viewed; Through the secondary display screen (applicable to CI-405A/CI-407A), it is easy to grasp and set parameters and various information.

（5）RFI & EMI shielding

The CI-400A series is shielded by RFI (Radio Frequency Interference) and EMI (Electromagnetic Interference), ensuring stable system operation even in noisy environments.

(6) Shortcut key settings (F1~F3)

Users can store commonly used functions in three shortcut keys, thereby improving work efficiency.

(7) Built in serial communication

Standard serial communication interface (current loop, RS-422/485, RS-232C × 2), can be used to connect external displays, computers, printers, and other devices.

(8) Widely applicable fields

The CI-400A series can connect various equipment and measuring instruments such as platform scales, stamp scales, tensile/compression testing machines, truck scales, packaging scales, hopper scales, filling machines, etc.

Main functions:

(1) Date and time of power outage, statistical data storage function

(2) Adjustment of weight change speed (digital filtering function)

(3) Connect various printer functions (Serial)

-Subtotal printing and total function by category

-Built in clock, date and time output function

(4) PC communication function (PC Command mode)

(5) External input and output port usage functions (optional)

(6) The maximum weight and division value can be set arbitrarily

(7) The function of running instructions and range calibration separately

Optional configuration:

(1) Analog output, BCD input/output

(2) Auxiliary Display Screen (CD-3000 Series)

(3) Bill printer

(4) Label printer

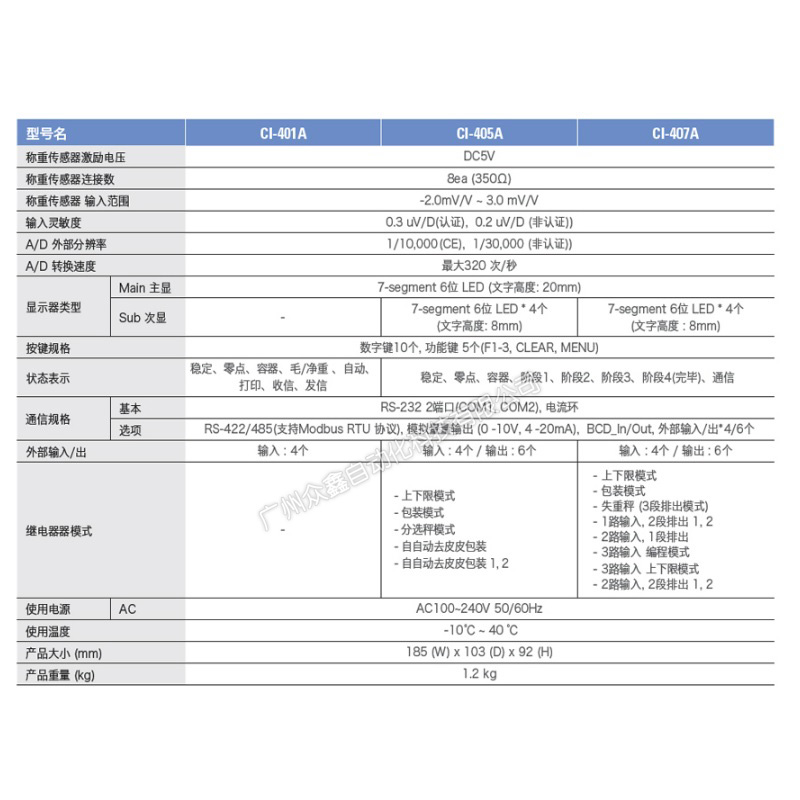

2、 Technical parameters of CI-400A weighing instrument

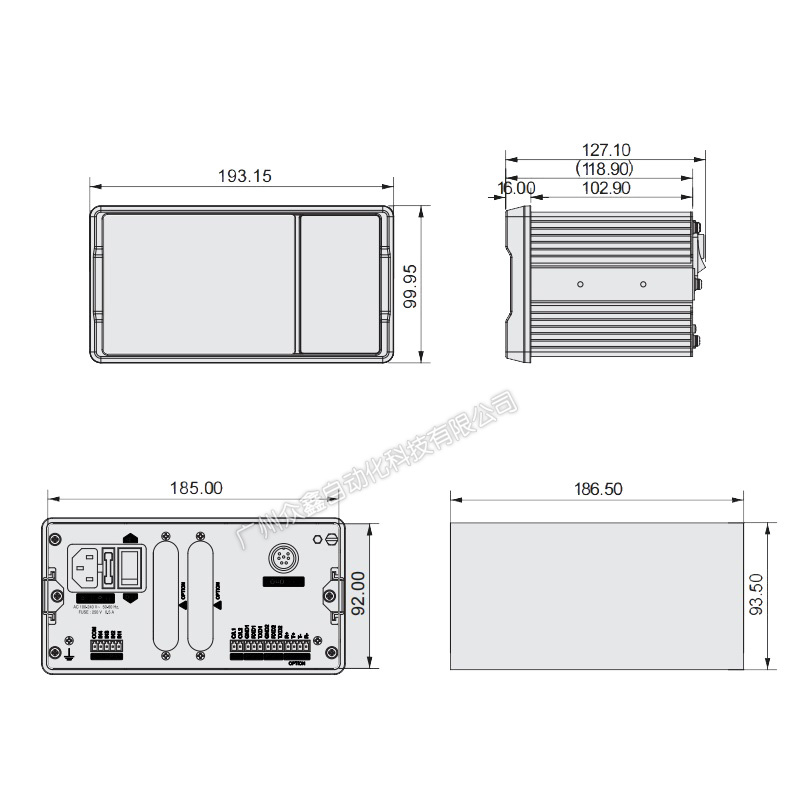

3、 CI-400A Weighing Instrument Product Dimensions

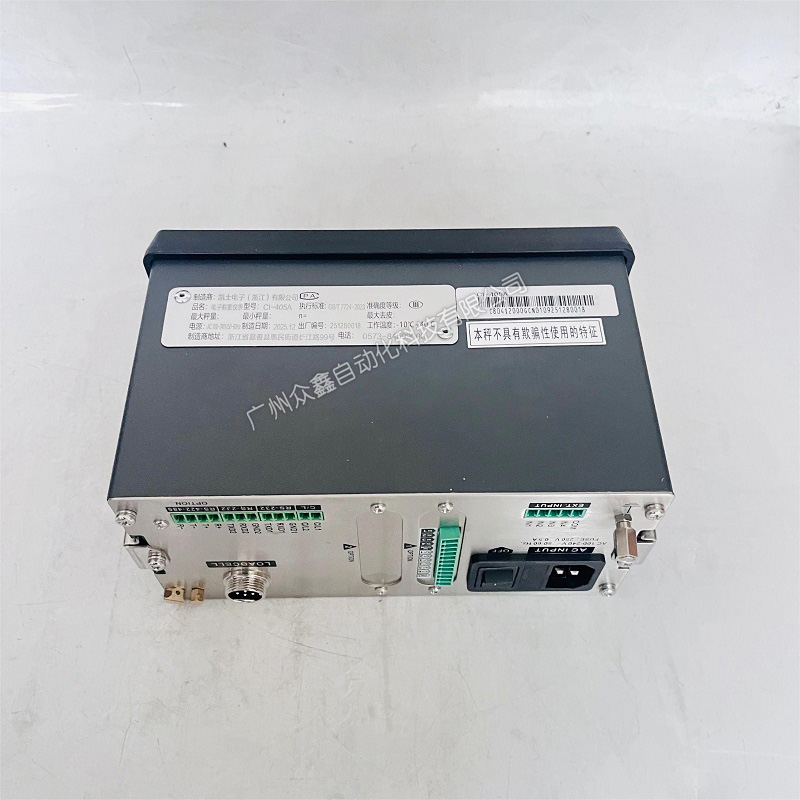

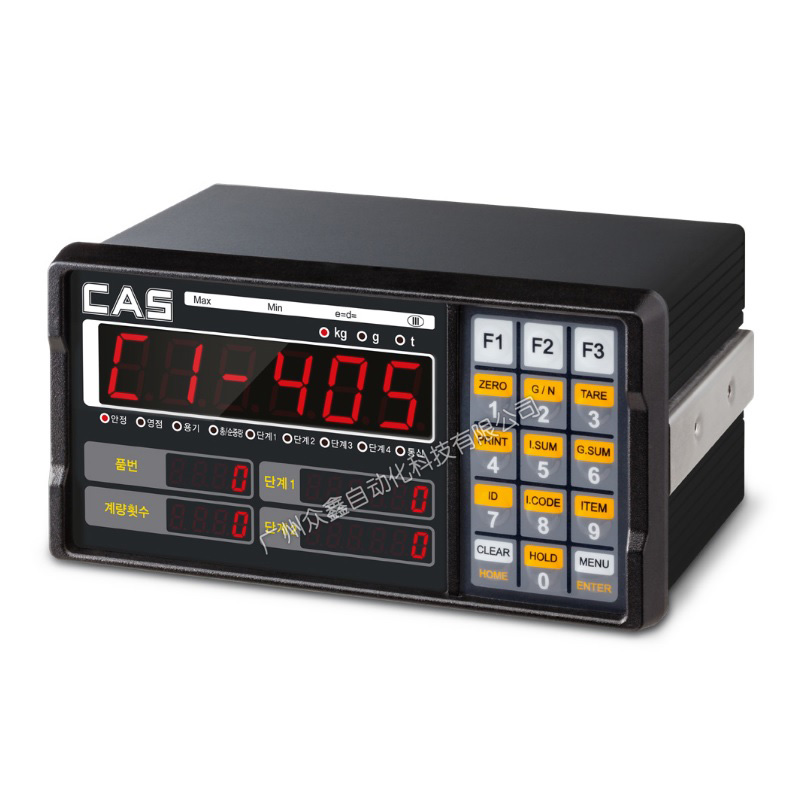

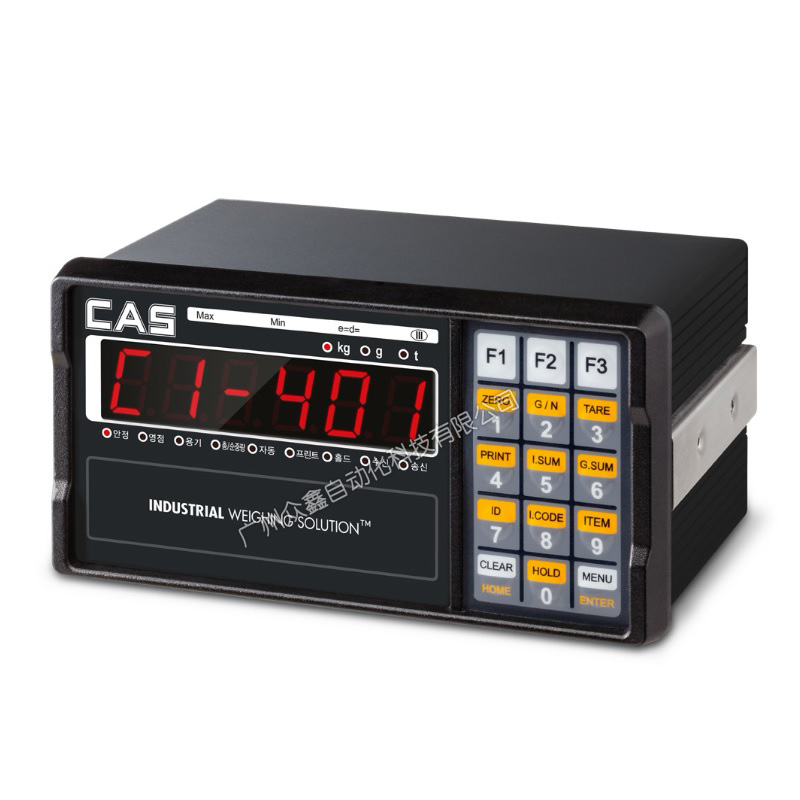

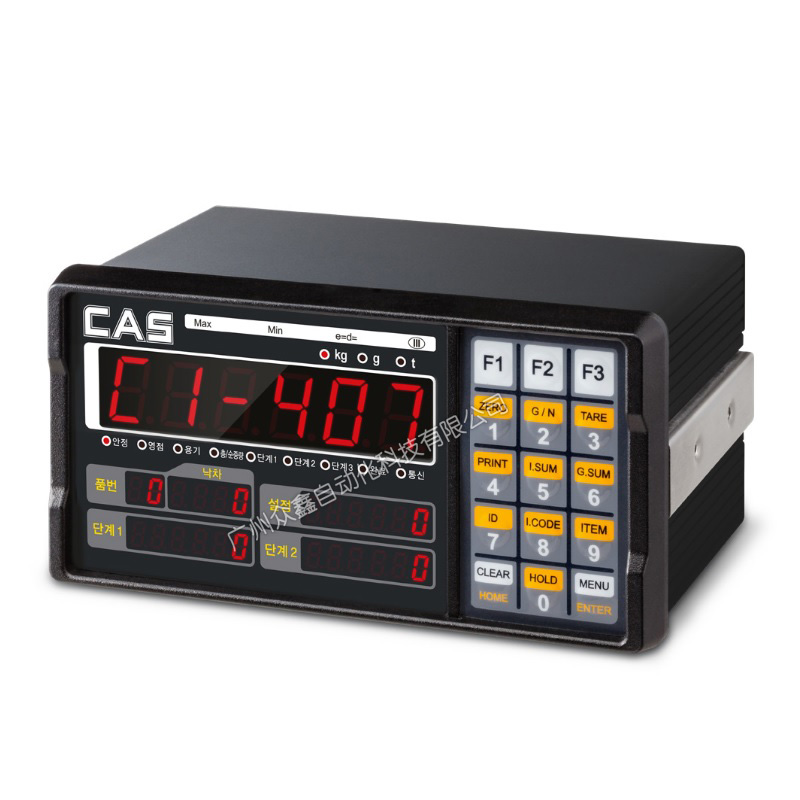

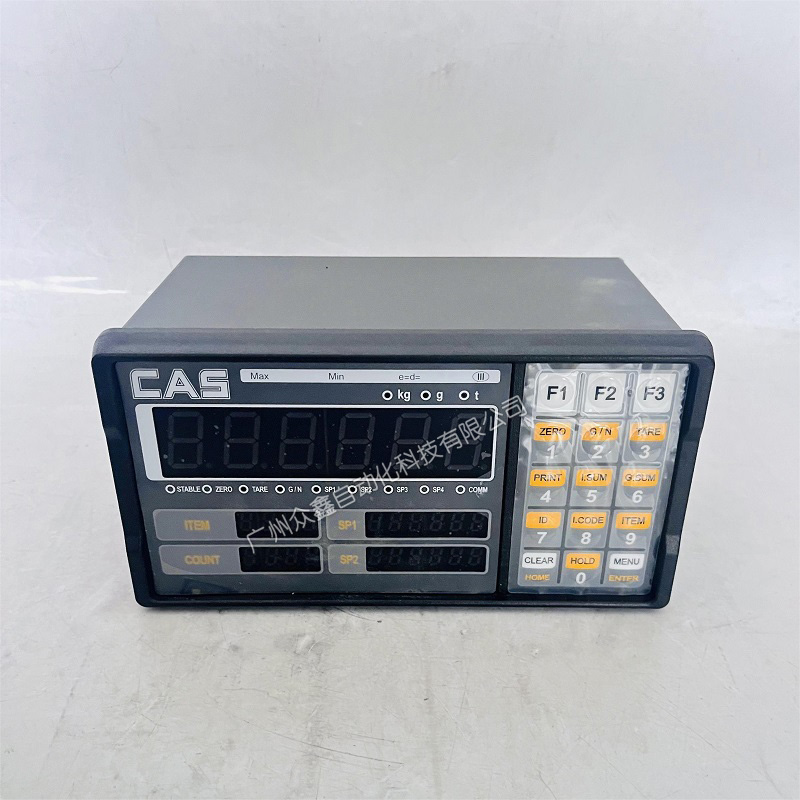

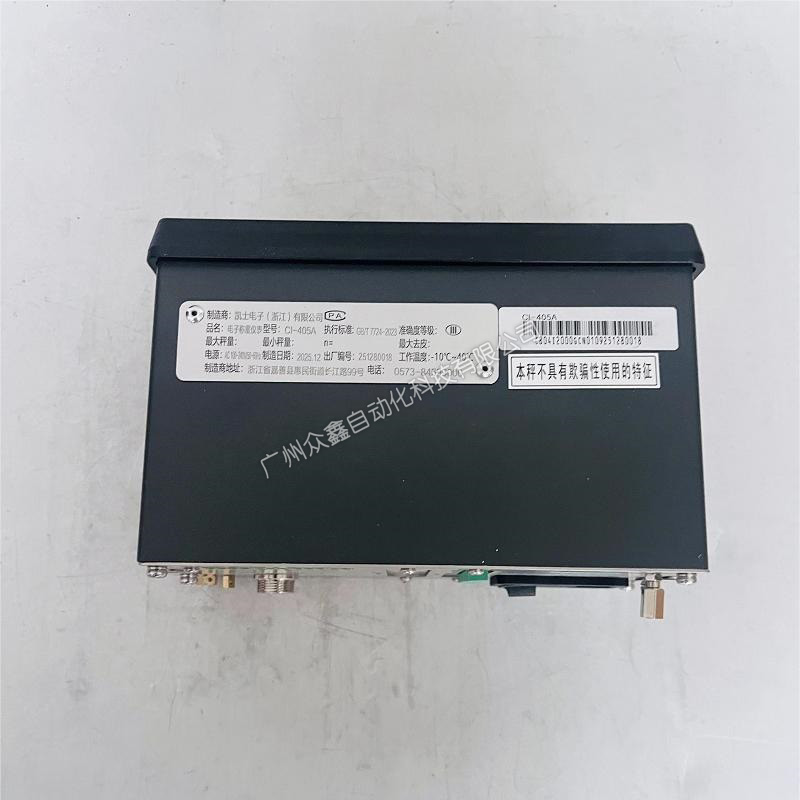

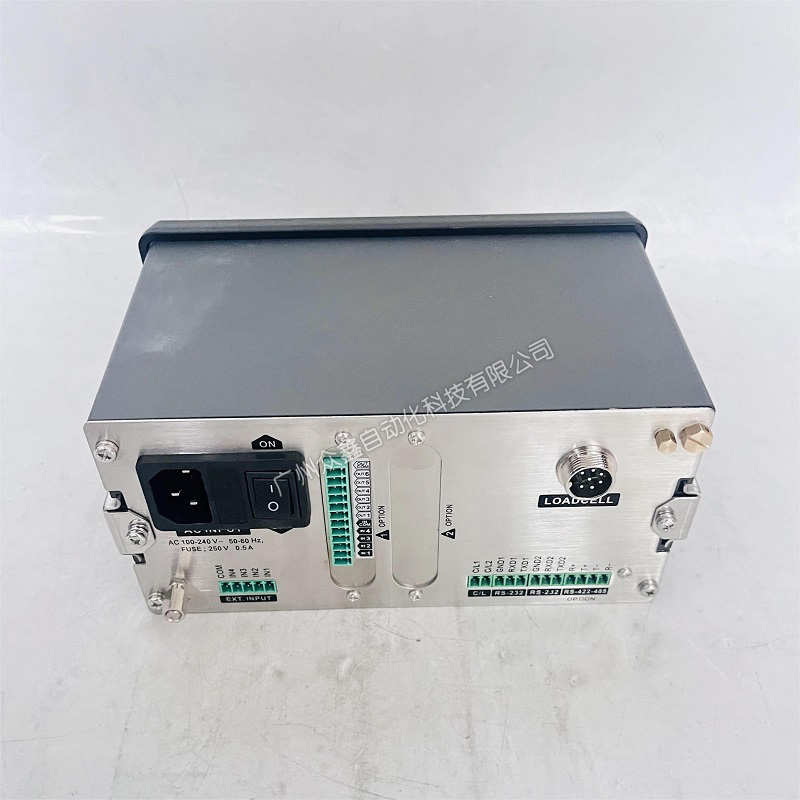

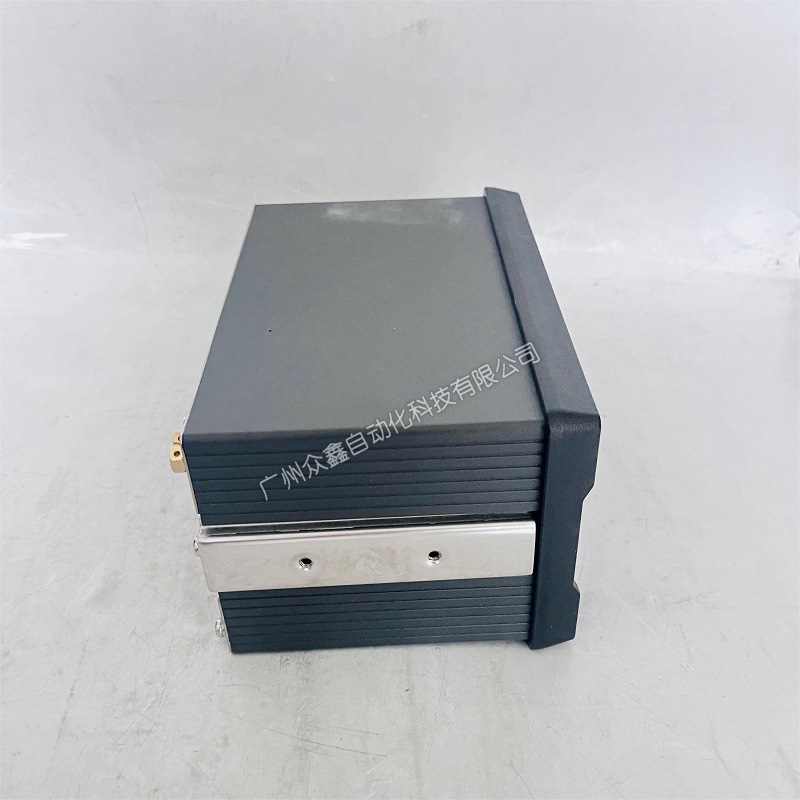

4、 Product image of CI-400A weighing instrument
