CI-170A Weighing Instrument Korea Kaishi CI-170A Industrial Indicators

1、 CI-170A Weighing Instrument Product Introduction

Product brand:Korean Kaishi　CAS

Product Series: CI-170A

Product Type: Weighing Instruments, Industrial Indicators

Brand Agent: Guangzhou Zhongxin Automation Technology Co., Ltd

Product Introduction: CI-170A is an industrial display with a maximum A/D conversion speed of 320 times/second and a high resolution of 1/10000, which can achieve fast control and accurate measurement in various industrial environments. It adopts a compact structure that complies with DIN standards [96 (width) x 48 (height) millimeters], which can save space and improve utilization when making measuring panels, while providing multiple interfaces.

Product Features:

(1) Quick control and precise measurement

With a high-speed AD conversion rate of up to 320 times per second and an external resolution of 1/10000, the CI-170A can achieve fast control and precise measurement.

(2) Compact structure and clear LED display screen that meets DIN standards

Adopting a compact structure that complies with DIN standards [96 (width) x 48 (height) mm] for easy weighing operations; Through a clear LED display screen, users can easily view weight values.

(3) Diversified interfaces

Provide standard RS-232C and external input/output interfaces, as well as optional RS-485 (supporting Modbus RTU protocol) and analog outputs for easy construction and control of weighing systems.

Optional configuration:

(1) RS-485 (supporting Modbus RTU)

(2) Analog output (0~5V, 0~10V, ± 5V, ± 10V, 4~20mA, 0~20mA, 0~24mA)

(3) Adapter (DC12V, 1.25A)

Usage environment:

(1) Filling machine, hopper scale

(2) Platform scale

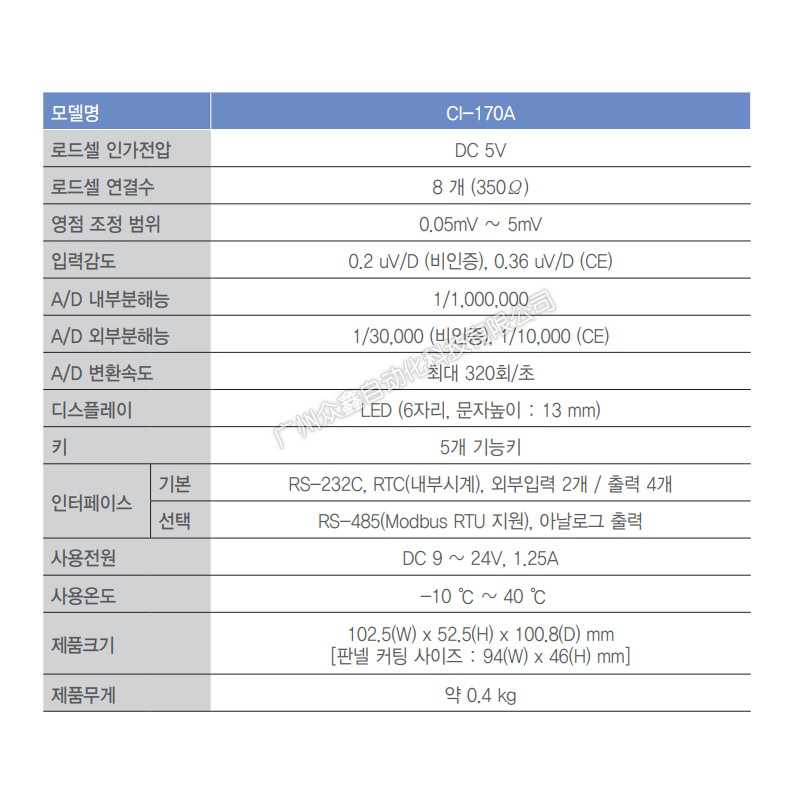

2、 Technical parameters of CI-170A weighing instrument

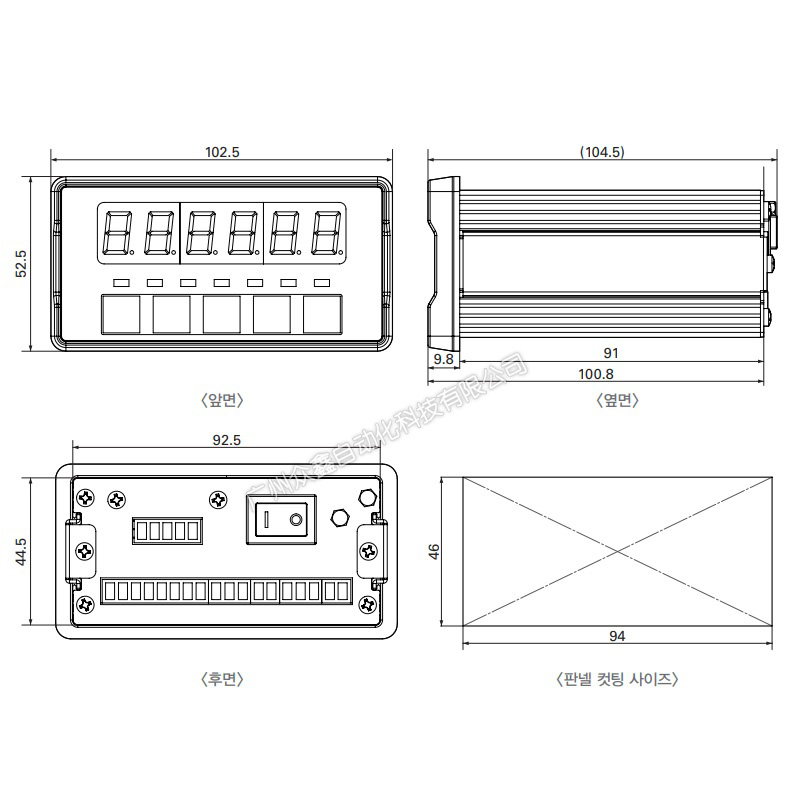

3、 CI-170A Weighing Instrument Product Dimensions

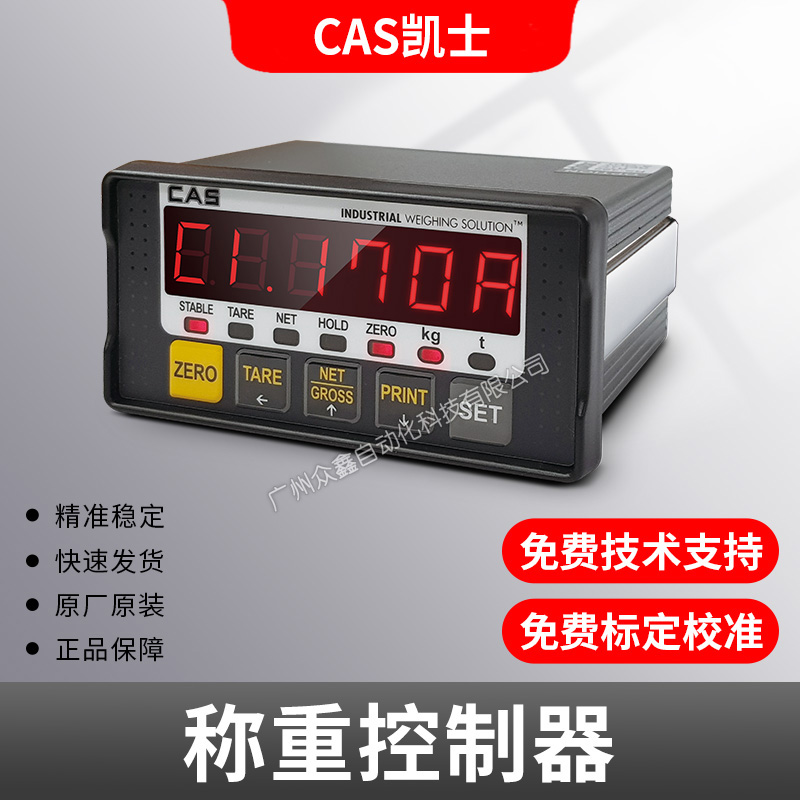

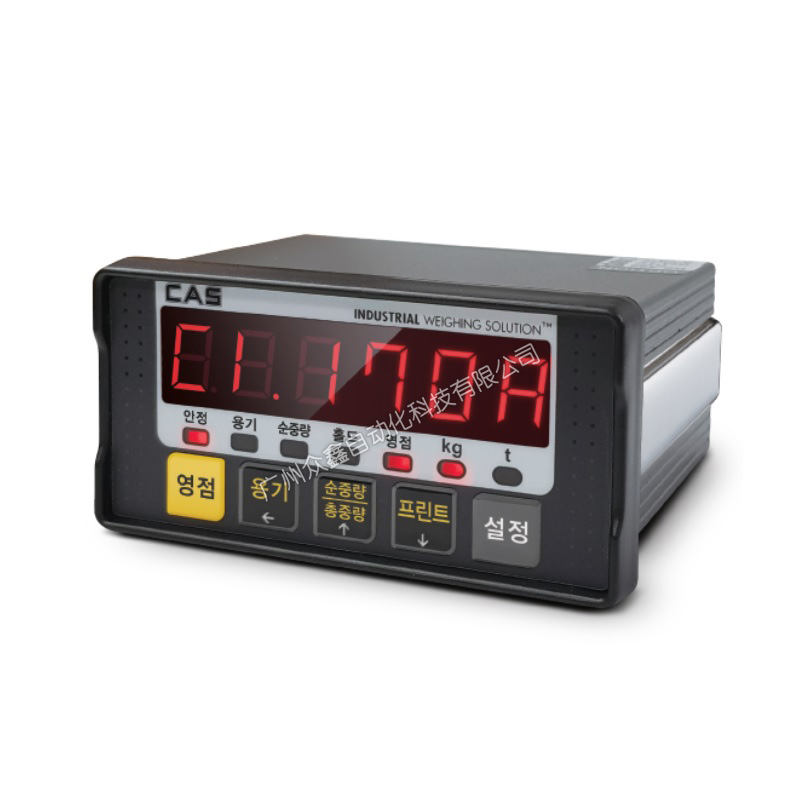

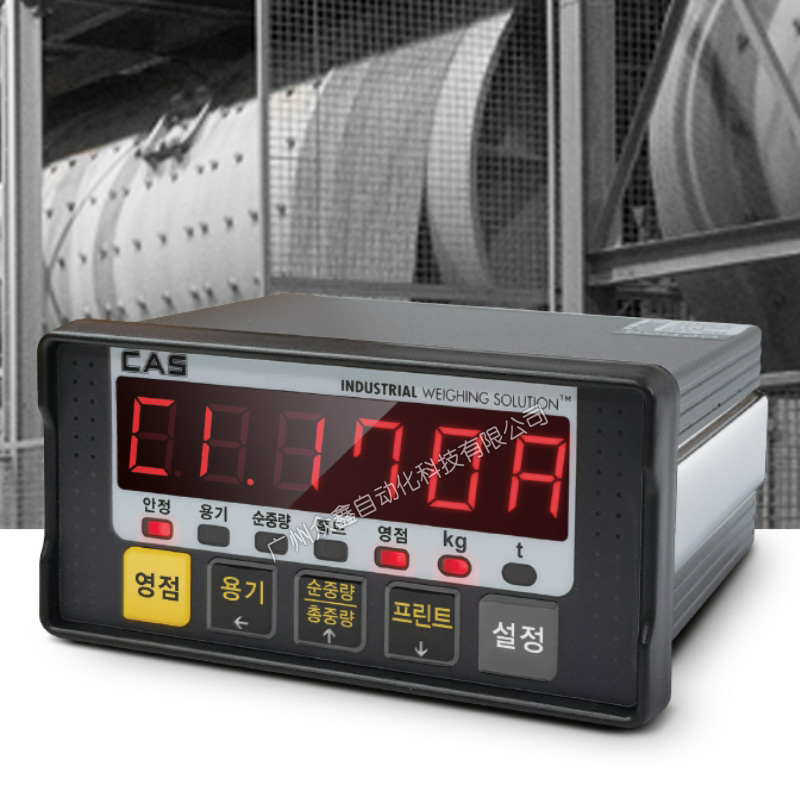

4、 Product image of CI-170A weighing instrument
