CI-400AL weighing instrument, Korean Kaishi CI-400AL series weighing controller

1、 CI-400AL Weighing Instrument Product Introduction

Product brand:Korean Kaishi　CAS

Product Series: CI-400AL

Product Type: Weighing Instrument, Weighing Controller

Product models: CI-401AL, CI-405AL

Brand Agent: Guangzhou Zhongxin Automation Technology Co., Ltd

Product Introduction: The CI-400AL series, with its high-speed and high-resolution analog-to-digital conversion (A/D) performance, can achieve accurate and precise weighing even in harsh industrial environments. In addition, this series adopts a user centered design and functionality, which can be connected to various products such as platform scales, hopper scales, packaging scales, etc., making it easy and convenient to use.

Product Features:

(1) Bright large-sized LED display screen

By using a high brightness LED display screen with a character height of 38mm, it is easy and accurate to view the displayed weight values.

(2) Shortcut Key Settings

Common and required functions can be set as container, net weight/gross weight, and print key. (The original button functions will be replaced by the set functions)

（3）RFI & EMI shielding

The CI-400AL series has RFI (Radio Frequency Interference) and EMI (Electromagnetic Interference) shielding functions, ensuring stable system operation even in noisy environments.

(4) Built in serial communication

Standard serial communication interface (current loop, RS-232C × 2), can be used to connect external displays, computers, printers, and other devices.

(5) Body size to improve space utilization efficiency

With a relatively shallow body depth (about 103 millimeters), panels can be efficiently produced even in narrow spaces.

(6) Quick control and precise measurement

With an A/D conversion rate of 5-320 times per second and a high resolution of 1/10000, it can achieve fast control and precise measurement in various industrial environments.

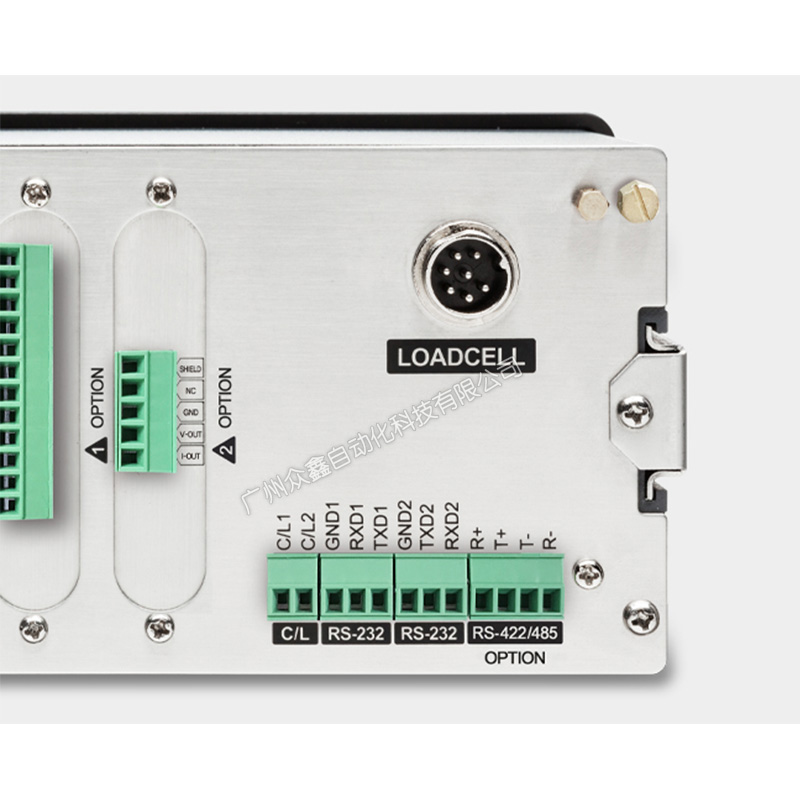

(7) Wiring terminals

By using wiring terminals, external devices (such as printers, PLCs, controllers, etc.) can be easily connected and the wiring can be organized.

Optional configuration

(1) RS-485 (supporting Modbus RTU protocol), analog output, BCD input/output

(2) External input/output (4/6 channels, suitable for CI-401AL)

(3) Auxiliary Display Screen (CD-3000 Series)

(4) Ticket printer/label printer

2、 CI-400AL series product model

1、CI-401AL

Input: 4

Optional configuration - Input: 4/Output: 6

*When external input/output (4/6) cards are installed on CI-401AL, it becomes CI-405AL.

2、CI-405AL

8 inputs/6 outputs

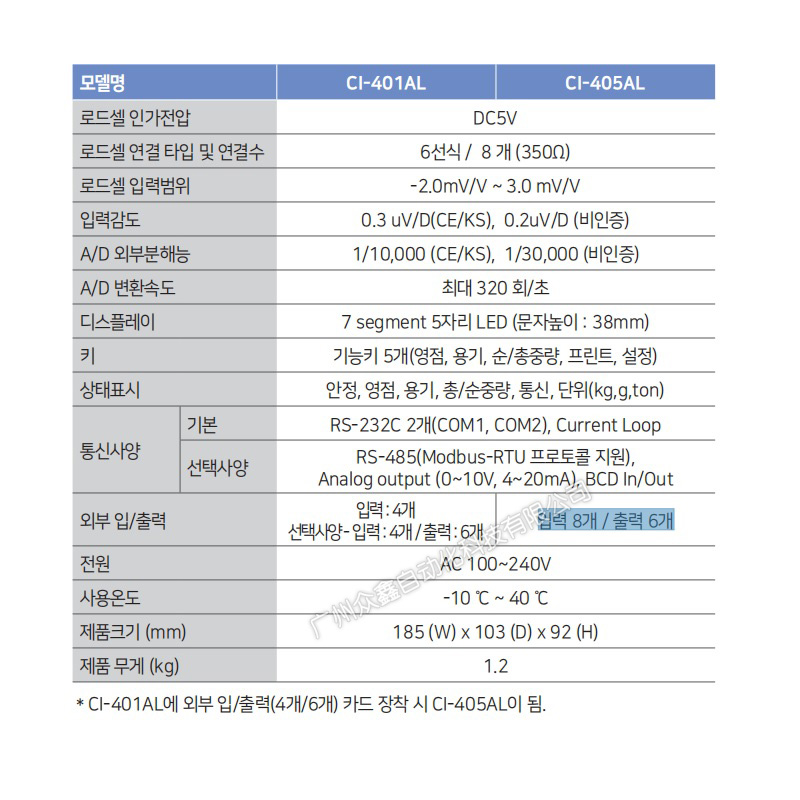

3、 Technical parameters of CI-400AL weighing instrument

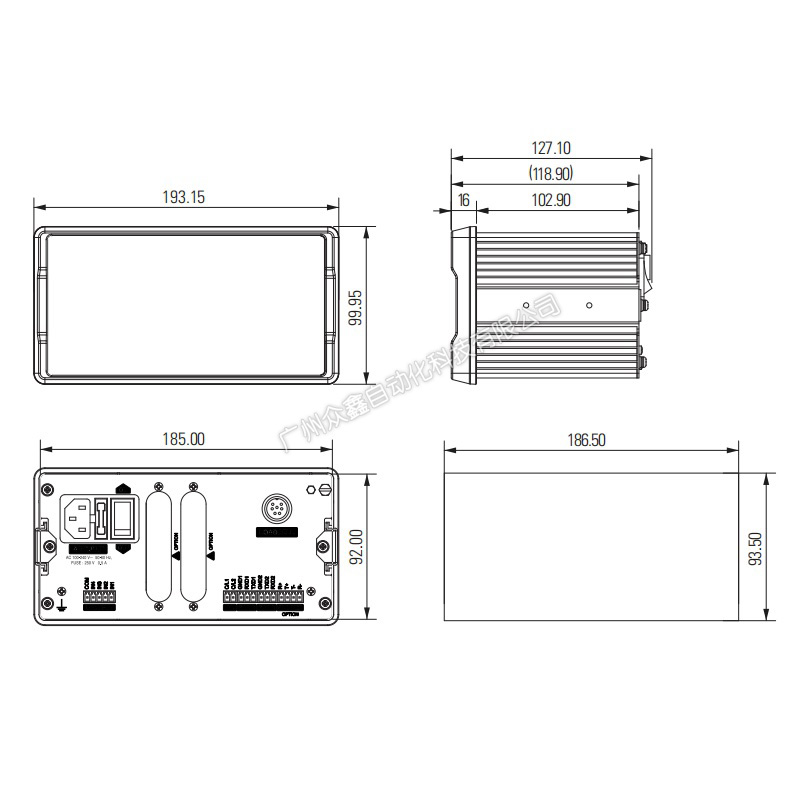

4、 CI-400AL weighing instrument product size

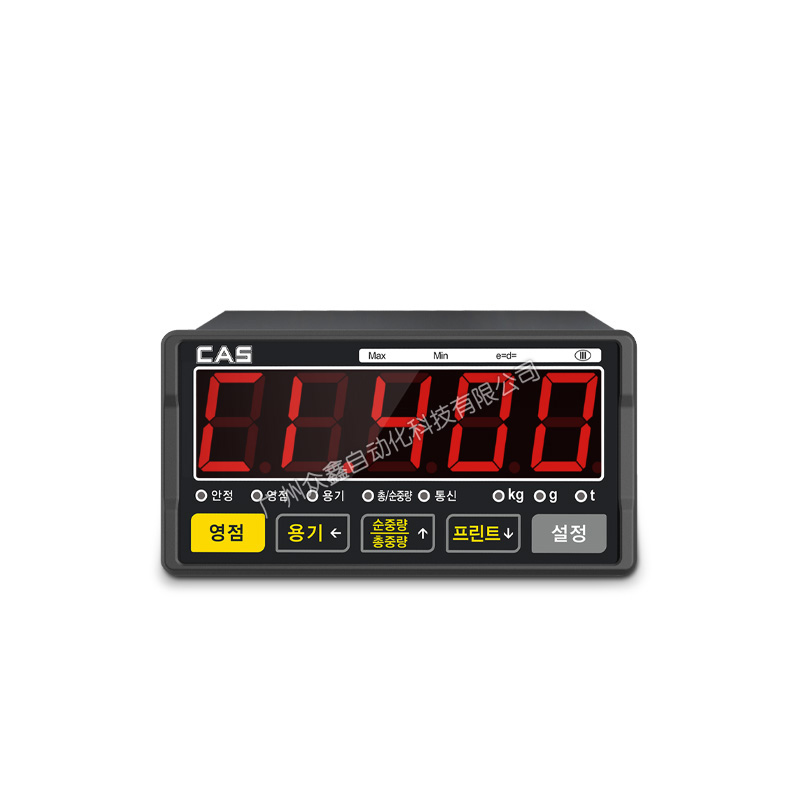

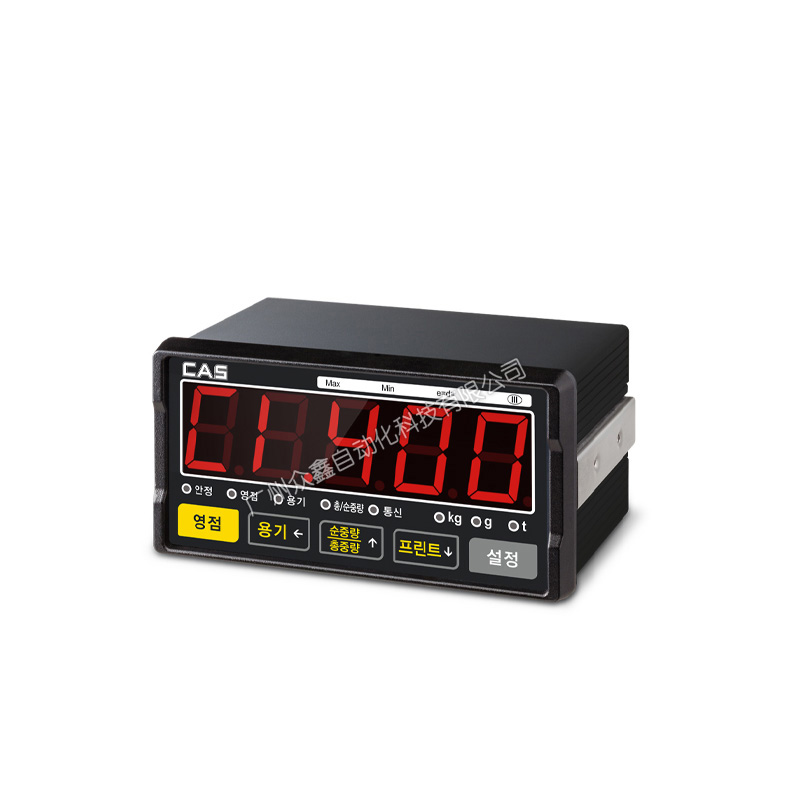

5、 Product image of CI-400AL weighing instrument
