CI-501A Weighing Instrument Korean Kaishi CI-501A Weighing Controller

1、 CI-501A Weighing Instrument Product Introduction

Product brand:Korean Kaishi　CAS

Product Series: CI-500A

Product Type: Weighing Instrument, Weighing Controller

Product model: CI-501A

Brand Agent: Guangzhou Zhongxin Automation Technology Co., Ltd

Product Introduction: The CI-500A series weighing controller has high-speed/high-resolution A/D performance, which can accurately and precisely measure even in harsh industrial environments. In addition, the design and features specifically designed for users enable you to connect to various products such as platforms, weighing scales, hopper scales, packaging scales, and inspection scales, making it easy and convenient to use.

Product Features:

1. Quick control and precise weighing

Achieve fast control and accurate measurement in various industrial environments with an A/D conversion speed of 200 times/second and a high resolution of 1/10000.

2 RFI & EMI shielding

The CI-500A series uses radio interference (RFI)& Electronic interference (EMI) shielding enables reliable system driving even in high noise environments.

3. Bright and clear LED display screen and sub display

The 20mm high brightness LED display allows you to easily and accurately view the displayed weight values, while the Sub display (suitable for CI-505A/507A) enables you to easily identify and set settings and various information.

4. Easy to operate and set up

The rubber keys of the CI-500A series provide excellent key feel and enable precise key control without slipping. In addition, with numeric keys and multiple function keys, you can easily and quickly operate and set, and also set and use the functions you need in the shortcut keys (F1, F2).

5. Application terminal

The terminal block application facilitates the connection with external devices such as printers, PLCs, controllers, etc.

6. Built in serial communication

Built in serial communication (Current loop, Printer, RS-232C), can be used to connect with Printers, external indicators, PCs, etc.

7. Various application fields

The CI-500A series can be connected to platforms, rain type machines, tensile/compression testing machines Truck scale、Packer scale、Hopper scale、 Various devices and measuring devices such as stethoscopes.

8. Install self diagnostic function

When installing a metering or control system, the self diagnostic function can confirm the cables, I/O, and optional installations connected to the indicator, thereby accurately starting the system.

2、 CI-500A series product model

1、CI-501A

(1) External input: 4 channels

(2) Application: Testing machine, platform, compactor, weighing scale

(3) Multiple interfaces: current loop, RS-232C (optional: RS-422/485, BCD input/output)

(4) PC Command Mode

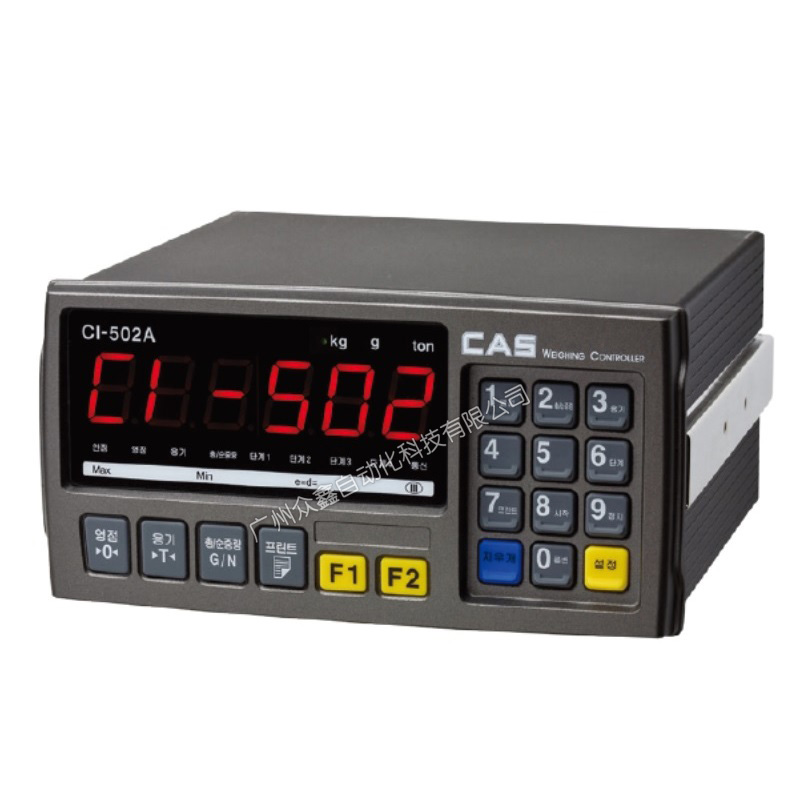

2、CI-502A

(1) 4-speed control

(2) External input: 4 channels; External output: 6 channels

(3) Multiple control modes: limit mode, compactor mode, inspection machine mode

(4) Application: Tensile/Compression Testing Machine, Weighing Platform, Compactor, Filling Machine, Car Weighing Scale, Compactor Weighing Scale, Inspection Machine Weighing Scale, Tank Weighing Scale, Hopper Weighing Scale

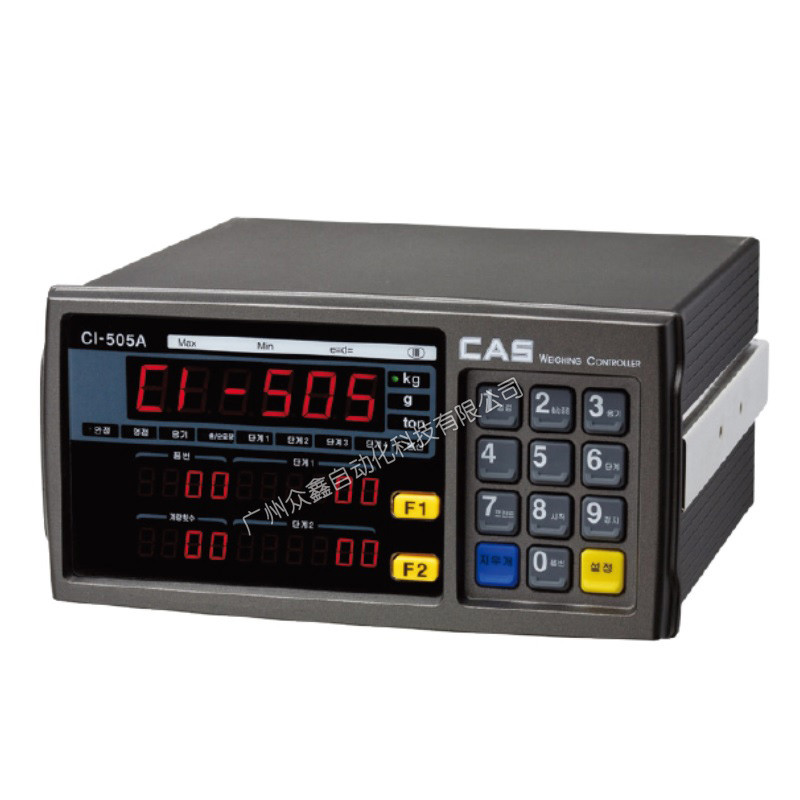

3、CI-505A

(1) 4-stage control

(2) External input: 4 channels; External output: 6 channels

(3) 4 sub display screens: product number, stage 1, stage 2, weighing frequency

(4) Application areas: tensile/compression testing machines, platform scales, bucket scales, filling machines, automotive scales, packaging scales, inspection scales, can scales, hopper scales

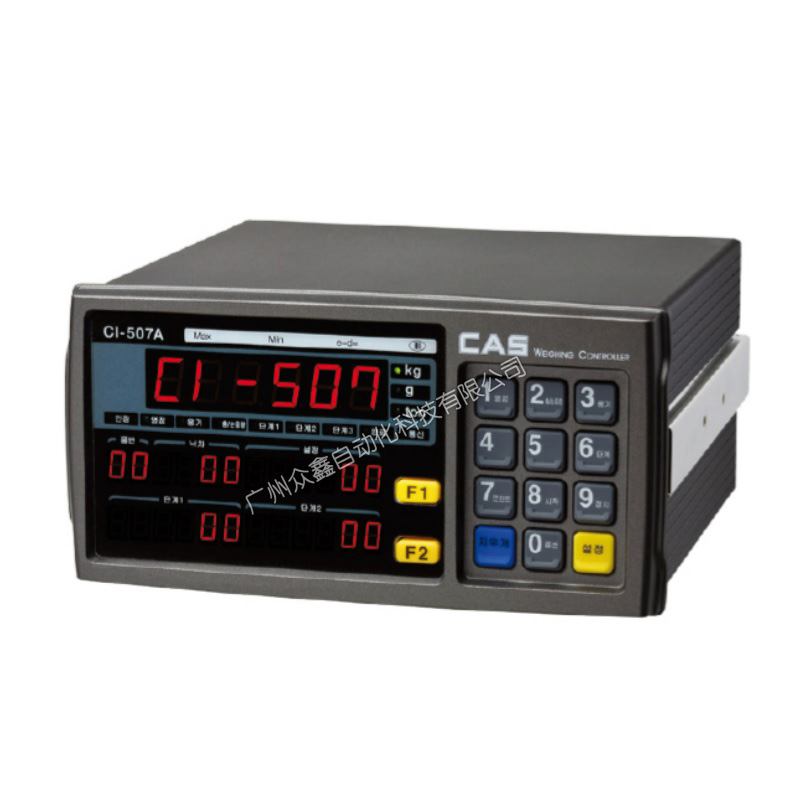

4、CI-507A

(1) 3-stage control (supporting feeding/discharging weighing)

(2) Used for ingredient control

(3) External input: 4 channels; External output: 6 channels

(4) 5 sub display screens: product number, drop, set value, stage 1, stage 2

(5) Application areas: Filling machines, packaging scales, hopper scales (feeding/discharging weighing)

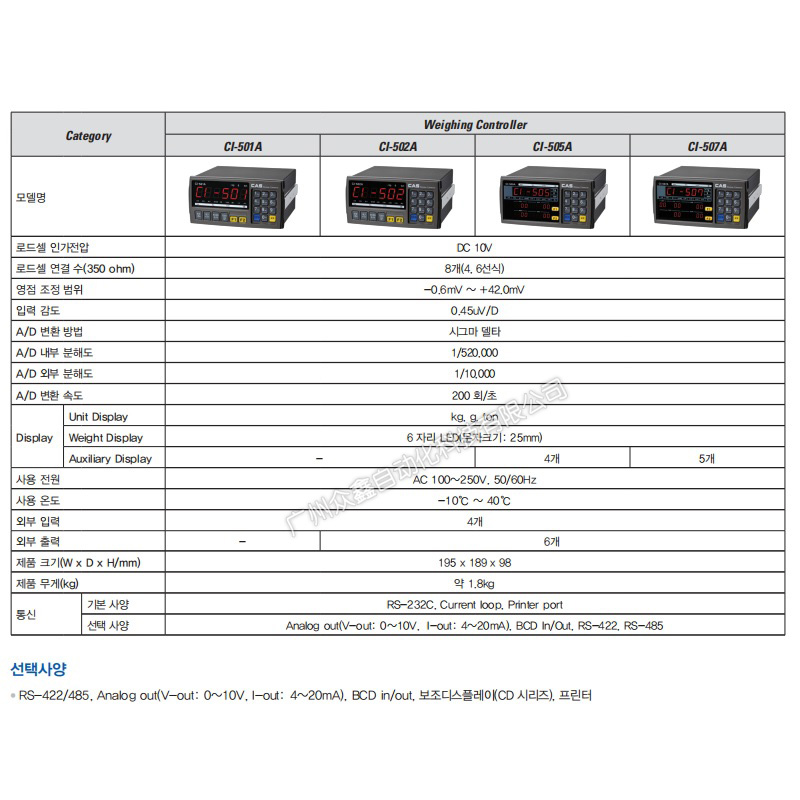

3、 Technical parameters of CI-501A weighing instrument

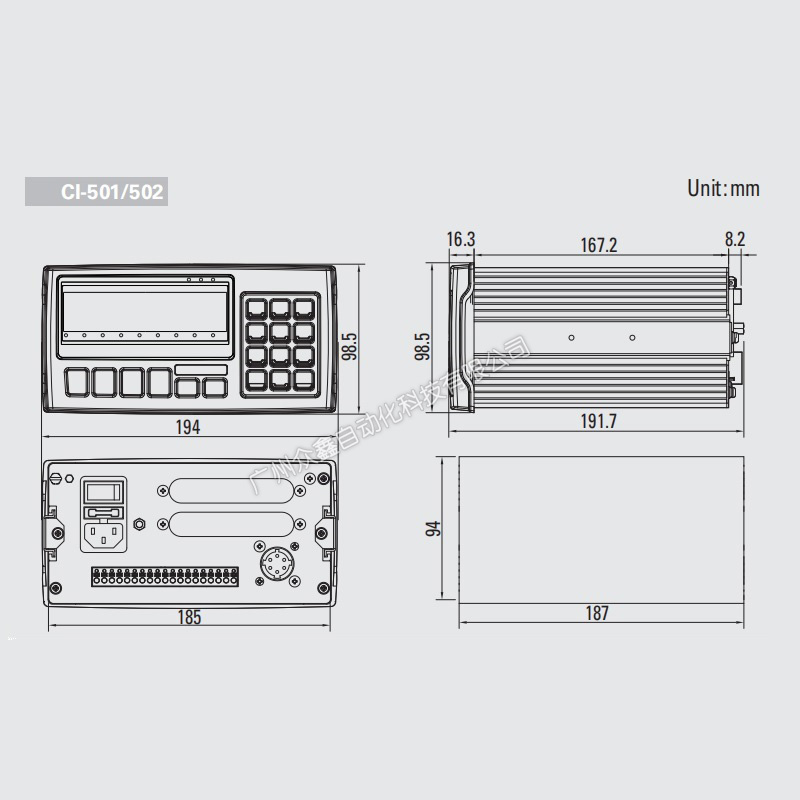

4、 CI-501A Weighing Instrument Product Dimensions

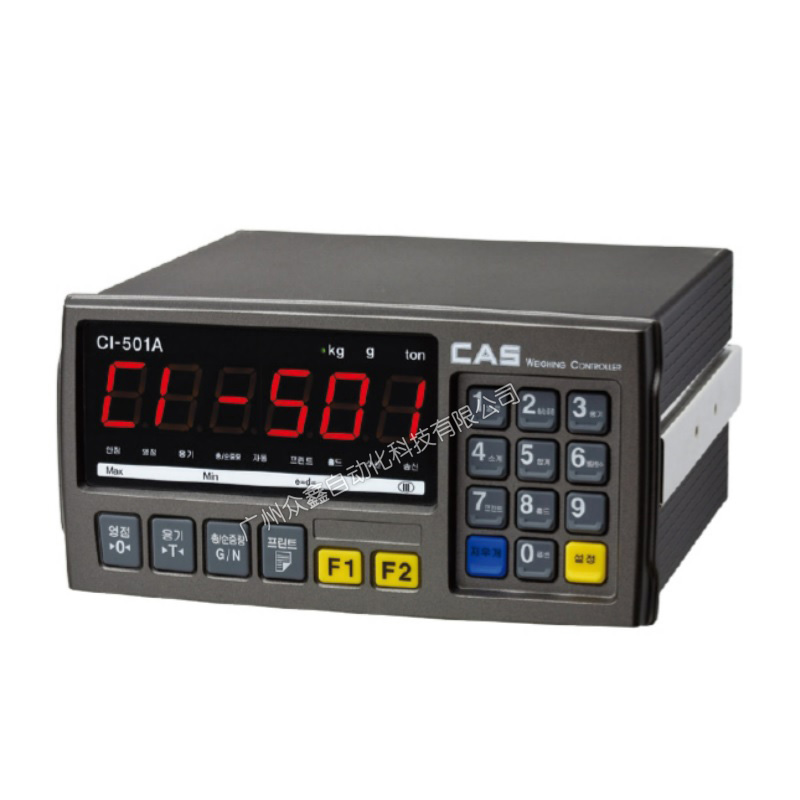

5、 CI-501A Weighing Instrument Product Image
