WTP49 weightlessness metering controller is suitable for the continuous weightlessness batching control industry in the United States

1、 WTP49 Weight Loss Measurement Controller Product Introduction

Product brand:Axel in the United States　ZXSCELL

Product series: WTP49

Product Type: Weight Loss Measurement Controller

Product Features:

(1) 16 channel switch input and output control (6 inputs/10 outputs), with customizable port positions;

(2) The switch quantity testing function facilitates the debugging of the batching scale;

(3) One sensor input and one analog input (where analog input is optional);

(4) Fully automatic control, continuous batching process without manual intervention;

(5) Flexible and diverse control methods, which can be controlled through instrument keyboards, switch values, and serial communication;

(6) Dual PID regulation, two analog outputs (one of which is optional);

(7) Can perform quantitative control, dual serial port function (optional additional board function);

(8) Full panel digital calibration, which can be manually calibrated by inputting millivolts (without weight calibration function);

(9) Multiple digital filtering function, analog output testing and calibration function, PROFIBUS bus function;

(10) It can be widely used in industries such as plastics, food, and chemicals that require continuous weight loss control of ingredients.

2、 Application of WTP49 Weight Loss Measurement Controller Function

1. RS-232 point-to-point serial communication

Continuous output or command output format

Provide fully compatible protocols for users to quickly upgrade

Support remote zeroing and tare weight operation

ESD anti-static interface protection

2. RS-485 multi-point serial communication

The baud rate can be selected between 2400 and 115200bps

Communication response time less than 5ms

As a slave station supporting data collection for the master station

Support MODBUS RTU slave protocol

3. Analog output interface

Supports multiple analog output formats, including 0-5V, 1-5V, 0-10V, 4-20mA, and 0-20mA.

Weight as analog output can be adjusted on the panel without the need for loading

4. Weighing and measuring

Weight display accuracy: 1/100000.

No weight calibration, optional printing content.

Instrument I/O port testing and serial port testing functions.

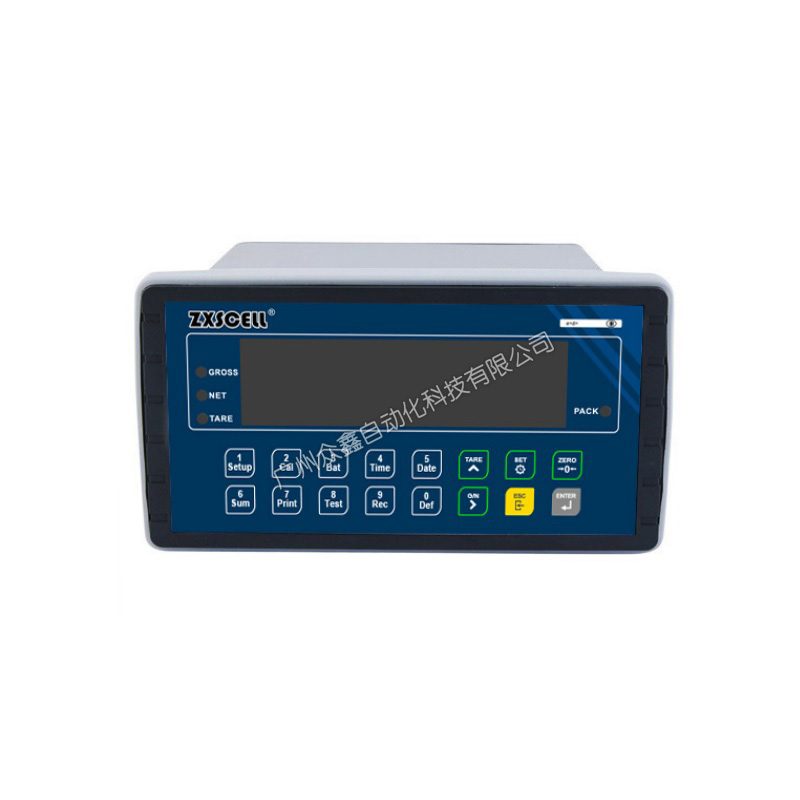

3、 Product image of WTP49 weightlessness metering controller

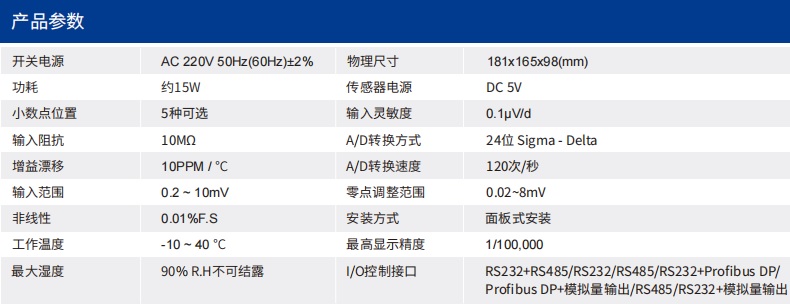

4、 Technical parameters of WTP49 weightlessness metering controller
