WTP46 weighing display controller with embedded anti EMC interference circuit in the American Axel ZXSCELL

1、 WTP46 Weighing Display Controller Product Introduction

Product brand:Axel in the United States　ZXSCELL

Product series: WTP46

Product type: Weighing display controller

Product Features:

(1) Embedded anti EMC interference circuit, strong anti electromagnetic interference capability and stable data

(2) Three calibration methods: weight calibration, calibration parameter modification, sensitivity input calibration (without weight calibration)

(3) RS232 or RS485 can be selected, supporting Modbus RTU communication with multi word continuous read and write function

(4) Support automatic starting of incremental feeding when the actual feeding weight exceeds the tolerance

(5) The number of cycles for ingredient preparation can be set, supporting unlimited cycles for ingredient preparation

(6) Accumulated ingredient count function, actual ingredient weight reading function on the upper computer

(7) Support a series of operations such as communication zeroing, peeling, ingredient start and stop on the upper computer

(8) Relay output modes can be set: sorting, constant value, quantitative, reduction, batching, sorting, peak value, etc

(9) Suitable for applications in industrial sites such as building materials, chemicals, grains, metallurgy, etc

2、 Application of WTP46 Weighing Display Controller Function

1. RS-232 point-to-point serial communication

Continuous output or command output format

Provide fully compatible protocols for users to quickly upgrade

Support remote zeroing and tare weight operation

ESD anti-static interface protection

2. RS-485 multi-point serial communication

The baud rate can be selected between 2400 and 115200bps

Communication response time less than 5ms

As a slave station supporting data collection for the master station

Support MODBUS RTU slave protocol

3. Analog output interface

Supports multiple analog output formats, including 0~10V, 0~5V, 4~20mA, and 0~20mA.

16 bit analog output accuracy: 1/32767

Weight as analog output can be adjusted on the panel without the need for loading

4. Weighing and measuring

Weight display accuracy: 1/10000.

24BIT ∑ - Δ type A/D conversion, maximum A/D pulse count: 1000000.

Support a series of operations such as communication zeroing, peeling, ingredient start and stop on the upper computer.

5. 10/100M Industrial Ethernet Interface

Connect to the upper PC or PLC through a switch

RJ-45 standard interface, including network status indication

Communication speed 10/100M, unlimited data from the slave station

Simple and easy-to-use TCP/UDP protocols and controls

Support dynamic/static network systems

6. Upper and lower limit alarm output

The keyboard can set upper and lower limit alarm values

Alarm point outputs through built-in relay dry contacts

Supporting replenishment function in tank weighing

Some models only support 3 alarm points

7. Pre set point mode quantitative weighing application

The keyboard can set up to 4 preset point values, while some models only support 3 preset points, depending on the hardware selection

The preset point value is output through the built-in relay dry contact

The preset point status is manifested as the comparison result between the preset value and the absolute value of the displayed value (gross weight or net weight)

8. Multi material serial quantitative weighing and batching, and networking

Support fixed value feeding or fixed value discharging control

Four target weight values can be pre-set

Manual relay output mode (up to 13 types)

The relay automatically controls the corresponding valve

When the actual weight of the added material exceeds the tolerance, the automatic jog feeding will be started

The input/output control interface function can be manually set

Accumulated ingredient count function, actual ingredient weight reading function on the upper computer

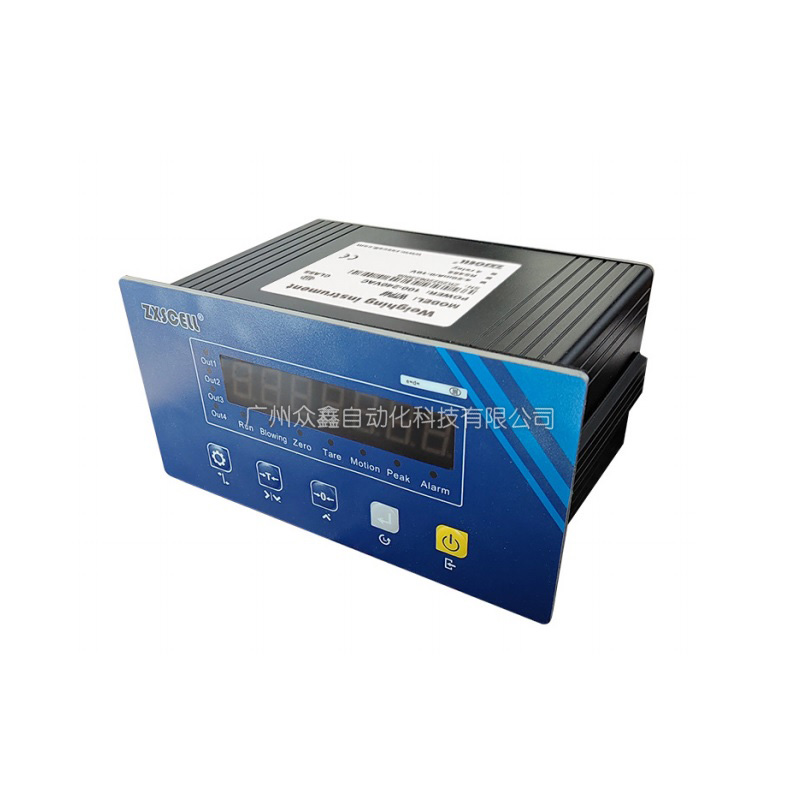

3、 Product image of WTP46 weighing display controller

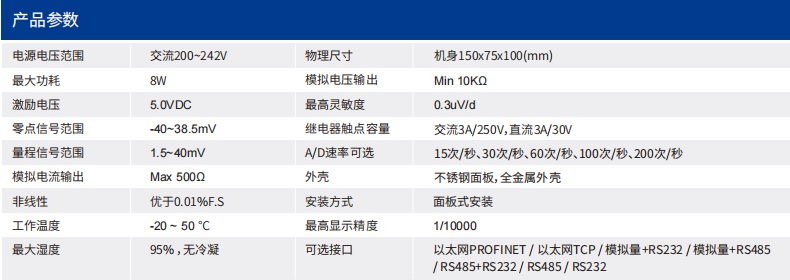

4、 Technical parameters of WTP46 weighing display controller
