The WT weighing display controller in the United States can perform high-precision weight acquisition with the Kessel ZXSCELL

1、 WT Weighing Display Controller Product Introduction

Product brand:Axel in the United States　ZXSCELL

Product series: WT

Product type: Weighing display controller

Product Introduction

The instrument is a device that uses a 32-bit high-speed microcontroller platform, a high-precision 24 bit analog-to-digital converter, and reliable plug-in wiring terminals for electrical connections. It is particularly suitable for high-precision weight collection in various industrial environments. Real time fieldbus communication with devices such as PC, PLC, DCS, etc. can be achieved. Widely used in metallurgy, chemical industry, building materials, coatings, grain and feed industries.

Product Features:

(1) Aluminum alloy embedded shell;

(2) 6-digit reliable and durable LED digital display with a font height of 20mm;

(3) Dual serial ports, supporting MODBUS RTU protocol;

(4) 5 relay outputs, 3 inputs;

(5) Optional Ethernet interface, supporting MODBUS TCP protocol (M);

(6) Optional Profibus DP interface (P);

(7) Optional analog output interface

2、 Application of WT Weighing Display Controller Function

1. RS-232 point-to-point serial communication

Continuous output or command output format

Provide fully compatible protocols for users to quickly upgrade

Support remote zeroing and tare weight operation

ESD anti-static interface protection

2. RS-485 multi-point serial communication

The baud rate can be selected between 2400 and 115200bps

Communication response time less than 5ms

As a slave station supporting data collection for the master station

Support MODBUS RTU slave protocol

3. Analog output interface

Supports multiple analog output formats, including 0~10V, 0~5V, 4~20mA, and 0~20mA.

16 bit analog output accuracy: 1/32767

Weight as analog output can be adjusted on the panel without the need for loading

4. Weighing and measuring

Weight display accuracy: selectable from 100 to 100000.

Multiple data filtering options are available to meet the needs of different dynamic/static applications.

Keyboard or remote reset, tare weight operation and calibration.

Maintain peak and valley values.

5. 10/100M Industrial Ethernet Interface

Connect to the upper PC or PLC through a switch

RJ-45 standard interface, including network status indication

Communication speed 10/100M, unlimited data from the slave station

Simple and easy-to-use TCP/UDP protocols and controls

Support dynamic/static network systems

6. Upper and lower limit alarm output

The keyboard can set upper and lower limit alarm values

Alarm point outputs through built-in relay dry contacts

Supporting replenishment function in tank weighing

Some models only support 3 alarm points

7. Pre set point mode quantitative weighing application

The keyboard can set up to 4 preset point values, while some models only support 3 preset points, depending on the hardware selection

The preset point value is output through the built-in relay dry contact

The preset point status is manifested as the comparison result between the preset value and the absolute value of the displayed value (gross weight or net weight)

8. Multi material serial quantitative weighing and batching, and networking

Support fixed value feeding or fixed value discharging control

The keyboard can preset four target weight values

The relay automatically controls the corresponding valve

Automatic correction of feeding accuracy

The input/output control interface function can be manually set

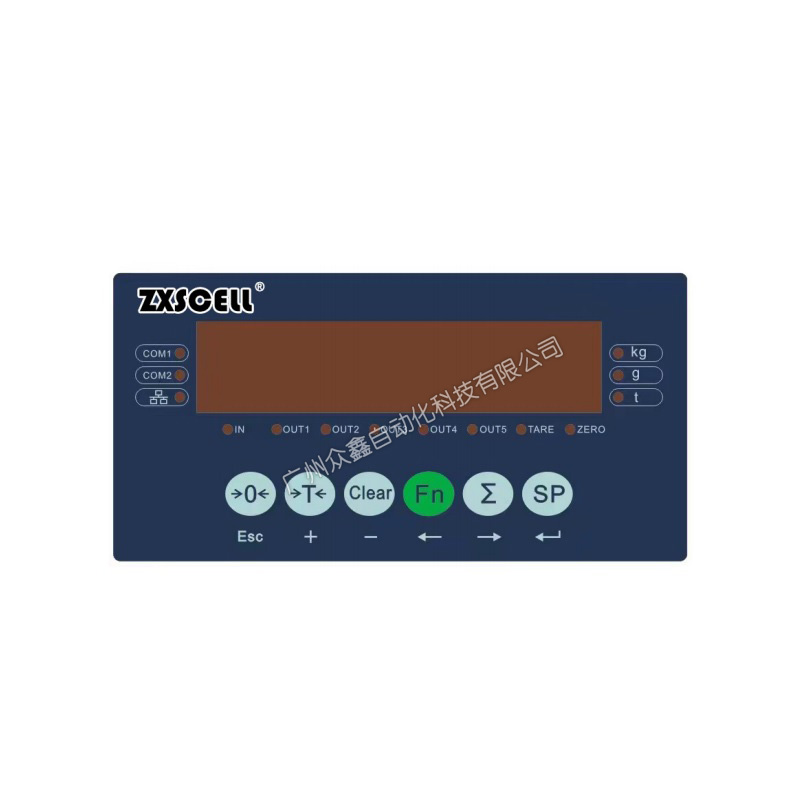

3、 Product image of WT weighing display controller

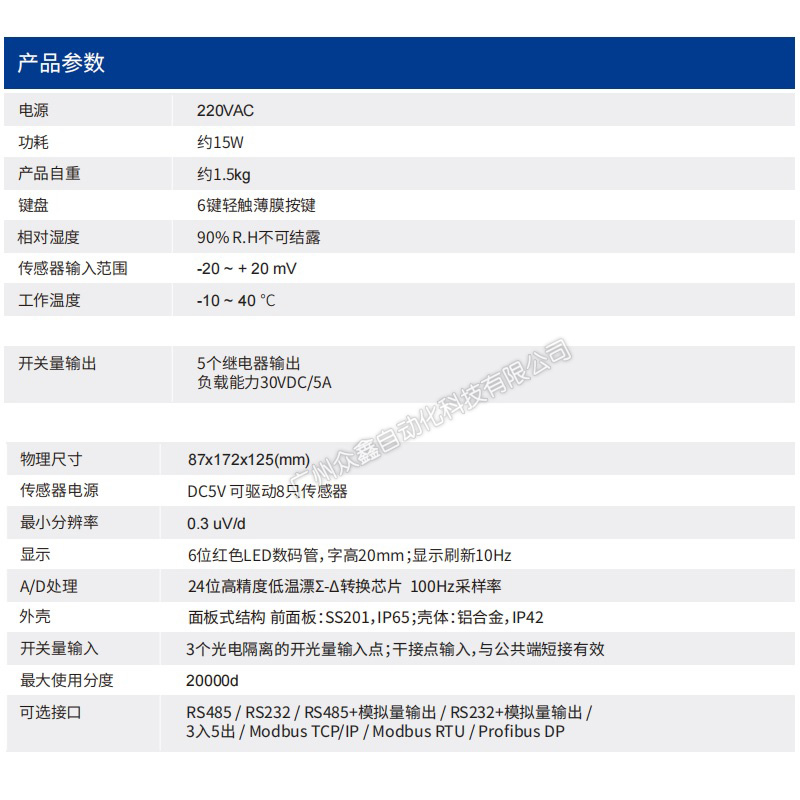

4、 Technical parameters of WT weighing display controller
