1、 Introduction to Mettler Toledo T57000H1000AB0J0J1 Weighing Instrument
Product Series: IND570
Product model: T57000H1000AB0J0J1
Installation method: dustproof type
Product Introduction:
IND570 is a technologically advanced and powerful universal weighing terminal developed by Mettler Toledo. It can connect widely used strain gauge sensors and high-precision sensors using electromagnetic force compensation technology, with numerous communication interface methods and digital I/O control ports with PC or PLC. At the same time, the IND570 has panel, desktop, and wall mounting options. Through various combinations, the IND570 can almost become the most perfect weighing solution in many industrial application fields. These application areas include: basic weighing, general process control, formulation, weight inspection, vehicle weighing, filling and blending.
Utilizing 366Hz ultra fast A/D conversion rate, TraxDSP patented digital filtering technology, and refresh rate at 50Hz input/output points. The IND570 can easily achieve precise weighing data from milligrams to tons.
The superiority of IND570 in filling and batching applications lies in its ability to work in manual, semi-automatic, and fully automatic modes, combined with advanced control algorithms to achieve fast and accurate weighing control of materials. IND570 provides customers with more cost-effective solutions. It can control up to 20 digital output points and complete all control of fixed value weighing without the need for PLC or other external I/O devices. It can reduce intermediate links, improve the overall reliability, control accuracy, and execution efficiency of the control system.
To achieve more advanced fixed value weighing, the Fill-570 application software has added a fixed value weighing process. Users do not need complex and expensive programming to quickly configure their own filling programs or create mixed ingredient applications for up to 6 materials.
Whether exchanging weight data with PLC or using InSite ™ In terms of providing simpler terminal configuration for PC tools, the IND570 offers multiple solutions to improve application level. The IND570 standard version integrates USB interface and RS232/422/485 serial interface, and also provides optional slots for supporting PLC, Ethernet TCP/IP, and digital I/O for selection.

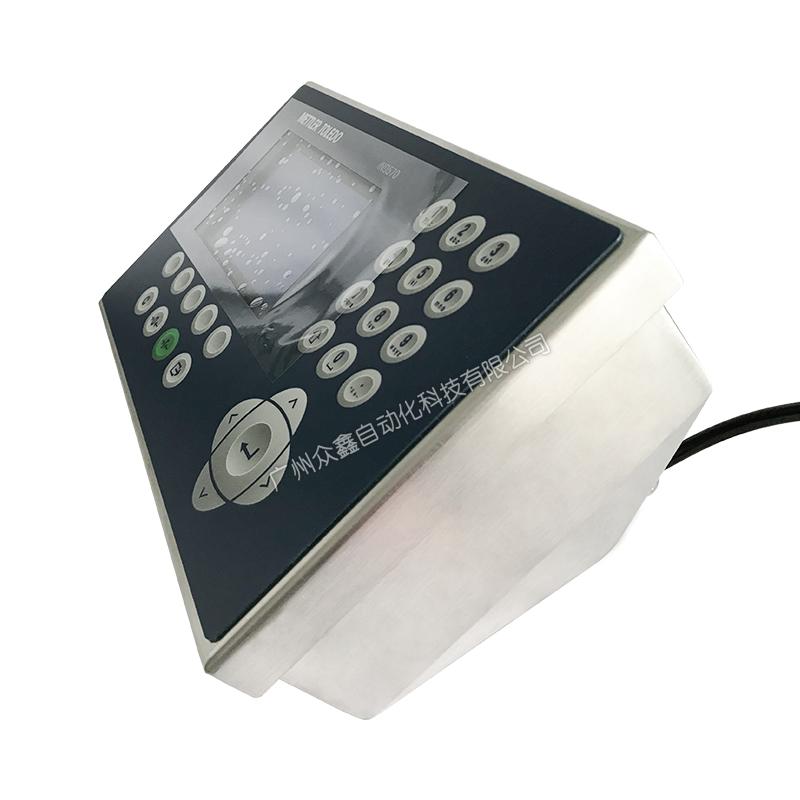

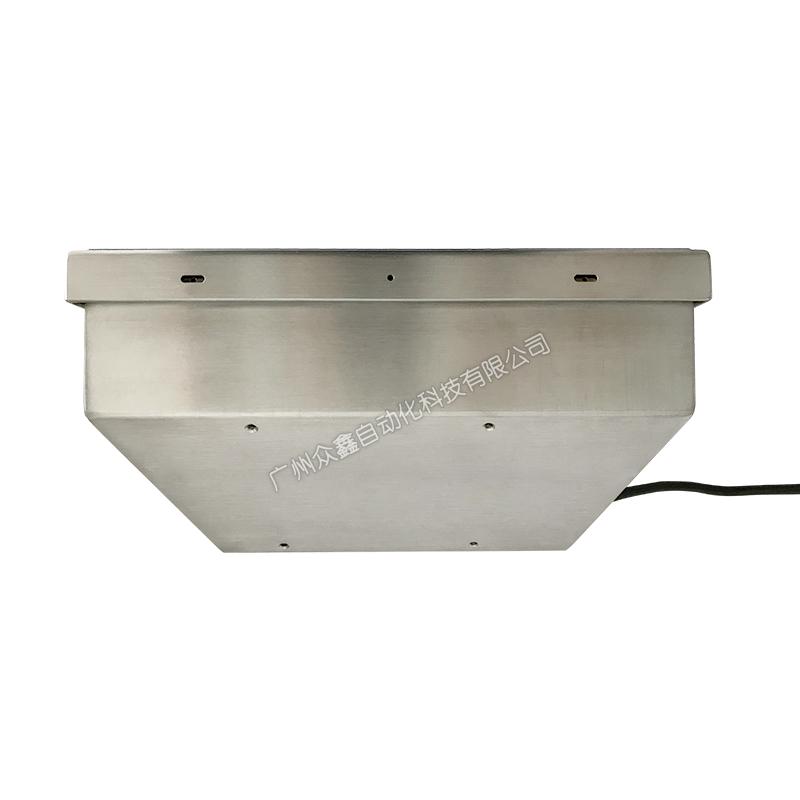

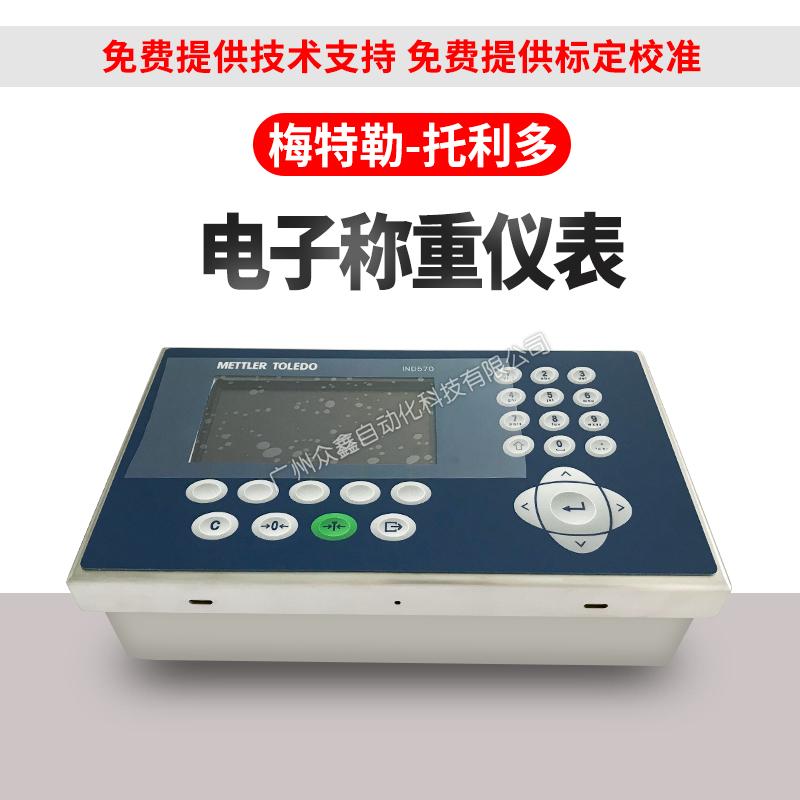

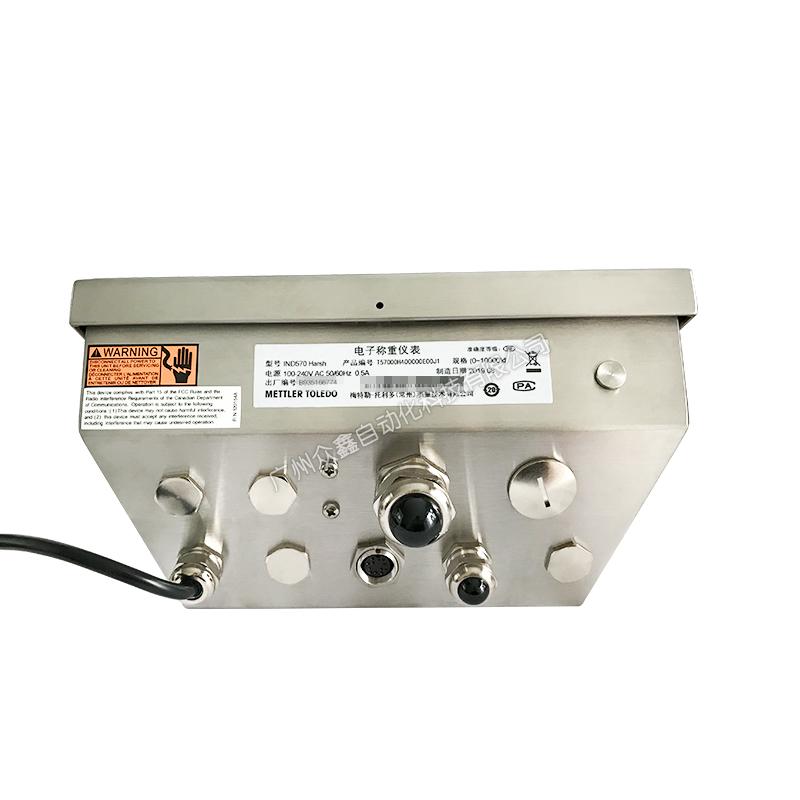

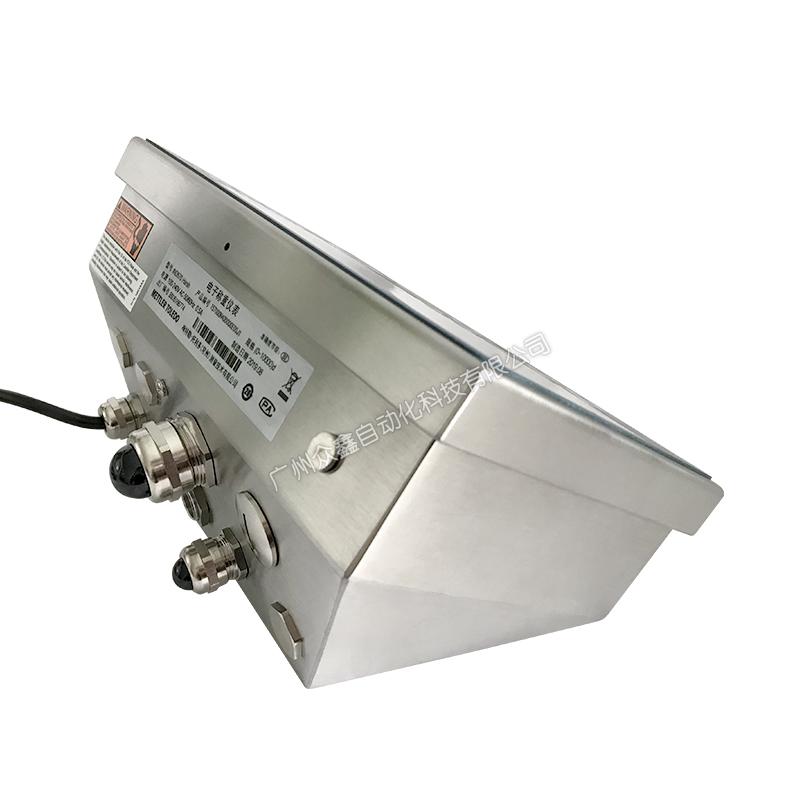

2、 Actual photo of Mettler Toledo IND570 weighing instrument
3、 Mettler Toledo IND570 weighing instrument related models
Panel style:
T57000P10000B0J001
T57000P1000AB0D001
T57000P1000AB0J001
Dustproof type:
T57000H10000B0J0J1
T57000H1000AB0D0J1
T57000H1000AB0J0J1
4、 Mettler Toledo IND570 Weighing Instrument Product Features
1. Basic weighing terminal (IND570 model) for use in safe areas
2. Panel or desktop/wall/column installation structure
3. Used to connect the weighing platform:
(1) Single analog sensor scale platform
(2) Can connect up to 12 350 ohm analog sensors
(3) Single high-precision IDNet scale platform
4. Multi range and multi degree weighing
5. 256 x 128 dot matrix vacuum fluorescent tube graphic display screen, weighing display word height of 25mm
6. Display, receive, and transmit information in multiple languages
7. USB host port, used to connect external keyboards, USB storage devices, or barcode scanners
8. A serial port that can be used for asynchronous, bidirectional communication, and data printing
9. Can be used as a remote display and simple control for another Mettler Toledo weighing terminal
10. Real time clock
11. Basic weighing functions, including zeroing, peeling, and printing
12. Heavy inspection operation mode
13. Material transfer (material filling) operation mode
14. Graphic display function, including SmartTrac ™、 State of speed and discrete input/output points
15. ID pattern for transaction sequencing and data collection with guidance
16. Tracking of material transfer rate
17. Comparator - simple preset point function, used to compare weight or speed with absolute target values or ranges
18. Tare weight list: used to store 99 tare weight records,
19. Target value list: used to store 200 target value records
20. Switching between three different weight units, including custom units
21. Alibi storage, capable of storing up to 100000 transaction records
22. Total and subtotal of weighing weight
23. Ten customizable print templates
24. Report printing
25. TraxDSP digital filtering technology (for analog sensors)
26. Real time monitoring and recording of TraxEMT's operational status
27. CalFree ™ weight free calibration technology
28. Utilize the Test Manager GWP ® Routine verification of system accuracy for good weighing habits
29. MinWeight for eliminating measurement uncertainty ™
30. Supports the following communication options:
(1) Ethernet TCP/IP
(2) Additional serial port
(3) Discrete input-output interface based on relays
(4) Analog output
(5) ControlNet interface
(6) DeviceNet ™ Interface
(7) EtherNet/IP interface
(8) Modbus TCP interface
(9) PROFIBUS ® DP interface
31. Support optional application software packages: Fill-570, Drive-570, COM-570
32. Support TaskExpert ™ Custom application development software
5、 Mettler Toledo IND570 Weighing Instrument Product Dimensions
6、 Technical parameters of Mettler Toledo IND570 weighing instrument
