1、 Product Introduction of Korean Kaishi LCT-1420D Weighing Display Controller
Product Series: LCT
Product Introduction: LCT-1420D is a cost-effective product that can be widely used in industrial sites and industrial automation fields for force and weight transmission.
2、 Korean Kaishi LCT-1420D Weighing Display Controller Product Parameters
1. 24VDC power input, maximum power consumption of the whole machine not exceeding 3W
2. 1-channel sensor interface: two sampling speeds can be configured, and five digital filters can be selected for each sampling speed
3. Communication interface
1 RS232 channel:
① Continuous output mode, 20-100Hz weight continuous output
② MODBUS RTU communication protocol
③ Analog output, 4-20mA, 0-10V, 0-5V analog output can be configured
4. Input/output characteristics:
Input load: 350 ohm impedance bridge sensors: 1-4
AD sampling rate: 50/100Hz
Input voltage: 24VDC
Output load: Voltage output: ≥ 10K Ω Current output: ≤ 500 Ω
Output linearity:>0.01% (0.1 ‰)
Output ripple: ≤ 2mVp-p
Output modes: 4-20mA, 0-5V, 0-10V
Whole machine temperature drift: ≤ 80PPM/℃ (0-40 ℃) ≤ 150PPM/℃ (-20~60 ℃)
Whole machine power consumption: ≤ 12mA@1 A 350 ohm sensor with a 24V supply voltage
Comprehensive accuracy: better than 0.1% (@ 30 ℃ temperature difference)

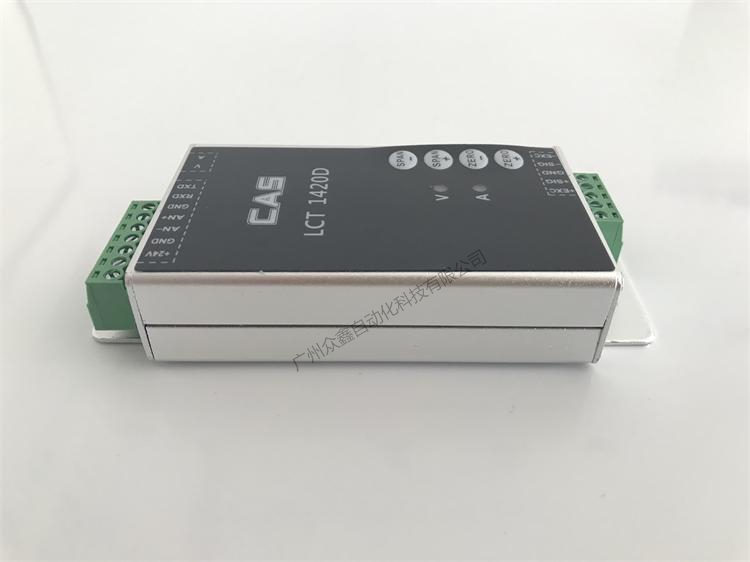

3、 Actual photo of Korean Kaishi LCT-1420D weighing display controller
4、 Korean Kaishi LCT-1420D weighing display controller panel and button instructions
5、 Dimensions of the Korean Kaishi LCT-1420D Weighing Display Controller Product
