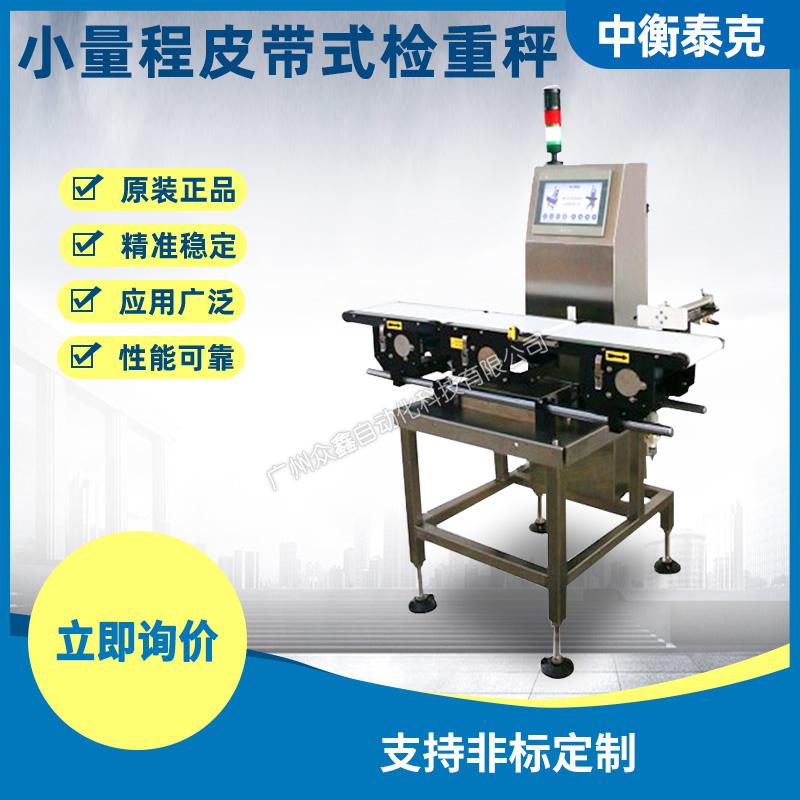

0.01kg-2kg small packaging belt type weighing scale - customizable - Zhongheng Taike

Product parameters of small-scale belt type weighing scale (maximum weighing 2kg)

The ZH-2000 series online small package weighing scale is designed for high-precision dynamic weighing, derived from advanced high-speed sampling technology and dynamic filtering models, and perfectly meets the customer's high-precision requirements for the product. The ZH-30 series online small package weighing scale can be easily integrated into existing production lines to weigh and measure each product, eliminate non-conforming products, and ensure 100% qualified product quality.

. Standard configuration

1. Dynamic weighing sensor

2. 8-inch industrial touch screen

3. Real time statistical curves facilitate monitoring and analysis

4. Storage of multiple product formulas

5. Real time weighing data storage

6. Three weight classification signals

7. Automatic or manual zero setting

8. Variable frequency adjustable conveyor belt speed

9. Standard version protection level IP54

10. 220VAC power supply

11. Warning light

12. High quality carbon steel spray frame and electrical cabinet

. Main technical parameters

Weighing capacity: 0.01-2kg

Dynamic accuracy: W ± lg

Graduation value: 1g

Production capacity: 100 PCS/minute

Belt length: 200/400mm

Belt width: 200mm

Production line height: 700 ± 30mm

Air source pressure: 0.6~0.8MPa

Power supply: 220V 50Hz

Power: 1KW

Host size: 1200 * 600 * 1200mm

Overall weight: approximately 100kg

Rejection device: push rod

Protection level: IP65
