High precision belt sorting machine - paddle sorting - Zhongheng Taike

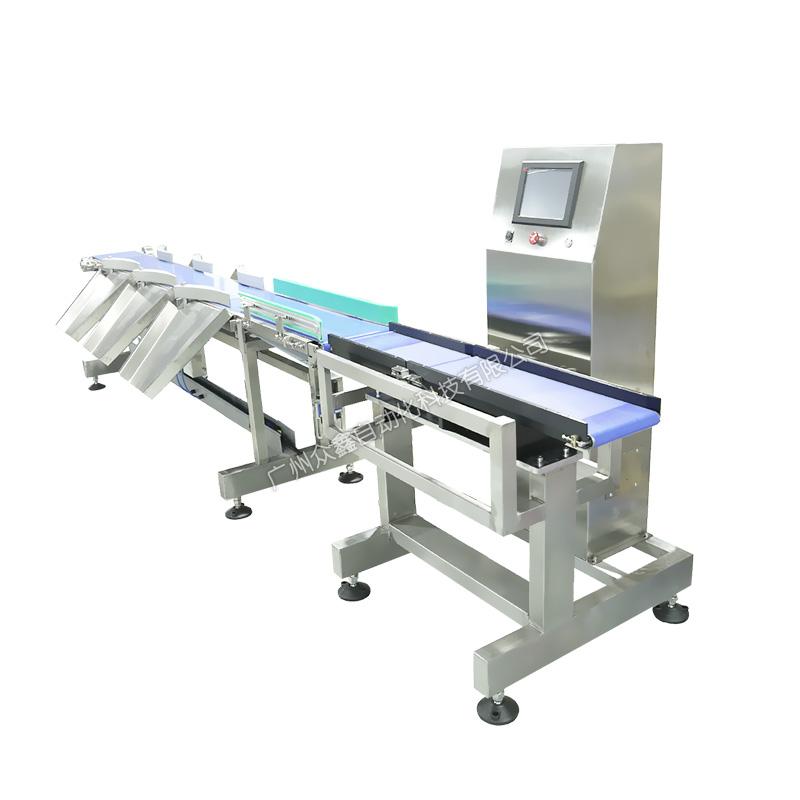

ZH-FJ2 Belt Sorter

. Product Introduction

1. Using high-precision and fast sampling sensors

2. Equipment sealed and welded, corrosion-resistant and easy to clean

3. Multi stage weight sorting, feedback, etc

4. Simple operation and efficient replacement of manual sorting

5. Multiple data storage and output methods

6. The swing arm is made of PE polymer material, which is safe, hygienic, and wear-resistant

7. This equipment is widely used for sorting seafood, aquatic products, poultry, fruits and vegetables, medicinal materials, industrial products, etc.

. Product parameters

Model: ZH-FJ2

Weighing range: 30-5000g

Weighing accuracy: ± 0.3g (customizable)

Maximum linear speed: 62m/min

Maximum speed: 100 times/min

Belt size: 450 (L) * 220 (W) mm

Operation interface: 7-inch touch screen

Power requirement: 220V/400W/50/60Hz/2A

Exclusion method: Blowing/Pulling/Pushing/Sliding

Product size: 2620 (L) * 1229 (H) * 876 (W) mm (customizable)

Packaging weight: 250kg

Material: Carbon steel spray frame and electrical cabinet (customizable)

Sensor: American ZXSCELL weighing sensor (customizable)

Sorting level: can support up to 24 weight levels (customizable)

Protection level: IP30/IP54/IP66
