1、 EZ-Mount-11.2lb Weighing Module Product Introduction
Product Series: EZ Mount
Product type: Weighing module
Product range: 11.2lb
Product Introduction
(1) The EZ Mount weighing module is designed to maximize accuracy while highly resisting the adverse effects of overload and lateral load forces.
(2) Each module consists of a curved beam sensor, encapsulated in a sturdy stainless steel mounting system.
The module is specifically designed for low capacity process containers, meeting IP68 and NEMA 6 immersion requirements, and is mechanically resistant to high overload and lateral load forces. The built-in load adaptation technology can automatically compensate for the thermal expansion and contraction of the container.
(3) The sturdy protective plate located above the cable entry gland can prevent damage caused by equipment debris and traffic.
(4) The simplified bolt pattern accelerates the renovation and installation of new containers. The EZ Mount module can be fully installed without a load beam, reducing the risk of weight sensor failure. After installation, simply slide the crossbeam into place and adjust the overload safety stop.
(5) In areas that are frequently flushed, the grounding strip can be removed (after installation) without affecting module performance.
Product Features:
(1) Capacity range: 11.2, 22, 44, 110, 220, 440, 551, and 1.1k lb (5, 10, 20, 50, 100, 200, 250, and 500 kg)
(2) The sealing level of the load beam reaches IP68
(3) Advanced stainless steel structure
(4) Overload and enhanced safety protection
(5) Adaptation process dynamics and thermal expansion
Product Application:
(1) Tank weighing
(2) Funnel scale conversion
(3) Liquid level system measurement
(4) Weightlessness feeder
2、 EZ Mount weighing module related range
EZ-Mount-11.2lb
EZ-Mount-22lb
EZ-Mount-44lb
EZ-Mount-110lb
EZ-Mount-220lb
EZ-Mount-440lb
EZ-Mount-551lb
EZ-Mount-1.1Klb

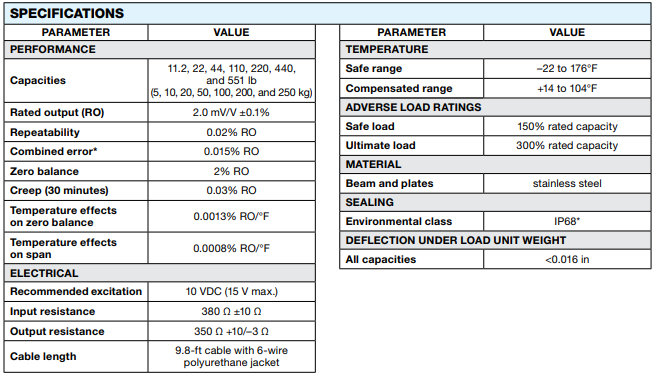

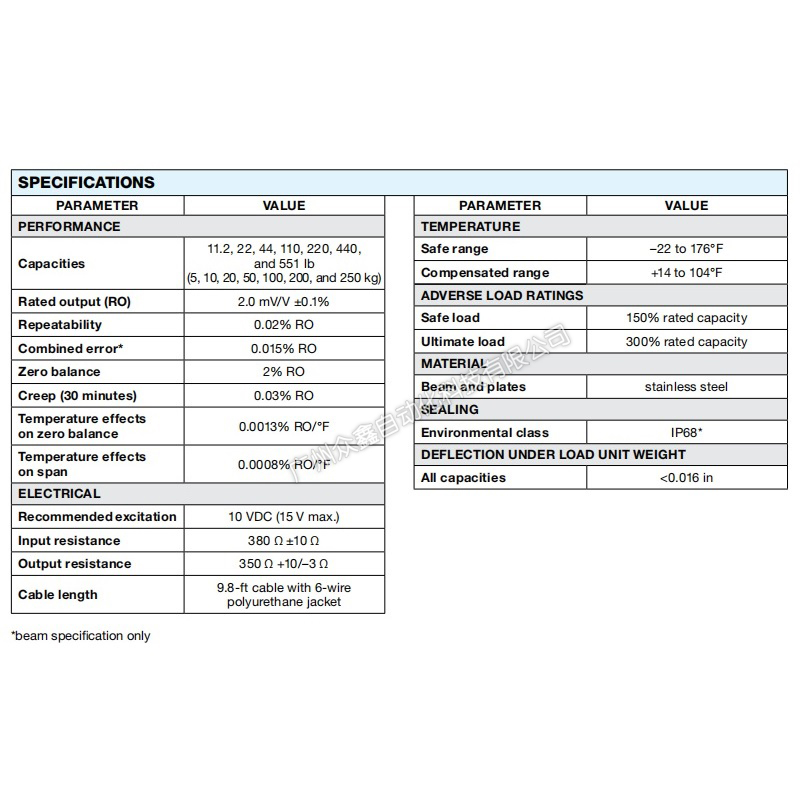

3、 EZ-Mount-11.2lb Weighing Module Technical Parameters

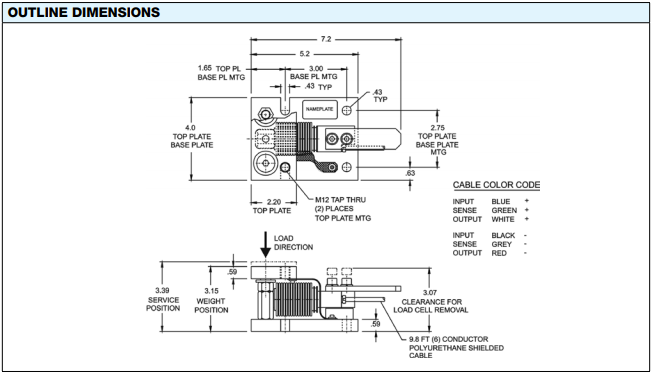

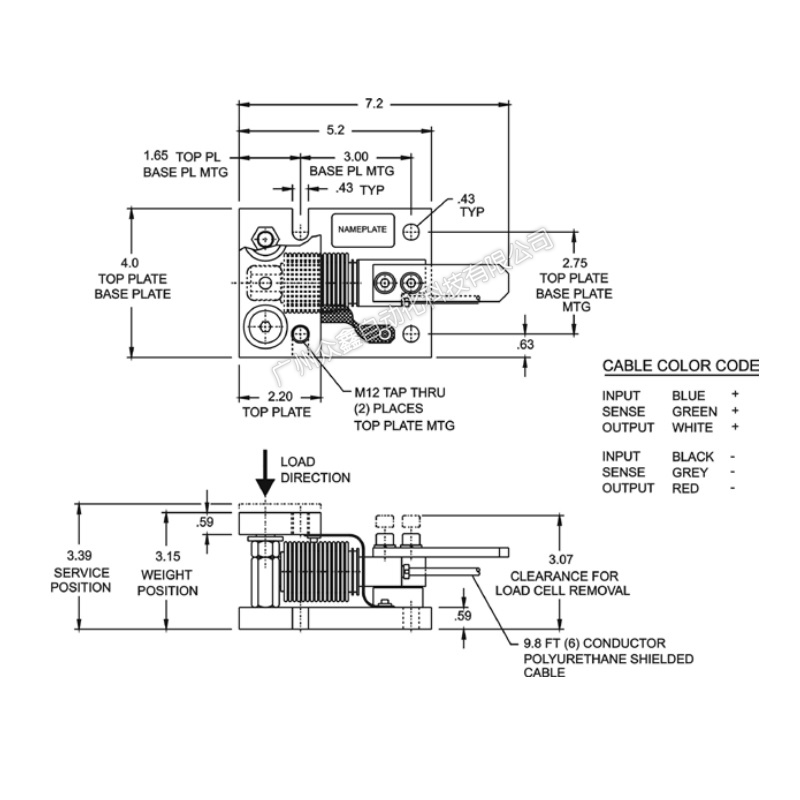

4、 EZ-Mount-11.2lb weighing module product size

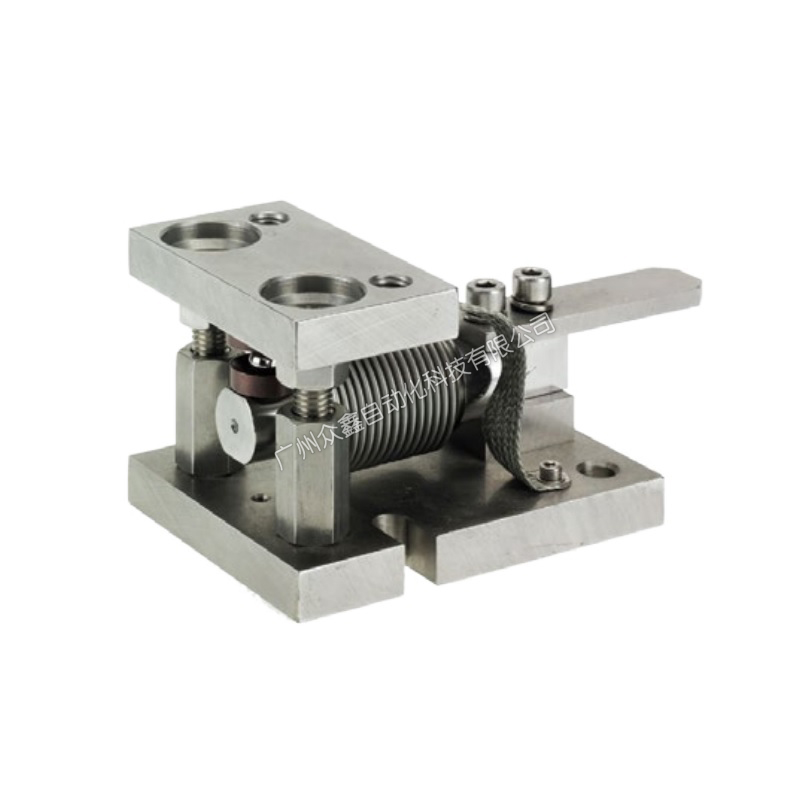

5、 EZ-Mount-11.2lb weighing module product image
