LCD weighing sensor with a range of 1T to 20T, available from the American brand Axel

1、 Introduction to LCD Weighing Sensor Products from the American Zhongkesel Brand

Product brand:Axel in the United States ZXSCELL

Product Series: LCD

Product type:Spoke type weighing sensor

Product Range: 1T, 2T, 3T, 5T, 10T, 20T

Product Introduction

(1) The LCD model belongs to the spoke type sensor, suitable for large range measurement, with a measurement range from 1T to 20T and an accuracy level of 0.05% (1-5t)/0.2% (10-20t)

(2) The material of the LCD sensor is alloy steel, with nickel plating on the surface to improve the sensor's corrosion resistance, and the protection level reaches IP67.

Product Features:

(1) Spoke type sensor

(2) Alloy steel material, surface nickel plating

(3) Pull pressure sensor

(4) Easy and fast installation

Product application:

(1) Material testing machine

(2) Automobile scale

(3) Large hopper scale

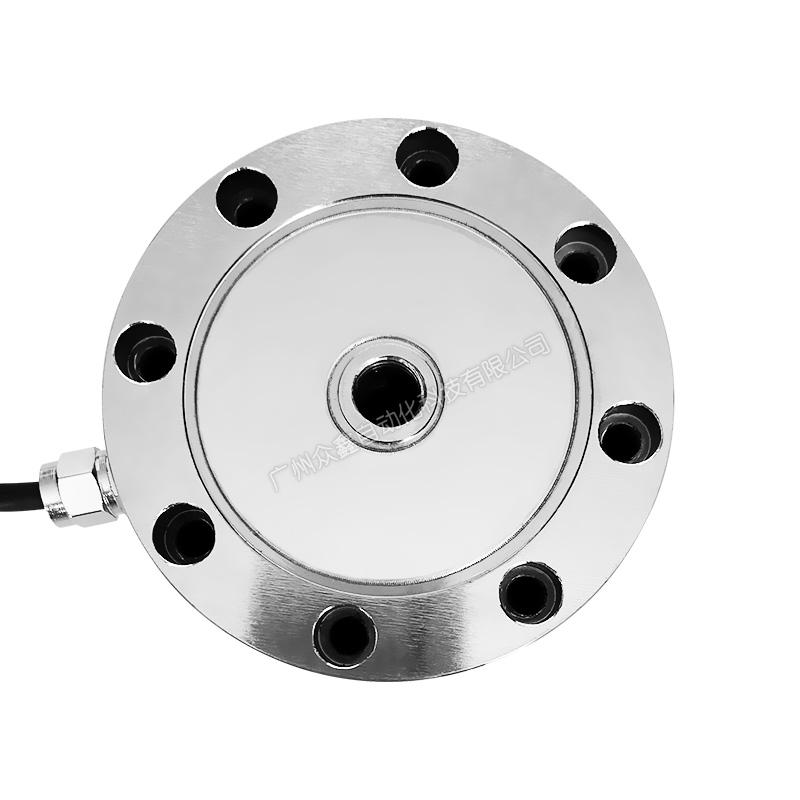

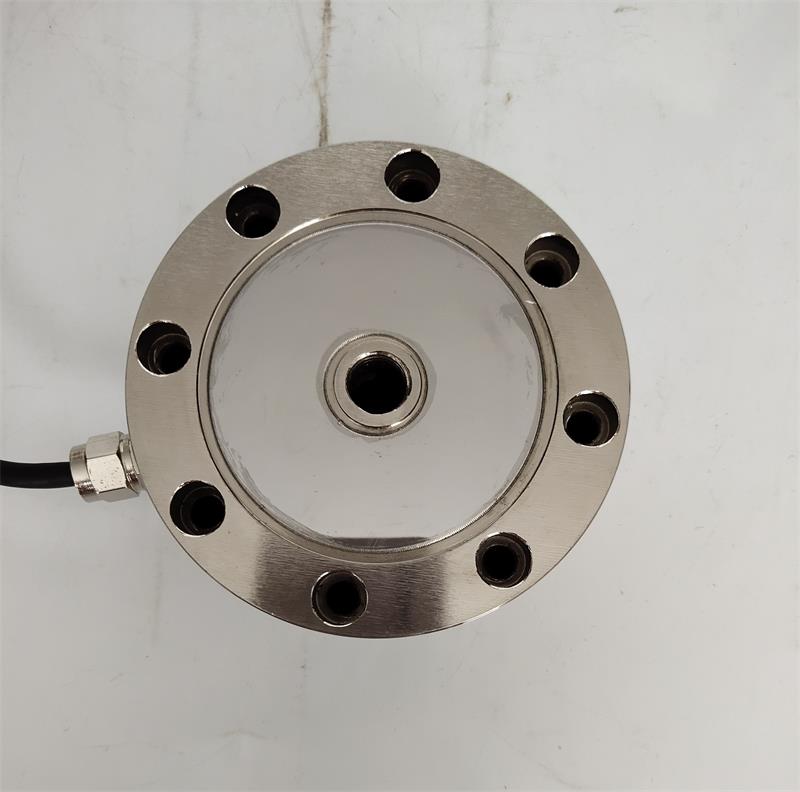

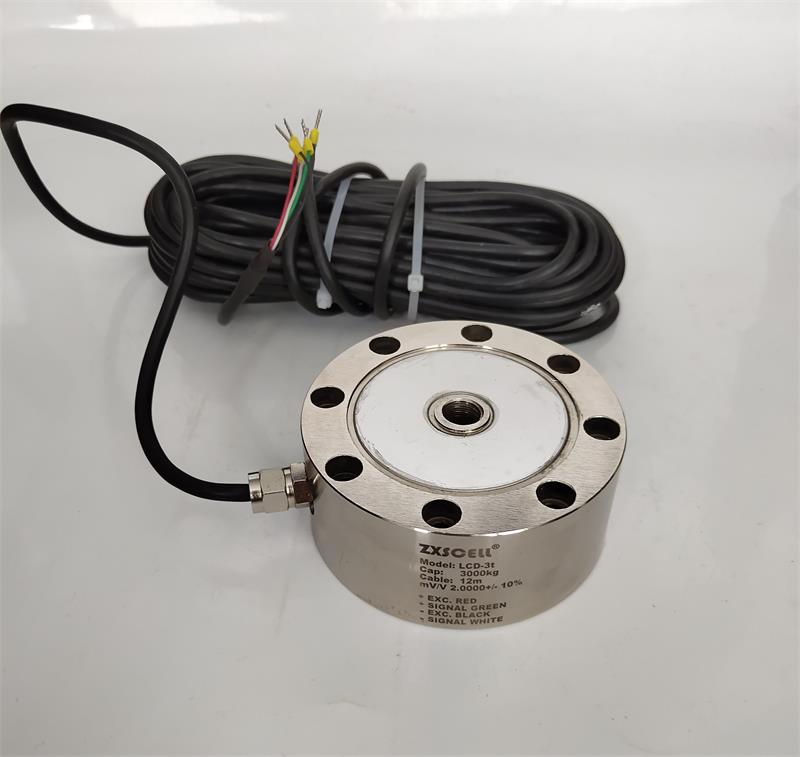

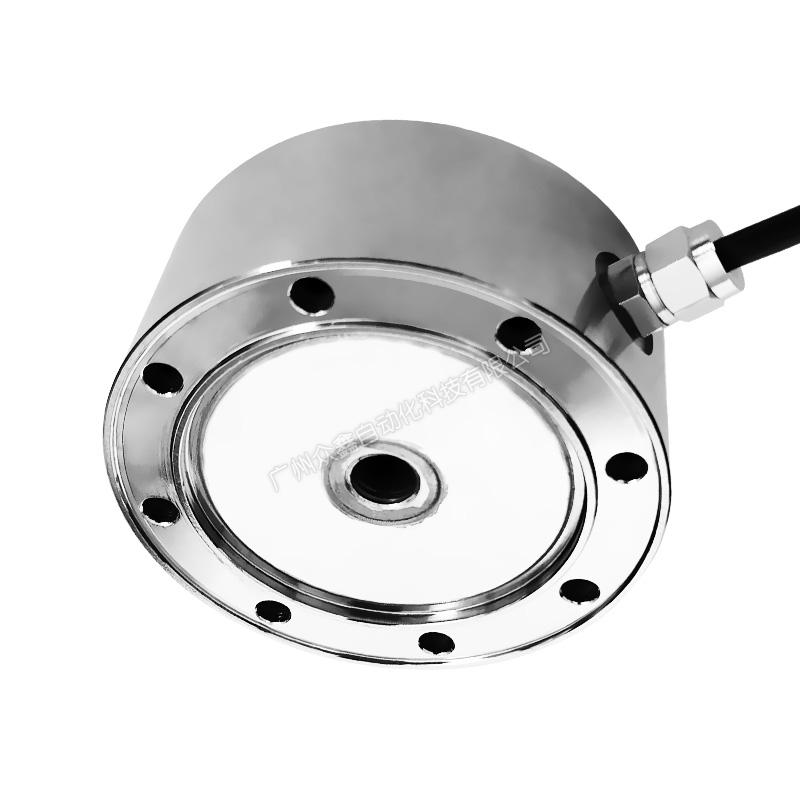

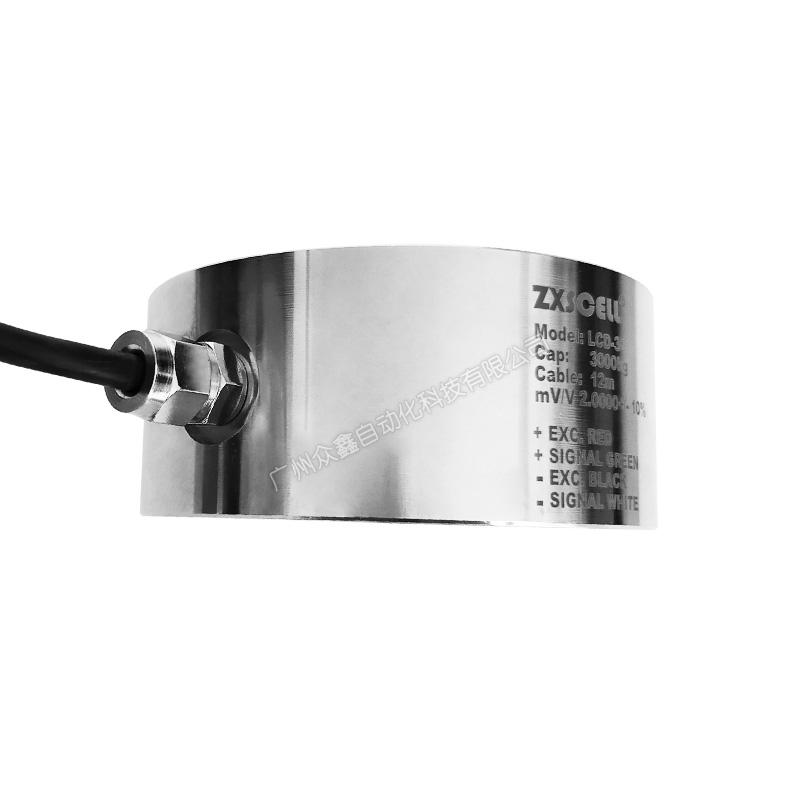

2、 Image of the LCD weighing sensor from the American Zhongkesel brand

3、 LCD weighing sensor product model

LCD-1t

LCD-2t

LCD-3t

LCD-5t

LCD-10t

LCD-20t

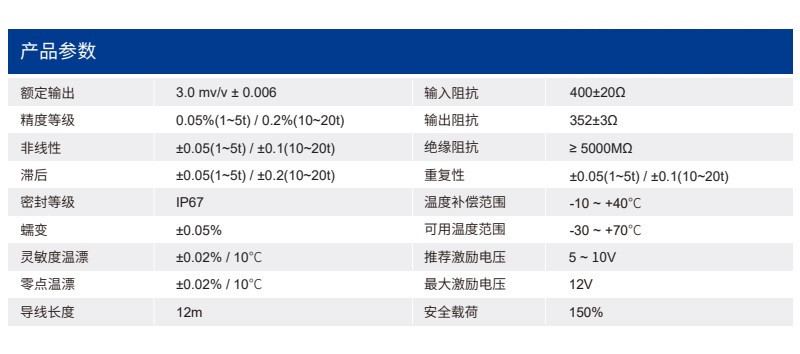

4、 Technical parameters of LCD weighing sensor
