1、 GF-11A-10T Weighing Sensor Product Introduction
Product Series: GF-11A
Product type: Cross beam weighing sensor
Product range: 10T
Product Features:
(1) Has strong resistance to four-way force and overload protection capability
(2) After good sealing, it can adapt to various harsh working environments
(3) Easy installation and good interchangeability
(4) Easy to use and convenient to install
Application scope:
(1) If equipped with a three steel ball indenter, it is more suitable for manufacturing various types of car scales, track scales, material tank scales, etc
(2) The sensor and the square bottom plate below are fixed with bolts, which is particularly suitable for weighing instruments without weight calibration.
2、 All models of GF-11A weighing sensors
GF-11A-10t
GF-11A-40t
GF-11A-50t
GF-11A-70t
GF-11A-100t
GF-11A-150t
GF-11A-200t

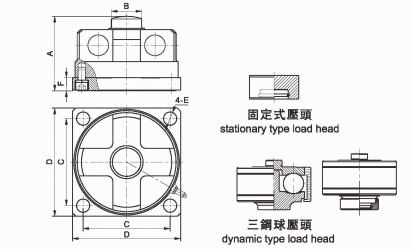

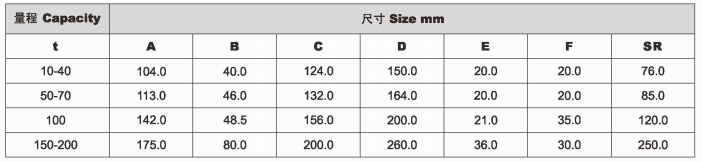

3、 GF-11A-10T weighing sensor product size
4、 Technical parameters of GF-11A-10T weighing sensor

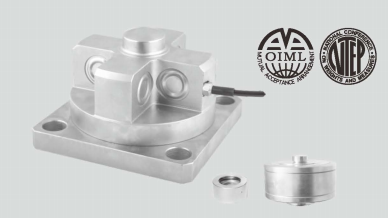

5、 GF-11A-10T weighing sensor image
