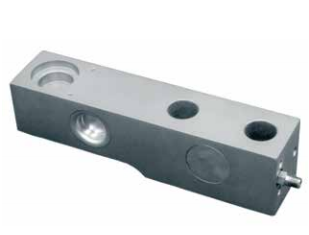

Guangzhou Zhongxin AutomationTechnology Co., Ltd】Professional supply of Mettler Toledo 0743-13.6KG weighing sensors, single point sensors 0743-9.07KG~0743-20T_ Mettler Toledo weighing sensors guarantee fast delivery time, 100% original import, and strive to become the top brand of sensor sales in China. Mettler Toledo 0743 seriesWeighing sensorRelated models:0743-9.07T，0743-13.6T，0743-20T
Product brand:Mettler Toledo weighing sensor Product features: High comprehensive accuracy Self stable structure with good long-term stability Using high-quality stainless steel and laser welding Can provide explosion-proof sensors, explosion-proof label: Ex ia IIC T4~T6 Ga; EX iaD T85~T135 Suitable for above ground weighing, chemical, food, pharmaceutical and other industries ingredient weighing systems
Mettler Toledo 0743-13.6T Weighing Sensor Technical Data
Expand reading
The origin of single point weighing sensors In the discussion of the first International Industrial Weighting and Force-measuring Exhibition in 1979, a new term emerged in the terminology of sensors: "single point" force sensing. The latest generation of retail scales did not include any auxiliary flexures supporting the upper weighing software platform, which was rigidly fixed to the central sensor. The design of this type of single point force sensor is based on the parallelogram principle, but an additional center cross beam needs to be provided for the strain gauge to complete the task of measuring beams and deflection components in the top and bottom parts of the parallelogram. Its advantage is that the strain gauge moves away from the position caused by eccentric loading, which leads to twisting effects, while increasing the rigidity of the structure. This type of force sensor is subjected to eccentric loading tests in the manufacturing plant. Apply 1/3 of the sensor's maximum load in different directions within a radius of 200 millimeters. Each sensor must operate within ± 1/3000 of the center reading value, which is a typical design. Another noteworthy new news in the field of force sensors is the promotion and application of the principle of gyroscopes. The gyroscopic force measurement system utilizes the proprietary characteristics of the tourbillon, making it a precise, linear, and reproducible force sensor. After studying the anti lag, anti drift, and anti temperature effects of this force sensor, the gyroscopic force measurement system can transmit direct digital signals to the display unit with high anti-interference performance. These characteristics make it completely independent of harsh environmental conditions. The rotor of the gyroscope rotates at a constant speed, and the horizontal axis of the rotor is installed in a universal support. There is a movable joint hanging an external universal support, which also supports one end of the movable lever below the tourbillon. The above are [0743 Single Point Sensor] 0743-9T~0743/20T_ Mettler Toledo weighing sensor detailed information, if you are interested in [0743 single point sensor] 0743-9T~0743-20T_ If you have any questions about the price, delivery time, model, or inventory of Mettler Toledo weighing sensors, please feel free to call us18520271262Chen GongObtain [0743 Single Point Sensor] 0743-9T~0743-20T_ Latest price details for Mettler Toledo weighing sensors.
