1041-15KG sensor, Tedia 1041-15KG weighing sensor, USA

Introduction to TEDEA Load Cell 1041-15KG Sensors in the United States

Product brand: Tedea Load cell, USA,Tedea Load cell
Product characteristics:Single point load cell
Material: Aluminum material design
Single point 400 x 400mm platform
OIML R60 and NTEP certification
Available in metric or UNC threads
Protection level IP65
1040 Load cell comprehensive accuracy: 0.02%
Optional features: EEx ia IIC T4- Hazardous Area Certification; FM certification optional; Protection level IP67 optional
Range: 5KG, 7KG, 10KG, 15KG, 20KG, 30KG, 50KG, 75KG, 100KG
Widely used in: worktable scales, counting scales, food scales, ingredient scales, quantitative systems, belt scales, commercial scales, parcel scales

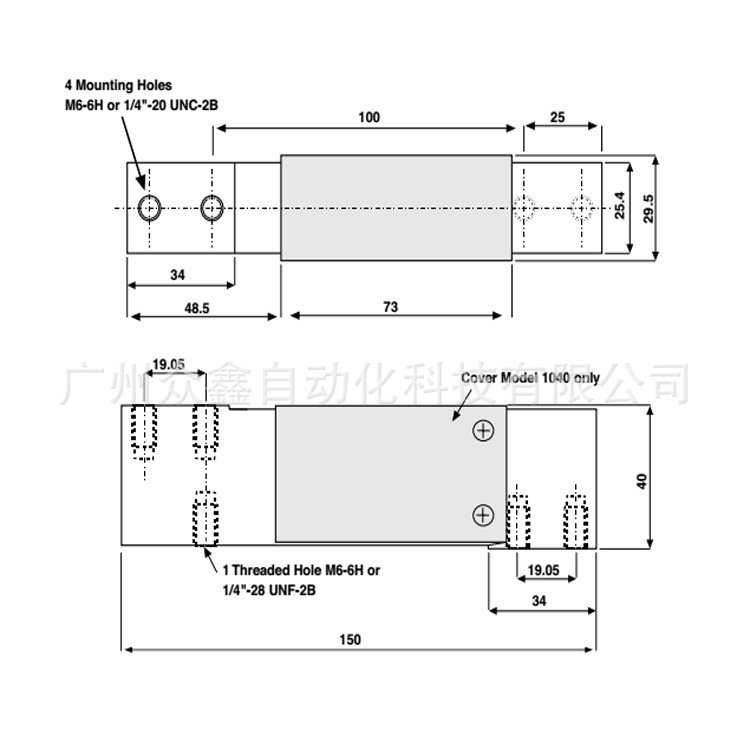

TEDEA Tedea Load Cell, USA1041-15KGTedea sensor dimensions

TEDEA Tedea Load Cell, USA1041-15KGTedea sensorPrecautions for use:

The replacement and related operations of internal circuit boards and other parts must be carried out by professional engineers or technicians
Before opening the shell cover, ensure that the equipment is powered off for at least 10 minutes The opening of the shell cover must be carried out by professional engineers or technicians
The explosion-proof type must be transferred to a safe area for maintenance, disassembly, and reassembly
The converter circuit board assembly contains sensitive components that may be damaged by static electricity Be careful to avoid direct contact with electronic components or circuit patterns on the circuit board, and take corresponding anti-static measures if necessary

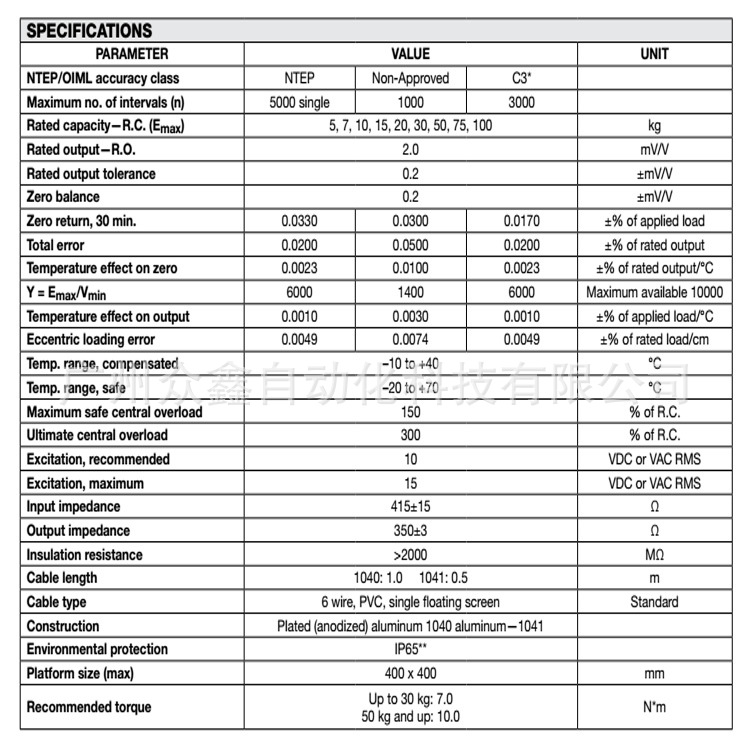

TEDEA Tedea Load Cell, USA1041-15KGTechnical parameters of Tedea sensor

　




TEDEA Tedea Load Cell, USA1041-15KGTedea sensorHot selling models

1040 series

1041-5KG, 1041-7KG, 1041-10KG, 1041-15KG, 1041-20KG

1041-30KG, 1041-50KG, 1041-75KG.1041-100KG.

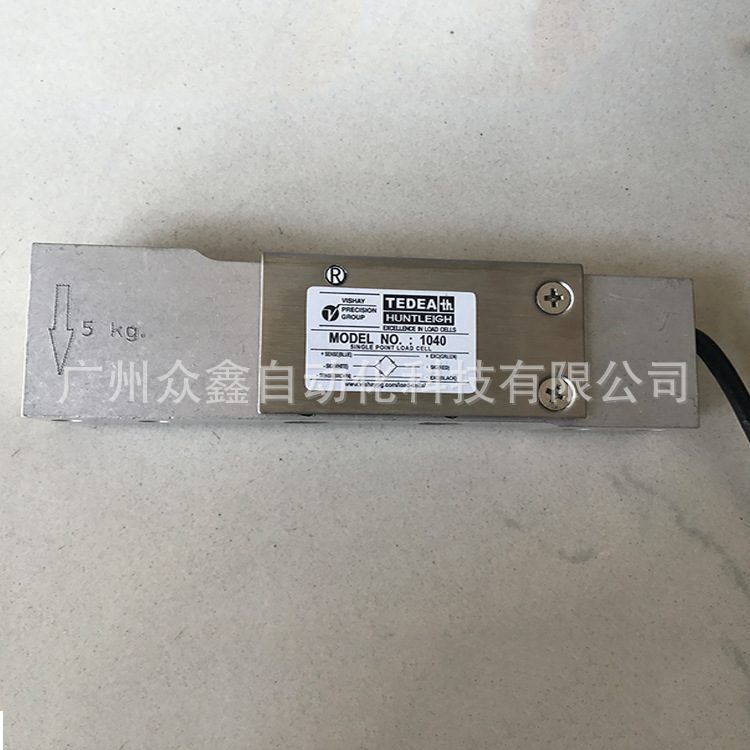

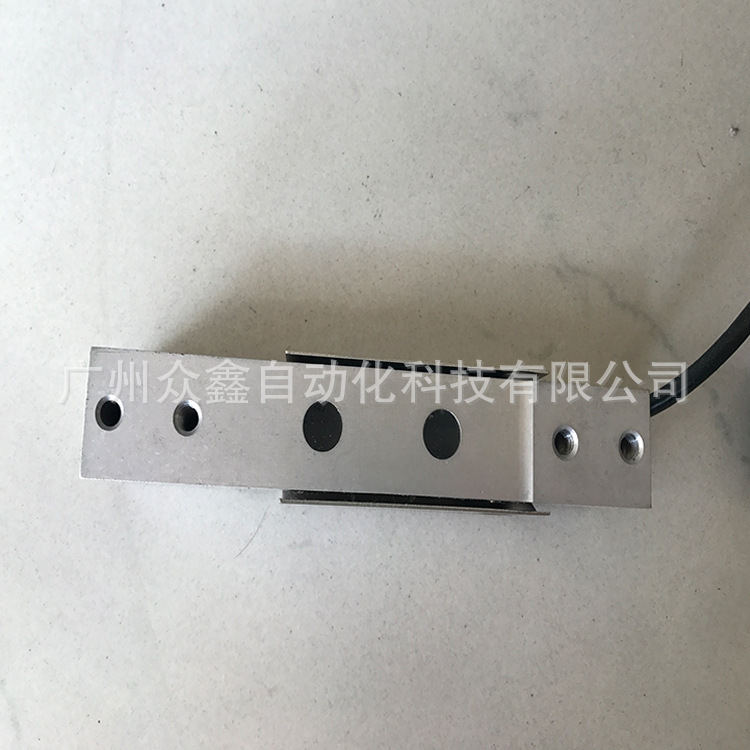

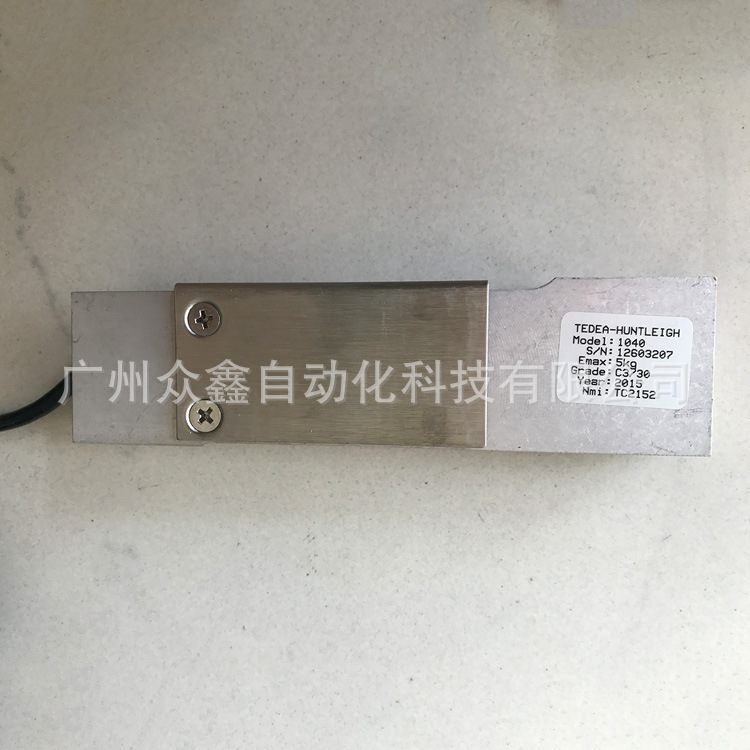

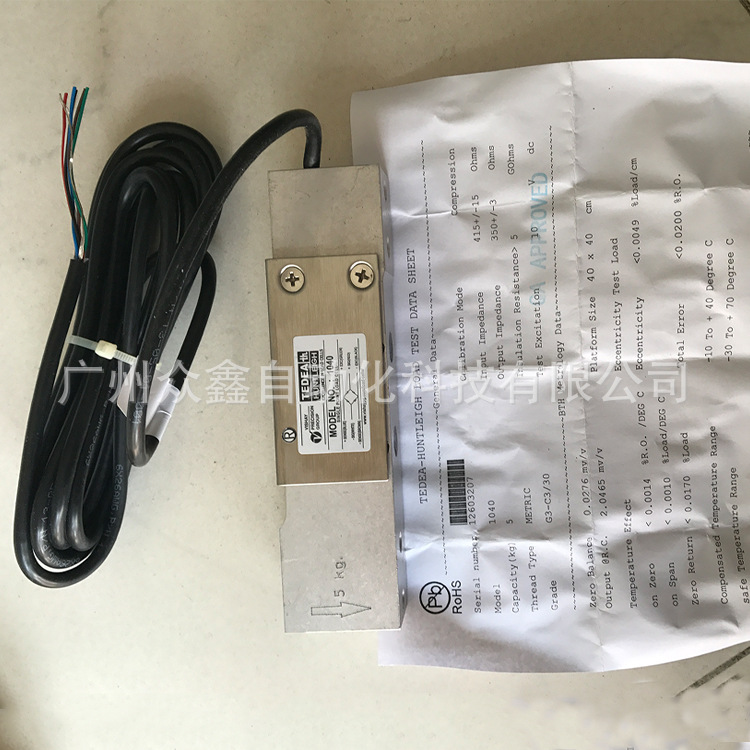

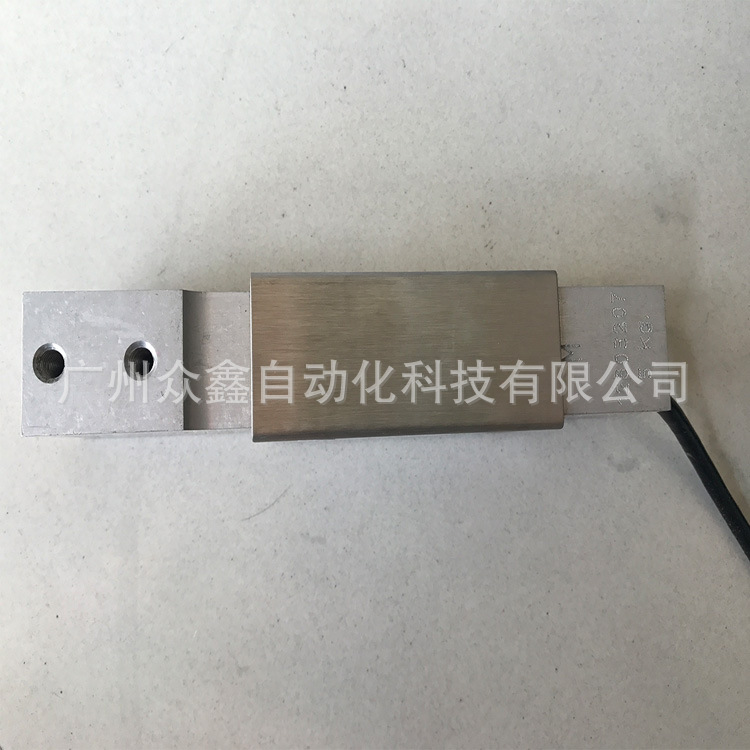

TEDEA Tedea Load Cell, USA1041-15KGReal photo of Tedea sensor
