DBSQ-10T sensor, American Transforce DBSQ-10T weighing sensor

【Guangzhou Zhongxin Automation Technology Co., Ltd】Professional supply of DBSQ series weighing sensors from the United States, 【 DBSQ single point sensor 】 DBSQ-10T_ The American Transforce weighing sensors guarantee fast delivery times, with 100% original imports, striving to become the top brand of sensor sales in China. The DBSQ series of American transmissionWeighing sensorRelated models: DBSQ-10T, DBSQ-20T, DBSQ-30T, DBSQ-50T

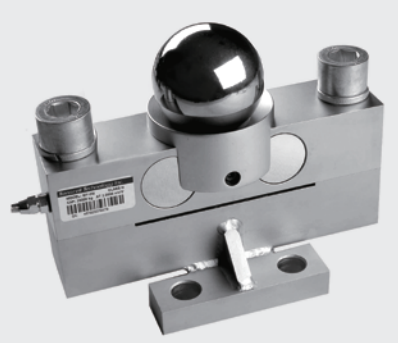

Introduction to the DBSQ-10T weighing sensor products from the United States

Product brand:American transmission weighing sensor
Product features:
Double shear beam type
High quality alloy steel material
High precision
High stability
Certified through CMC
Easy and fast installation
Surface nickel plating anti-corrosion treatment
Suitable for car scales, track scales, and hopper scales, etc

American transmissionDBSQ-10T weighing sensorInstallation dimensions

　

American transmissionDBSQ-10T weighing sensortechnical data

　
Expand reading

Single point weighing sensorThe Origin of
In the discussion of the first International Industrial Weighting and Force-measuring Exhibition in 1979, a new term emerged in the terminology of sensors: "single point" force sensing. The latest generation of retail scales did not include any auxiliary flexures supporting the upper weighing software platform, which was rigidly fixed to the central sensor. The design of this type of single point force sensor is based on the parallelogram principle, but an additional center cross beam needs to be provided for the strain gauge to complete the task of measuring beams and deflection components in the top and bottom parts of the parallelogram. Its advantage is that the strain gauge moves away from the position caused by eccentric loading, which leads to twisting effects, while increasing the rigidity of the structure. This type of force sensor is subjected to eccentric loading tests in the manufacturing plant. Apply 1/3 of the sensor's maximum load in different directions within a radius of 200 millimeters. Each sensor must operate within ± 1/3000 of the center reading value, which is a typical design. Another noteworthy new news in the field of force sensors is the promotion and application of the principle of gyroscopes. The gyroscopic force measurement system utilizes the proprietary characteristics of the tourbillon, making it a precise, linear, and reproducible force sensor. After studying the anti lag, anti drift, and anti temperature effects of this force sensor, the gyroscopic force measurement system can transmit direct digital signals to the display unit with high anti-interference performance. These characteristics make it completely independent of harsh environmental conditions. The rotor of the gyroscope rotates at a constant speed, and the horizontal axis of the rotor is installed in a universal support. There is a movable joint hanging an external universal support, which also supports one end of the movable lever below the tourbillon.
　
The above is the DBSQ-10T single point sensor_ Detailed information on the American transmission weighing sensor, if you are interested in the DBSQ single point sensor DBSQ-10T_ If you have any questions about the price, delivery time, model, or inventory of the American transmission weighing sensor, please feel free to call us18520271262Chen GongObtain DBSQ-10T Single Point Sensor_ The latest price details of the American transmission weighing sensor.
