[Guangzhou Zhongxin Automation Technology Co., Ltd.] specializes in supplying Mettler Toledo ZY series load cells, [ZY single point sensor] ZY-15T_ Mettler Toledo load cell guarantees fast delivery, 100% original import, and strives to become the first brand of sensor sales in China. Mettler Toledo ZY Series
Load cell Related models: ZY-15T, ZY-20T, ZY-30T
Mettler Toledo ZY-15T Product Introduction
Product brand:
Mettler Toledo Load cell
Product features:
Easy and fast installation
High comprehensive accuracy
Overload self-protection function
Patented rocking column structure
High quality alloy steel with nickel plating on the surface
Protection level IP67
Suitable for truck scales and track scales

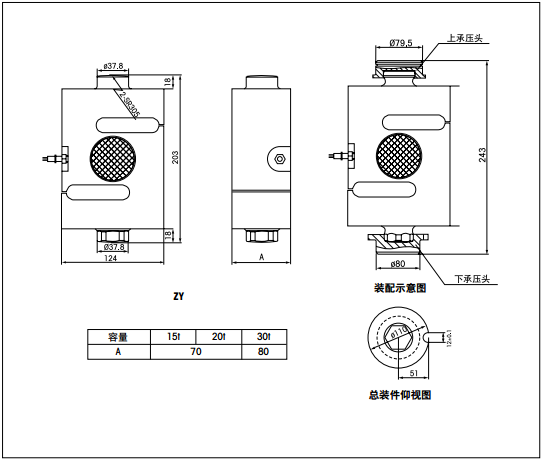

Mettler Toledo ZY-15T Installation dimensions
Mettler Toledo ZY-15T technical data
Extended Reading
Single point load cellThe Origin of
In the discussions at the first International Industrial Weighing and Force-measuring Exhibition in 1979, a new term appeared in the terminology of sensors:; Single point; The latest generation of retail scales does not include any auxiliary deflection components supporting the upper weighing software platform, and the platform is rigidly fixed to the center sensor The design of this kind of single point force sensor is based on the principle of parallelogram, but an additional central cross beam shall be provided for pasting Strain gauge, so as to complete the task of measuring beams and flexure pieces in the top and bottom parts of parallelogram The advantage is that the Strain gauge leaves the position with twisting effect caused by eccentric loading, and increases the rigidity of the structure This type of force sensor is subjected to eccentric loading tests at the manufacturing plant Apply 1/3 of the sensor's ultimate load in different directions within a radius of 200 millimeters Each sensor must read the± value at the center; Working within 1/3000, a typical design Another eye-catching new news in the field of force sensors is the promotion and application of the principle of gyroscopes. The gyroscopic force measurement system utilizes the proprietary characteristics of the gyroscope, making it a precise, linear, and reproducible force sensor. After studying the anti hysteresis, anti drift, and anti temperature effects of this force sensor, the gyroscopic force measurement system can transmit direct digital signals to the display unit with high anti-interference performance These characteristics make it completely independent of harsh environmental conditions The rotor of the gyroscope rotates at a constant speed, and the horizontal axis of the rotor is installed in a universal support There is an external universal support suspended by a movable joint, which also supports one end of the rotatable lever under the yoke
The above is the [ZY Single point sensor] ZY-15T_ Mettler Toledo Load cell Detailed information, if you are interested in [ZY Single point sensor] ZY-15T_ If you have any questions about the price, lead time, model, or inventory of Mettler Toledo Load cell, please feel free to call
