Guangzhou Zhongxin Automation Technology Co., Ltd ]Professional supply of Mettler Toledo GD Series weighing sensors, [GD Single point sensor] GD-30T_ Mettler Toledo Load Cell Ensure fast delivery time, 100% original import, and strict to achieve the top brand for sensor sales in China Mettler Toledo GD series
Load cell Related models: GD-20T, GD-30T, GD-50T, GD-100T

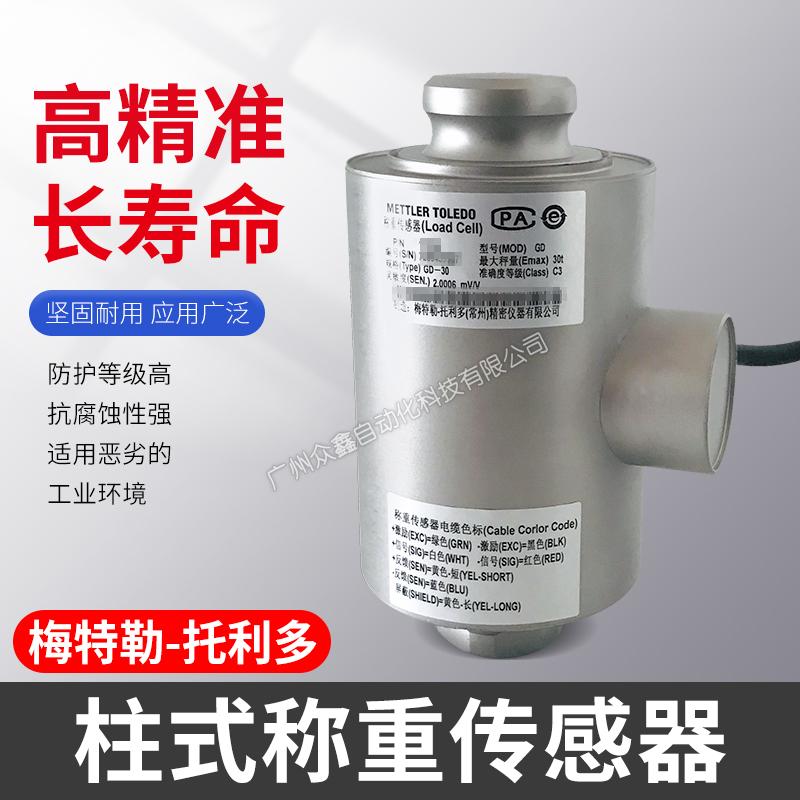

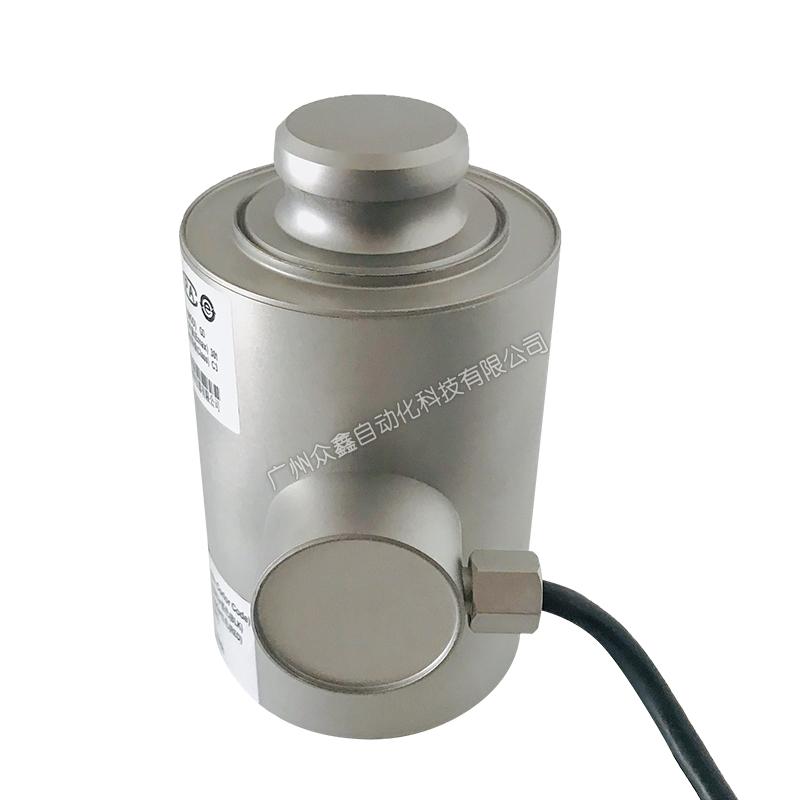

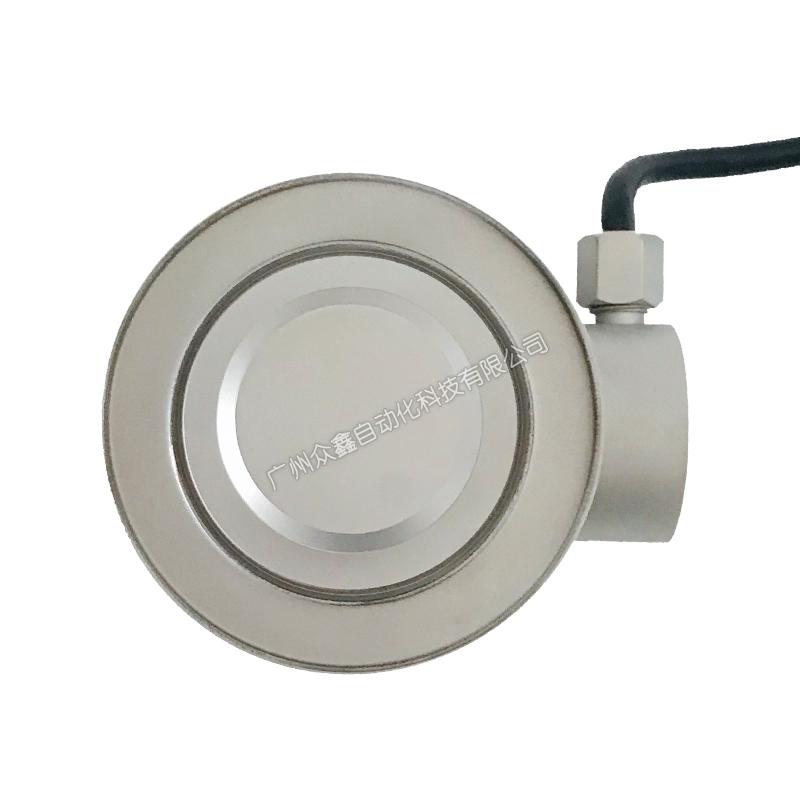

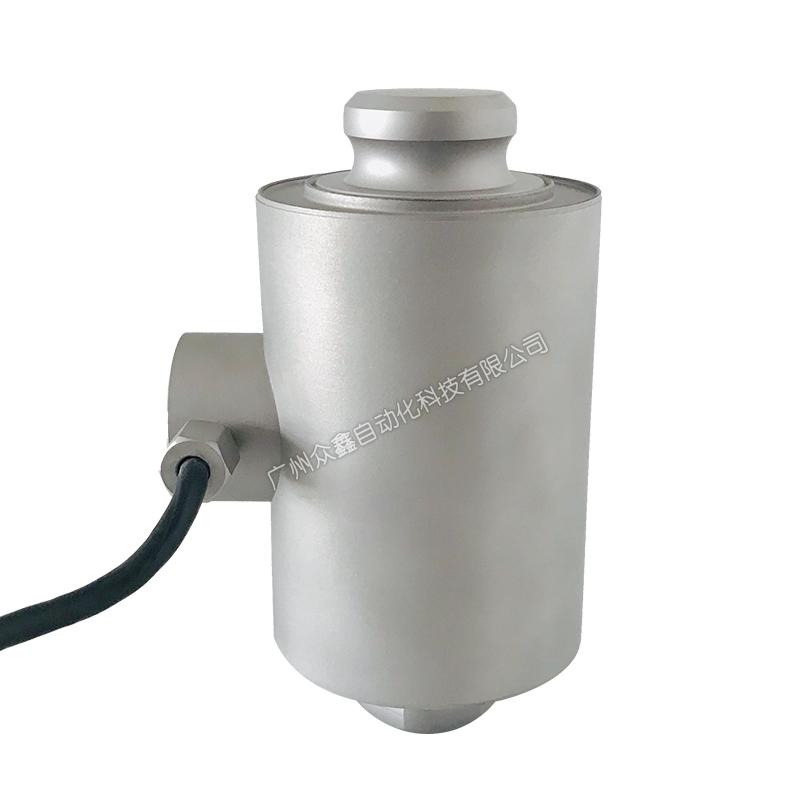

Mettler Toledo GD-30T Product Introduction
Product brand:
Mettler Toledo Load cell
Product features:
Obtained OIML R60 C3 certificate from Dutch NMI
Obtained NTEP 10000 III-L certificate issued by NIST in the United States
Stainless steel material
Welding sealing, protection level IP68
Patented design of self stabilizing shaking column structure
Low overall height, convenient and fast installation
Good long-term stability
Explosion proof performance meets EEx Ib tlc T4 requirements
High temperature sensor available, with a maximum operating temperature of 200C
Suitable for controlling the weighing of truck scales, track scales, and various large tonnage ingredients
Mettler Toledo GD-30T Installation dimensions
Mettler Toledo GD-30T technical data
Extended Reading
The Origin of Single Point Load Cell
In the discussions at the first International Industrial Weighing and Force-measuring Exhibition in 1979, a new term emerged in the terminology of sensors: "single point" force sensing. The latest generation of retail scales did not include any auxiliary flexors supporting the upper weighing software platform, which was rigidly fixed to the center sensor The design of this kind of single point force sensor is based on the principle of parallelogram, but an additional central cross beam shall be provided for pasting Strain gauge, so as to complete the task of measuring beams and flexure pieces in the top and bottom parts of parallelogram The advantage is that the Strain gauge leaves the position with twisting effect caused by eccentric loading, and increases the rigidity of the structure This type of force sensor is subjected to eccentric loading tests at the manufacturing plant Apply 1/3 of the sensor's ultimate load in different directions within a radius of 200 millimeters Each sensor must operate within ± 1/3000 of the center reading value, a typical design Another eye-catching new news in the field of force sensors is the promotion and application of the principle of gyroscopes. The gyroscopic force measurement system utilizes the proprietary characteristics of the gyroscope, making it a precise, linear, and reproducible force sensor. After studying the anti hysteresis, anti drift, and anti temperature effects of this force sensor, the gyroscopic force measurement system can transmit direct digital signals to the display unit with high anti-interference performance These characteristics make it completely independent of harsh environmental conditions The rotor of the gyroscope rotates at a constant speed, and the horizontal axis of the rotor is installed in a universal support There is an external universal support suspended by a movable joint, which also supports one end of the rotatable lever under the yoke
The above is [GD Single point sensor] GD-30T_ Mettler Toledo Load cell Detailed information, if you are interested in [GD Single point sensor] GD-30T_ If you have any questions about the price, lead time, model, or inventory of Mettler Toledo Load cell, please feel free to call
