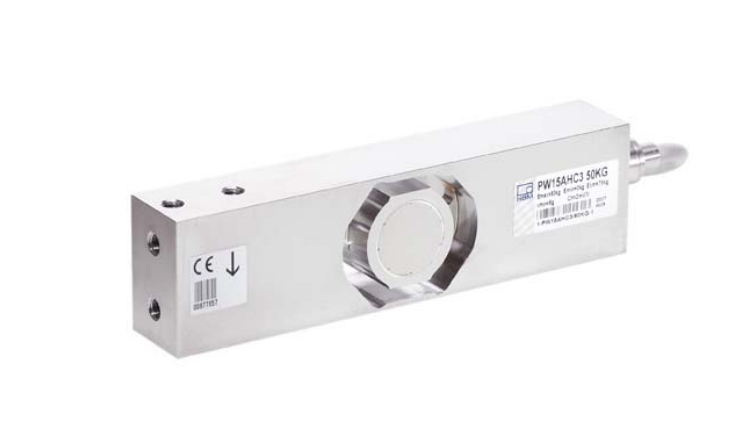

German HBM 1-PW15AHC3 Series weighting sensors, [PW15AH Single point sensor] 1-PW15AHC3/10kg-1~PW15AHC3/100kg_ German HBM Load cell guarantees fast delivery time, 100% original import, and strives to become the top brand for sensor sales in China German HBM 1-PW15AHC3 series
Load cell Related models: 1-PW15AHC3/10KG-1, 1-PW15AHC3/20KG-1, 1-PW15AHC3/50KG-1, 1-PW15AHC3/100KG-1
German HBM 1-PW15AH series Product Introduction
Product brand:
German HBM Load cell , HBM Load cell
Product features:
Tight sealing
High reliability
Calibration graduation value of minimum value within multi range range
Easily interchangeable with products from other manufacturers
Stainless steel
Cable with casing protection
6-wire system
option
Different cable lengths
German HBM 1-PW15AH series Installation dimensions
German HBM 1-PW15AH series technical data
Extended Reading
The Origin of Single Point Load Cell
In the discussions at the first International Industrial Weighing and Force-measuring Exhibition in 1979, a new term appeared in the terminology of sensors:; Single point; The latest generation of retail scales does not include any auxiliary deflection components supporting the upper weighing software platform, and the platform is rigidly fixed to the center sensor The design of this kind of single point force sensor is based on the principle of parallelogram, but an additional central cross beam shall be provided for pasting Strain gauge, so as to complete the task of measuring beams and flexure pieces in the top and bottom parts of parallelogram The advantage is that the Strain gauge leaves the position with twisting effect caused by eccentric loading, and increases the rigidity of the structure This type of force sensor is subjected to eccentric loading tests at the manufacturing plant Apply 1/3 of the sensor's ultimate load in different directions within a radius of 200 millimeters Each sensor must read the± value at the center; Working within 1/3000, a typical design Another eye-catching new news in the field of force sensors is the promotion and application of the principle of gyroscopes. The gyroscopic force measurement system utilizes the proprietary characteristics of the gyroscope, making it a precise, linear, and reproducible force sensor. After studying the anti hysteresis, anti drift, and anti temperature effects of this force sensor, the gyroscopic force measurement system can transmit direct digital signals to the display unit with high anti-interference performance These characteristics make it completely independent of harsh environmental conditions The rotor of the gyroscope rotates at a constant speed, and the horizontal axis of the rotor is installed in a universal support There is an external universal support suspended by a movable joint, which also supports one end of the rotatable lever under the yoke
