1、 Product Introduction of PW15BC3/50kg Weighing Sensor
Brand: HBM Germany
Series: PW15BC3
Type: Single point weighing sensor
Product Introduction: Made of stainless steel, it can be used in various environmental conditions. And it has an explosion-proof version and parallel output.
Product Features:
(1) Rated load 7.5 kg... 200 kg
(2) C3 accuracy level with multiple ranges, Y value up to 15000
(3) Stainless steel
(4) IP67 protection level
(5) Cable length 1.5 m... 12 m
2、 PW15BC3/50kg weighing sensor related range
PW15BC3/7.5kg
PW15BC3/15kg
PW15BC3/20kg
PW15BC3/30kg
PW15BC3/50kg
PW15BC3/75kg
PW15BC3/100kg
PW15BC3/150kg
PW15BC3/200kg

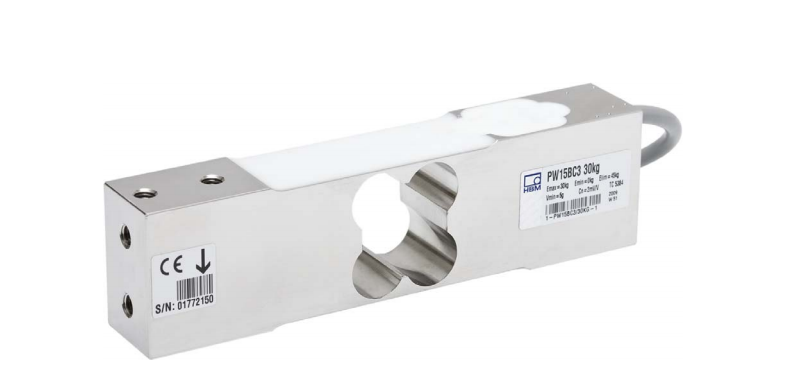

3、 Actual photo of PW15BC3 weighing sensor
4、 Product dimensions of PW15BC3 weighing sensor
5、 Technical parameters of PW15BC3 weighing sensor
Minimum calibration division value within a multi range range
OIML R60 certification
Eccentricity compensation (OIML R76)
IP67 protection level
6-wire system
EMC certification (EN 45501)
option
Explosion proof version
Multiple cable lengths
Output adjustment, suitable for parallel connection
Installation dimensions of German HBM 1-PW15B series
Technical data of German HBM 1-PW15B series
Expand Reading
The origin of single point weighing sensors
In the discussions at the first International Industrial Weighing and Force Measurement Exhibition in 1979, a new term emerged in the terminology of sensors: "single point" force sensing. The latest generation of retail scales does not include any auxiliary flexure supporting the upper weighing software platform, which is rigidly fixed to the central sensor. The design of this type of single point force sensor is based on the parallelogram principle, but requires an additional central cross beam for attaching strain gauges to complete the task of measuring beams and deflection members in the top and bottom components of the parallelogram. Its advantage is that the strain gauges are moved away from the position where there is a twisting effect caused by eccentric loading, while increasing the rigidity of the structure. This type of force sensor needs to undergo eccentric loading test in the manufacturing plant. Apply one-third of the maximum load of the sensor in different directions within a radius of 200 millimeters. Each sensor must operate within ± 1/3000 of the center reading value, which is a typical design. Another noteworthy new news in the field of force sensors is the promotion and application of the gyroscope principle. The gyroscope force measurement system utilizes the proprietary characteristics of gyroscopes, making it a precise, linear, and highly reproducible force sensor. After studying the anti hysteresis, anti drift, and anti temperature effects of this force sensor, the gyroscope force measurement system can transmit direct digital signals to the display unit with high anti-interference ability. These characteristics make it completely independent of harsh environmental conditions. The rotor of the gyroscope rotates at a constant speed, and the horizontal axis of the rotor is installed in a universal bracket. There is a joint hanging an external universal bracket, which in turn supports one end of the rotatable lever under the tourbillon.
The above is the detailed information of the [PW15B Single Point Sensor] 1-PW15BC3/7.5kg-1~PW15BC3/200kg German HBM weighing sensor. If you have any questions about the price, delivery time, model, and inventory of the [PW15B Single Point Sensor] 1-PW15BC3/7.5kg-1~PW15BC3/200kg German HBM weighing sensor, please feel free to call18520271262Engineer ChenGet the latest price details of PW15B single point sensor 1-PW15BC3/7.5kg-1~PW15BC3/200kg German HBM weighing sensor.
