German HBM 1-Z6FC3/10KGThe weighing sensorIt belongs to the corrugated tube weighing sensor, with a range of 5kg to 1T and a protection level of IP68. The Z6FC3/10KG weighing sensor can be applied in harsh industrial environments, usually used for platform scales or belt scales. Combined with weighing modules, it can also be used for material tank weighing.
1、 Introduction to German HBM 1-Z6FC3/10kg weighing sensor products
1. Using certified and high-precision weighing technology
(1) According to the OIML standard, the accuracy level of Z6FC3 is C3, and D1, C4, C5, and C6 levels can also be selected;
(2) 6-wire system, capable of resistance compensation;
(3) Excellent eccentric load performance, low sensitivity error, and output resistance.
2. Continuous and reliable weighing
(1) Electropolished stainless steel measuring body;
(2) IP68 (100 hours, 1 m underwater);
(3) Metal corrugated pipe sealing;
(4) Conduct EMC testing according to EN 45501:2015;
(5) The sensor and mounting accessories are made of stainless steel.
3. Extremely versatile and versatile
(1) Provide different rated ranges: 5 kg, 10 kg, 20 kg, 30 kg, 50 kg, 100 kg, 200 kg, 500 kg, and 1 ton;
(2) Metrology certification: OIML, NTEP (USA), NMIA (Australia), Russia;
(3) Provide explosion-proof versions (IECEx/ATEX, FM (USA), EAC);
(4) The cable length ranges from 3 to 20 meters;
(5) 6-wire system, cable length can be cut according to needs.

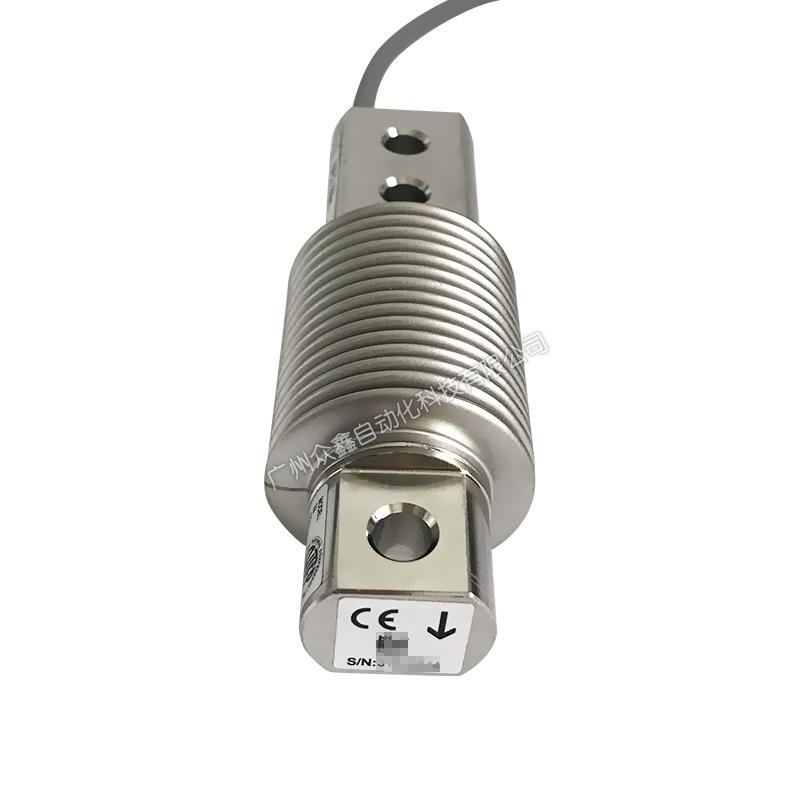

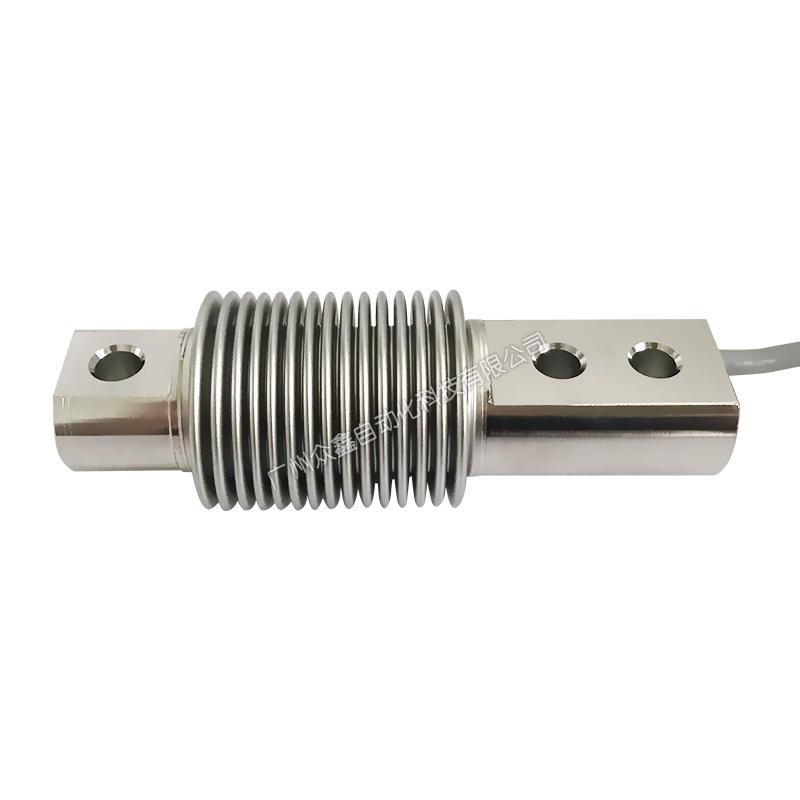

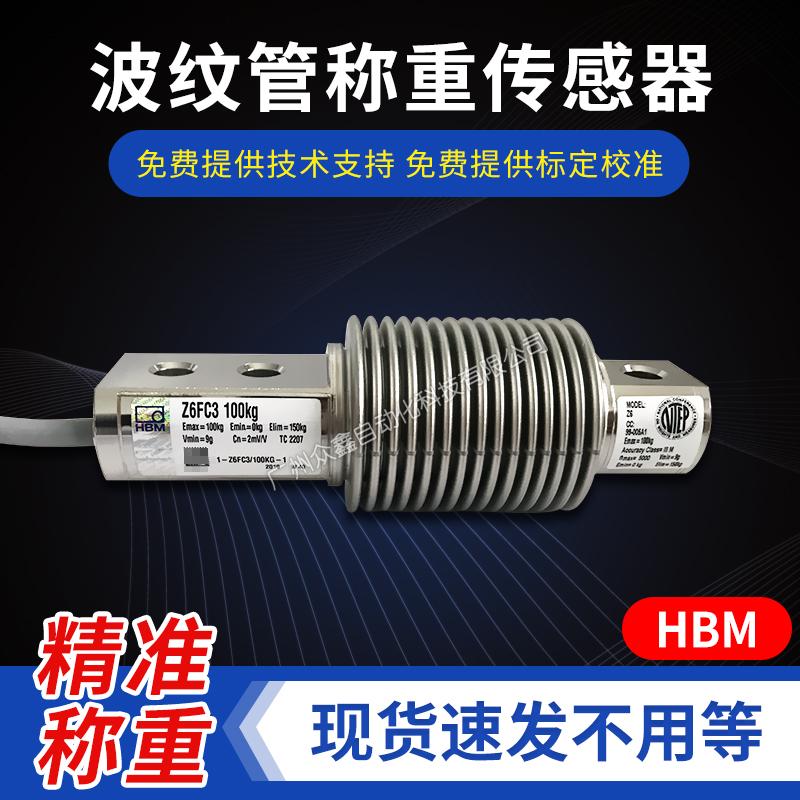

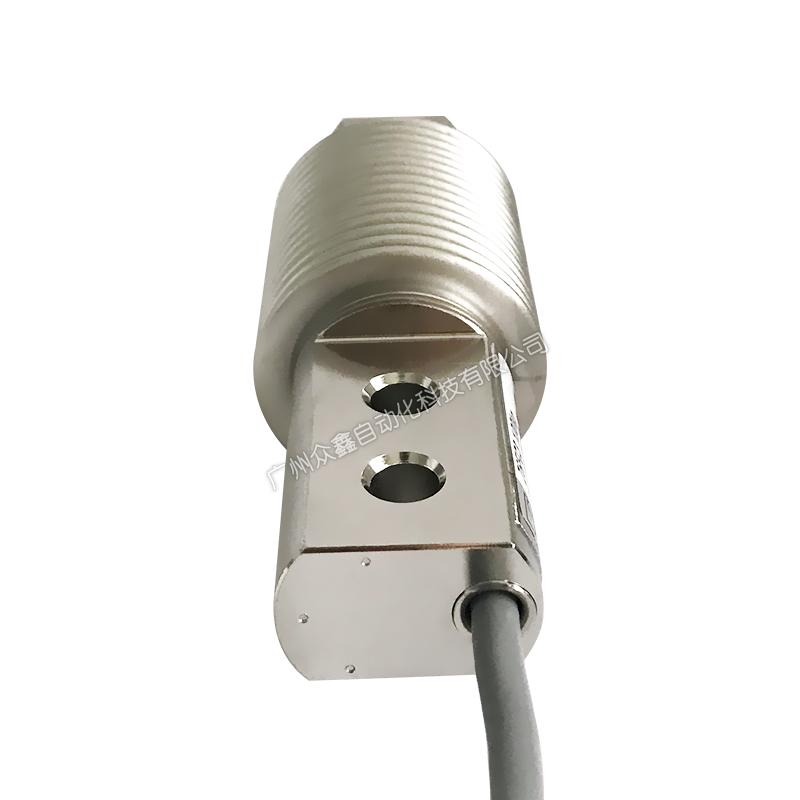

2、 Actual photo of German HBM 1-Z6FC3/10kg weighing sensor
3、 German HBM 1-Z6FC3/10kg weighing sensor related models
1-Z6FC3/10KG weighing sensor
1-Z6FC3/20KG weighing sensor
1-Z6FC3/50KG weighing sensor
1-Z6FC3/100KG weighing sensor
1-Z6FC3/200KG weighing sensor
1-Z6FC3/500KG weighing sensor
1-Z6FC3/1T weighing sensor
4、 German HBM 1-Z6FC3/10kg weighing sensor product dimensions
5、 Technical parameters of German HBM 1-Z6FC3/10kg weighing sensor products
6、 Safety instructions for German HBM 1-Z6FC3/10kg weighing sensor
1. The Z6F series weighing sensors are designed for weighing applications and should not be considered compliant with relevant regulations for any other purpose.
2. To ensure safe operation, the weighing sensor can only be used according to the instructions in the installation instructions. During use, it is also necessary to comply with the relevant legal and safety requirements of the application. This also applies to the use of attachments.
3. If the weighing sensor is damaged, it may cause equipment damage or endanger personal safety. Therefore, users must take appropriate safety measures (such as safety devices to prevent falling, collapsing, or overloading). In order to operate safely and without faults, the weighing sensor must not only be transported, stored, positioned, and installed correctly, but also operated and maintained carefully to avoid overloading.
4. The maximum load of the 1-Z6FC3/10kg weighing sensor is 10kg. When using it, attention should be paid to the possibility of instantaneous overload, which may also cause damage to the sensor.
