Taiwan Yuxin_ LDB One Polnt Load Cell Load Element_ Taiwan JIHSENSE weighing sensor

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　
【Guangzhou Zhongxin Automation Technology Co., Ltd】Professional supply 【 Taiwan Yuxin 】_ LDB One Polnt Load Cell Load Element_ Taiwan JIHSENSE weighing sensor,Taiwan Yuxin_ LDB One Polnt Load Cell Load Element_Taiwan JIHSENSE weighing sensorEnsure fast delivery time, 100% original and authentic products, and strive to become the top brand of sensor sales in China. Taiwan JIHSENSE_ LDB One Polnt Load Cell series weighing sensor models: LDB-0.2kg, LDB-0.4kg, LDB-0.6kg, LDB-1kg, LDB-2kg, LDB-3kg, LDB-6kg, LDB-10kg, LDB-15kg, LDB-20kg, LDB-30kg, LDB-60kg, LDB-100kg, LDB-200kg. Taiwan JIHSENSE LDB One Polnt Load cell 0.2kg~200kgWeighing sensorIt is one of our company's key advantageous products, with absolute competitive prices, in stock, original, authentic, and reliable! Ensure satisfactory price and quality!We solemnly promise: "Within three months, if there are any quality issues, we will unconditionally return or exchange the goods, refund the full payment, and charge no fees.". 1 year warranty, ready for repair at any time!
　

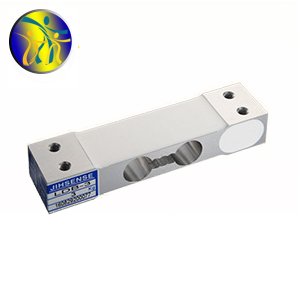

Product Introduction: LDB Load Element　

This load element is designed specifically for platform weighing units, adopting a flat structure design to reduce the height of the weighing unit. It uses high-strength aluminum alloy material, and the sensing part is fully sealed and protected with silicone. Specially suitable for the needs of weighing platforms and industrial scales, it has the following characteristics: flat structure sealing protection, low eccentricity error, dust and moisture prevention
Models: LDB-0.2kg, LDB-0.4kg, LDB-0.6kg, LDB-1kg, LDB-2kg, LDB-3kg, LDB-6kg, LDB-10kg, LDB-15kg, LDB-20kg, LDB-30kg, LDB-60kg, LDB-100kg, LDB-200kg

Specification parameters:

Expand reading

Performance indicators of weighing sensors
The performance of a weighing system can be measured by indicators such as linearity, hysteresis, repeatability, and creep.
Linear:Indicates the degree of consistency between the actual output of the system and the theoretical straight line. As shown in the figure, when a linear error occurs, the output of the system at no-load and full load is correct, but the input-output point between these two points is inconsistent with the ideal state. Linear error is the maximum difference between the theoretical straight line and the actual output curve.
Lag:Indicates the degree to which the input-output curve of the system does not coincide during loading and unloading processes.
Repeatability:Indicates the degree of inconsistency in the system's output for consecutive weighing of the same weight during loading or unloading. It is usually expressed as the percentage of the difference between the minimum output and the maximum output of the system under the same loading conditions to the total output.
Creep:The characteristic of the system withstanding a constant weight at a certain temperature, and the output changing over time due to mechanical deformation of the elastic material of the sensor.
　
Overview of Column Load Cells
The column type weighing sensor is suitable for sealing and adapting to harsh environments. Used for engineering force detection, overload safety detection, and impact force measurement and control. Suitable for large platform scales, car scales, track scales, etc. Six wire wiring method can be selected. The column type weighing sensor has a large range and is widely used in the heavy industry field.
　

The above is Taiwan Yuxin_ LDB One Polnt Load Cell Load Element_ Taiwan JIHSENSE weighing sensor detailed information, if you are interested in [Taiwan Yuxin]_ LDB One Polnt Load Cell Load Element_ If you have any questions about the price, delivery time, model, or inventory of JIHSENSE weighing sensors in Taiwan, please feel free to call us18520271262 Chen GongObtain Taiwan Yuxin_ LDB One Polnt Load Cell Load Element_ Latest price details for JIHSENSE weighing sensors in Taiwan.
