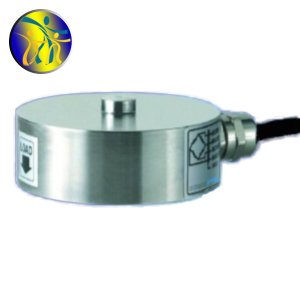

FCM1 sensor: FCM1-50kgf~20tf_ Korean Fine weighing sensor

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　
【Guangzhou Zhongxin Automation Technology Co., Ltd】Professional supply for Korean Fine [FCM1 sensor] FCM1-50kgf~20tf_Korean Fine weighing sensorEnsure fast delivery time, 100% original incoming products, 10 years of industry experience, focusing on high-end and high-quality sensor services, and providing complete automation solutions.

Korea Fine FCM1Weighing sensorAll ranges：FCM1-50kgf, FCM1-100 kgf, FCM1-200kgf, FCM1-300 kgf, FCM1-500 kgf, FCM1-1tf, FCM1-2tf, FCM1-3tf, FCM1-5tf, FCM1-10tf, FCM1-20tf. The Korean Fine FCH1-500kgf-500tf weighing sensor isOne of our company's key competitive products, with absolute competitive prices, in stock, original, authentic, and reliable! Ensure satisfactory price and quality!We solemnly promise: "Within three months, if there are any quality issues, we will unconditionally return or exchange the goods, refund the full payment, and charge no fees.". 1 year warranty, ready for repair at any time!
　
Product Introduction:
Fine in South Korea is known as the heart component of electronic scales. With the rapid development of science and technology, electronic scales made from weighing sensors have been widely used in various industries, achieving fast and accurate weighing of materials. FIEN weighing products from South Korea are mainly used in various electronic scales, industrial control fields, online control, safety overload alarms, material testing machines, and other fields. Such as electronic hook scales, electronic pricing scales, electronic car scales, electronic platform scales, electronic forklifts, dynamic axle load scales, electronic steel scales, electronic track scales, hopper scales, ingredient scales, canned scales, etc.
　
FCM1 parameters:




Expand reading

Installation instructions for weighing module

　Mechanical installation　

If necessary, shims can be used to adjust the force evenly on each sensor.
The top and bottom plates of the weighing module must be adjusted in a straight line to maintain the vertical direction of the force acting on the sensor.
When welding near the weighing module, be sure to pay attention to grounding, otherwise the welding current will pass through the sensor and cause damage.
The basic requirements are horizontal and have good rigidity, and there is a small difference in the required levelness between the foundations.
Be sure to tighten the support bolts of the weighing module during installation.
The weighing module must be installed in a convenient maintenance location.
　
Connection

All connections should use shielded insulated cables.
Electromagnetic interference can affect the output signal of sensors, causing weighing errors.
Isolate the power cord and sensor cable.
The junction box should be protected from moisture and corrosive substances.
Cables can be fitted with sleeves to prevent mechanical damage or erosion by damp or corrosive substances.
Do not arbitrarily change the length of the sensor cable, as this will change the output impedance of the sensor.
It is recommended to choose the recommended length and size of the connecting cable between the junction box and the weighing instrument, otherwise it may cause signal loss.
　
Preparation work before calibration　

Install brackets on the tank body for hanging weights. The spacing between each bracket should be equal.
Before calibration, the output signal of each sensor should be tested to determine whether the force is evenly distributed to each sensor.
If necessary, the level of the module can be adjusted with a gasket or the potentiometer of the junction box can be adjusted to maintain consistent output for each sensor.
　

The above isFCM1 sensor: FCM1-50kgf~20tf_ Korean Fine weighing sensorDetailed information, if you are interested inFCM1 sensor: FCM1-50kgf~20tf_ Korean Fine weighing sensorIf you have any questions about the price, delivery time, model, or inventory, please feel free to call us18520271262 Chen GongobtainFCM1 sensor: FCM1-50kgf~20tf_ Korean Fine weighing sensorLatest price details for.
