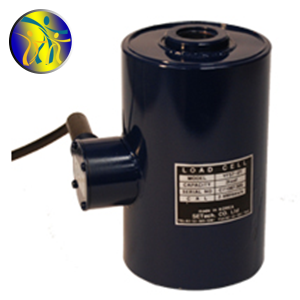

[Shitai YF-57 Sensor] YF-57-1tonf~YF-57-100tonf_ South Korean SETech weighing sensor

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　

【Guangzhou Zhongxin Automation Technology Co., Ltd】Professional supply of Setech YF-57 from South KoreaWeighing sensor，[Shitai YF-57 Sensor] YF-57-1tonf~YF-57-100tonf_ South Korean SETech weighing sensorEnsure fast delivery time, 100% original and authentic products, and strive to become the top brand of sensor sales in China. South Korean Setech YF-57 series weighing sensor related models: YF-57-1t, YF-57-2t, YF-57-3t, YF-57-5t, YF-57-10t, YF-57-20t, YF-57-50t, YF-57-100t
　
　
South Korea Setech sensoryesOne of our company's key competitive products, with absolute competitive prices, in stock, original, authentic, and reliable! Ensure satisfactory price and quality!We solemnly promise: "Within three months, if there are any quality issues, we will unconditionally return or exchange the goods, refund the full payment, and charge no fees.". 1 year warranty, ready for repair at any time!
　
Specification parameters of South Korean Setech (YF-57)　　
　　　 　　　　　　　　　　　　　　　
Range of 1TONF to 100TONF Temperature compensation range -10 ℃ to 60 ℃
Output 2mv/v ± 0.1% safe temperature range -20 ℃~80 ℃
Temperature effect of 0.1% R.O/10 ℃ at non-linearity 0.15% R.O 0 equilibrium
Temperature effect on hysteresis 0.1% R.O output 0.1% Load10 ℃
Repetitive 0.1% R.O allows for a voltage of 10V DC
Input impedance 350 ± 5 Ω Safety load 150% R.C
Output impedance 350 ± 5 Ω Cable Ø 7Shield 3m
Insulation resistance 5000M Ω

Expand reading

Weighing ModuleInstallation instructions
　
Mechanical installation　
If necessary, shims can be used to adjust the force evenly on each sensor.
The top and bottom plates of the weighing module must be adjusted in a straight line to maintain the vertical direction of the force acting on the sensor.
When welding near the weighing module, be sure to pay attention to grounding, otherwise the welding current will pass through the sensor and cause damage.
The basic requirements are horizontal and have good rigidity, and there is a small difference in the required levelness between the foundations.
Be sure to tighten the support bolts of the weighing module during installation.
The weighing module must be installed in a convenient maintenance location.
　
Connection

All connections should use shielded insulated cables.
Electromagnetic interference can affect the output signal of sensors, causing weighing errors.
Isolate the power cord and sensor cable.
The junction box should be protected from moisture and corrosive substances.
Cables can be fitted with sleeves to prevent mechanical damage or erosion by damp or corrosive substances.
Do not arbitrarily change the length of the sensor cable, as this will change the output impedance of the sensor.
It is recommended to choose the recommended length and size of the connecting cable between the junction box and the weighing instrument, otherwise it may cause signal loss.
　
Preparation work before calibration　
Install brackets on the tank body for hanging weights. The spacing between each bracket should be equal.
Before calibration, the output signal of each sensor should be tested to determine whether the force is evenly distributed to each sensor.
If necessary, the level of the module can be adjusted with a gasket or the potentiometer of the junction box can be adjusted to ensure that the output of each sensor is consistent



The above is[Shitai YF-57 Sensor] YF-57-1tonf~YF-57-100tonf_ South Korean SETech weighing sensorDetailed information, if you are interested in[Shitai YF-57 Sensor] YF-57-1tonf~YF-57-100tonf_ South Korean SETech weighing sensorIf you have any questions about the price, delivery time, model, or inventory, please feel free to call us18520271262obtain[Shitai YF-57 Sensor] YF-57-1tonf~YF-57-100tonf_ South Korean SETech weighing sensorLatest price details for.
