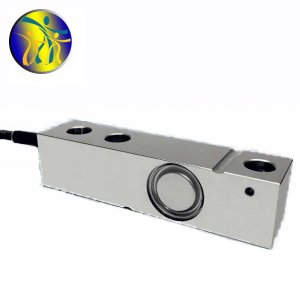

MOD350i sensor: MOD350i-300kg~MOD350i-5000kg_ Spain UTILCELL weighing sensor

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　

【Guangzhou Zhongxin Automation Technology Co., Ltd】Professional supplyUTILCELL, Spain_ MOD350i seriesWeighing sensorMOD350i sensor: MOD350i-300kg~MOD350i-5000kg_Spain UTILCELL weighing sensorEnsure fast delivery time, 100% original import, and improve complete automated weighing solutions for various industrial fields. UTILCELL, Spain_ MOD350i series weighing sensor related models: MOD350i-300kg, MOD350i-500kg, MOD350i-750kg, MOD350i-1000kg, MOD350i-1500kg, MOD350i-2000kg, MOD350i-3000kg, MOD350i-5000kg.
　
The Spanish UTILCELL MOD350i weighing sensor is one of our company's key advantageous products, with absolute competitive prices, in stock, original, authentic, and reliable! Ensure satisfactory price and quality!
　
We solemnly promise: "Within three months, if there are any quality issues, we will unconditionally return or exchange the goods, refund the full payment, and charge no fees.". Warranty 1Year, maintenance at any time!

Installation dimensions of MOD350i weighing sensor



Introduction to MOD350i weighing sensor products

brand	UTILCELL, Spain
name	Shear beam sensor
model	350i
material quality	350i(300kg~5000kg)	All stainless steel structure, sealed, fully welded, with a protection level of IP68
	350a(300kg~5000kg)	Made of stainless steel, sealed with silicone, with a protection level of IP66
	350n(300kg~2000kg)	Nickel plated alloy steel, silicone seal, protection level IP66
3000 degree OIML R60 C-level
Easy to tune for systems using multiple sensors
Explosion proof optional ATEX
In industrial applications where high precision is required:		Weighing platform with 4 fulcrums
		Weighing of hoppers, silos, and silos

All specifications of MOD350i weighing sensor

350iseries	350a	350n
MOD350i-300kg，MOD350i-1000kg，MOD350i-3000kg MOD350i-500kg，MOD350i-1500kg，MOD350i-5000kg MOD350i-750kg，MOD350i-2000kg	MOD350a-300kg，MOD350a-1000kg，MOD350a-3000kg MOD350a-500kg，MOD350a-1500kg，MOD350a-5000kg MOD350a-750kg，MOD350a-2000kg	MOD350N-300kg，MOD350N-1000kg， MOD350N-500kg，MOD350N-1500kg， MOD350N-750kg，MOD350N-2000kg

　
Expand reading
　
Basic performance of measuring instruments
1. Accuracy
(1) Precision δ
It indicates the dispersion of instrument indication values, that is, the degree of dispersion of measurement results (indication values) for a stable measured object, measured by the same measurer using the same instrument multiple times in a relatively short period of time. δ The smaller the measurement, the more precise it is.
For example, the precision of a certain temperature instrument δ= 0.5 ℃ means that the dispersion degree of multiple measurement results is not greater than 0.5 ℃. Precision is a sign of the size of random error, and high precision means small random error.
However, it must be noted that precision and accuracy are two separate concepts, and high precision does not necessarily mean accuracy.
(2) Accuracy ε
It indicates the degree of deviation between the instrument indication value and the true value.
For example, the accuracy of a certain flow meter ε= 0.3m3/s indicates that the indicated value of the instrument deviates from the true value by 0.3m3/s. Accuracy is a sign of the size of system error, and high accuracy means small system error. Similarly, high accuracy does not necessarily mean precision.
(3) Accuracy τ
It is a comprehensive reflection of precision and accuracy, with high precision indicating that both precision and accuracy are relatively high. In the simplest case, the algebraic sum of the two can be taken, i.e τ=δ+ε。 Accuracy is often expressed as the relative value of measurement error.
2. Stability
(1) Stability
Refers to the change in the indicated value caused by the instrument's own random changes, periodic changes, drift, etc. within a specified time and under unchanged measurement conditions. Generally, the precision value of the instrument is expressed together with the length of time.
For example, if the voltage indication value of a certain instrument changes by 1.3V per hour, the stability can be expressed as 1.3mV/h.
(2) Impact quantity
The amount of change in the indicator value caused by changes in the external environment of a measuring instrument is called the influence quantity. It is caused by external environmental influences such as temperature, humidity, air pressure, vibration, power supply voltage, and power supply frequency. When explaining the impact, it is necessary to indicate both the influencing factors and the deviation from the indicated value.
For example, if a certain instrument changes its indicated value by 0.02mA due to a 10% change in power supply voltage, it should be written as 0.02mA/U ± 10%.
　
The above is the MOD350i sensor MOD350i-300kg~MOD350i-5000kg_ Detailed information on the Spanish UTILCELL weighing sensor. If you are interested in the MOD350i sensor, MOD350i-300kg~MOD350i-5000kg_ If you have any questions about the price, delivery time, model, or inventory of UTILCELL weighing sensors in Spain, please feel free to call us18520271262 Chen GongObtain MOD350i Sensor MOD350i-300kg~MOD350i-5000kg_ The latest price details of the Spanish UTILCELL weighing sensor.
