【 NA6 sensor 】 NA6-0.3kg~NA6-10kg_ Taiwan Mavin weighing sensor

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　 　 　
【Guangzhou Zhongxin Automation Technology Co., Ltd】Professional supply of Taiwan Mavin weighing sensors, 【 NA6 sensors 】 NA6-0.3kg~NA6-10kg_Taiwan Mavin weighing sensorEnsure fast delivery time, 100% original and genuine products, and strive to become the top brand for sensor sales in China. NA6 series Taiwan Mavin weighing sensor related models: NA6-0.3kg, NA6-0.5kg, NA6-0.6kg, NA6-0.75kg, NA6-1kg, NA6-2kg, NA6-3kg, NA6-4kg, NA6-5kg, NA6-7kg, NA6-10kg
.

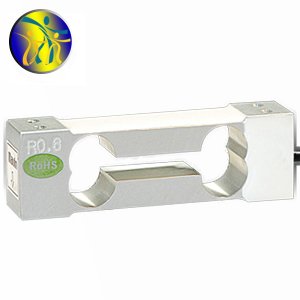

Introduction to NA6 Series Sensor Products

Product brand: Taiwan Mavin
Product series: NA6
Product Type:Single point weighing sensor
High precision, good stability, and easy installation
Application field: Pricing scale, counting scale, balance scale
Range can be selected: 0.3, 0.5, 0.6, 0.75, 1, 2, 3, 4, 5, 7, 10 (kg)
　
Taiwan Mavin weighing sensors are one of our company's key competitive products, with absolute competitive prices, in stock, original, authentic, and reliable! Ensure satisfactory price and quality!
　
We solemnly promise: "If you are not satisfied within three months, you can return or exchange the goods unconditionally at any time, refund the full payment, and do not charge any fees. Two year warranty and free maintenance at any time!
　

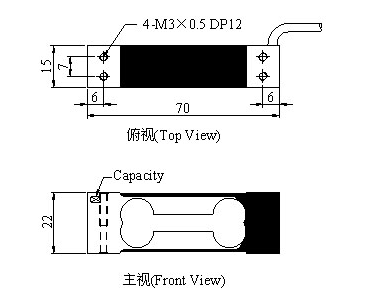

Appearance dimensions of NA6 series sensors



NA6 Series Sensor Technical Data

Rated load	0.3, 0.5, 0.6, 0.75, 1, 2, 3, 4, 5, 7, 10 (kg)
Rated output	(0.85~1.15) mV/V
Nonlinear	0.02 %R.O.
lagging	0.02 %R.O.
Repeatability	0.02 %R.O.
Creep/return to zero (30 minutes)	0.02 %R.O.
Output temperature influence	0.002 %R.O./℃
Zero temperature effect	0.003 %R.O./℃
Zero balance	±0.0200 mV/V
Input impedance	410 ± 15 Ω; 1130 ± 30 Ω
Output impedance	350 ± 5 Ω; 1000 ± 10 Ω
Insulation impedance	≥5000 MΩ/(50VDC)
Safety overload rate	150 %R.O.
Ultimate overload rate	200 %R.O.
Operating temperature range	-20~60 ℃
Recommended operating voltage	5~12 VDC
Maximum working voltage	15 VDC
material quality	aluminium alloy
Protection level	IP66 / IP67
cable	Φ3×30cm
Platform size	200×200 mm
Wiring method	Red: power supply+, black: power supply -, green: signal+, white: signal-

Complete model of NA6 series sensors

NA6-0.3kg，NA6-0.5kg，NA6-0.6kg，NA6-0.75kg，NA6-1kg
NA6-2kg，NA6-3kg，NA6-4kg，NA6-5kg，NA6-7kg，NA6-10kg

Extended Reading

Mechanical installation of linear displacement sensor:
1、 The installation of the linear displacement sensor should leave the margin evenly at both ends. Do not tighten the fixing bracket screws until the limit position is determined. Only after adjusting the stroke can the fixing bracket screws of the linear displacement sensor be tightened.
2、 The pull ball universal head of the pull rod displacement sensor allows for a deviation of 1mm in radius from the center. Of course, the shorter the specification, the smaller the deviation from the center is recommended.
3、 After fixing the linear displacement sensor, when retracting the pull rod, the cylindrical body of the universal ball head should have gaps in four radial directions. Otherwise, adjust the installation position of the universal joint or adjust the installation bracket position near the extended end.
4、 If there is significant misalignment when pulling out the pull rod, the installation bracket close to the plug should be adjusted. This can serve as an auxiliary review method.
5、 The installation rod and pull rod of the pull ball universal joint are allowed to tilt at an angle of ± 12o. But if the alignment deviation and tilt deviation are both significant during installation, it will affect the stability and service life of the electronic ruler. Further adjustments should be made.
6、 The slider electronic ruler can reduce the workload of adjusting the neutral, but the auxiliary extension rod cannot be canceled. Otherwise, it may cause stability and service life due to poor neutral, and even immediately cause the electronic ruler to fail.
7、 After all adjustments are made, tighten the installation screws with a force that should ensure that the grounding resistance is less than 1 Ω. Measure the resistance between the electronic ruler cover screw and the mounting bracket using a multimeter at a gear of 200 Ω.
8、 When using a four wire system or wiring with shielded wires, the grounding end of the electronic ruler should be connected, and the fourth end or shielded wire should be reliably grounded at the end of the electronic control box.
　
The above is [NA6 sensor] NA6-0.3kg~NA6-10kg_ Detailed information of Taiwan Mavin weighing sensor, if you are interested in [NA6 sensor] NA6-0.3kg~NA6-10kg_ If you have any questions about the price, delivery time, model, or inventory of Taiwan Mavin weighing sensors, please feel free to call18520271262 Chen GongObtain [NA6 sensor] NA6-0.3kg~NA6-10kg_ Taiwan MavinLoad CellLatest price details for.
