SM45 sensor: SM45-5KN~SM45-100KN_ German SOEMER weighing sensor

【Guangzhou Zhongxin Automation Technology Co., Ltd】Professional supply of German SOEMRE_ SM45 seriesWeighing sensor[SM45 Sensor] SM45-5KN~SM45-100KN_German SOEMER weighing sensor）Ensure fast delivery time, 100% original import, and strive to become the top brand of sensor sales in China. German SOEMRE_ SM45 series weighing sensor related models: SM45-5KN, SM45-10KN, SM45-20KN, SM45-50KN, SM45-100KN
　

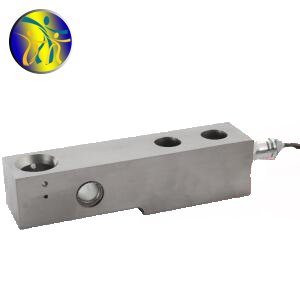

Introduction to SM45 series products

Model: SM45
Brand: SOEMER
Country:German weighing sensor
Name:Cantilever beam weighing sensor
Sealing level: IP68 (IP69K)
5. 10. 20 KN threaded hole M12
50KN and 100KN threaded holes: M20 and M24, respectively
Range: 5KN, 10KN, 20KN, 50KN, 100KN
Applied to weighing scales, containers, track scales, material tanks, etc
　
SM45 series installation dimensions
　

　
SM45 series technical data


　
SM45 series complete model

SM45-5KN，SM45-10KN，SM45-20KN，SM45-50KN，SM45-100KN

Expand reading
　
Product features:
1. The product material of SOEMRE is all stainless steel metal welded and sealed, fundamentally solving the problem of corrosion and cracking at the joint caused by the welding of alloy steel elastic body and stainless steel shell materials of other brand products. Truly achieving a durable IP67-68 protection level in harsh environments.
2. All products of SOEMRE are made of high-strength acid, alkali, and aging resistant cables and joints, and negative pressure suction sealing measures are taken during packaging to ensure the reliability of the protection level.
3. All products launched by SOEMRE in China have an accuracy level of OIMLC3-C4, which is internationally certified.
4. The RC1 and RC3 cylindrical sensors of SOEMRE are designed with reasonable body height and curvature radius of the force surface, so they have a swinging amplitude of up to 13mm while ensuring self resetting.
5. All products of SOEMRE use high-quality 1100 Ω high resistance strain gauges, and the increase in input and output impedance greatly reduces the load on the electrical measurement system, while also reducing the resulting electric heating effect and improving its temperature performance.
6. Possess Eex ia IIC T6... T4 explosion-proof system certification and manufacturing capabilities, and can provide explosion-proof products according to user needs.
7. We can provide high-temperature products that can withstand temperatures up to 250 ℃ according to user needs.
8. We can provide lightning protection products with built-in lightning arresters (4X) according to user needs.
9. Digital products that can provide digital output.
10. Various forms of sensors can be designed according to customer needs. Technical information is payable upon request, please feel free to inquire.
　
Overview of cantilever beam weighing sensors
The cantilever beam type steel weighing sensor is fixed at one end and loaded at the other end, using steel balls for force transmission. It is supported by upper and lower pressure heads or a double ball head structure, with a good sealing structure. After being subjected to force, the automatic centering is good, easy to install, convenient to use, and has good interchangeability.
　
The above are [SM45 Sensor] SM45-5KN~SM45-100KN_ Detailed information on German SOEMER weighing sensors, if you are interested in [SM45 sensors] SM45-5KN~SM45-100KN_ If you have any questions about the price, delivery time, model, or inventory of German SOEMER weighing sensors, please feel free to call us18520271262 Obtain [SM45 Sensor] SM45-5KN~SM45-100KN_ Latest price details for German SOEMER weighing sensors.
