Korean Panax CL Sensor CL-500kgf-CL-500tf_ Korean Dacell weighing sensor

Guangzhou Zhongxin Automation Technology Co., Ltd. specializes in supplying Korean Dacell Dana CL seriesWeighing sensor，Korean Panax CL Sensor CL-500kgf-CL-500tf_Korean Dacell weighing sensorEnsure fast delivery time, 100% original import, and improve complete automated weighing solutions for various industrial fields. Korean Dacell CL series weighing sensor related models: CL-500kff; CL-1tf, CL-2tf, CL-5tf, CL-10tf, CL-20tf, CL-50tf, CL-100tf, CL-200tf, CL-300tf, CL-500tf.
　
Korean Dacell CL weighing sensors are one of our company's key competitive products, with absolute competitive prices, in stock, original, authentic, and reliable! Ensure satisfactory price and quality!
　
We solemnly promise: "If you are not satisfied within three months, you can return or exchange the goods unconditionally at any time, refund the full payment, and do not charge any fees.". Two years warranty, free maintenance at any time!

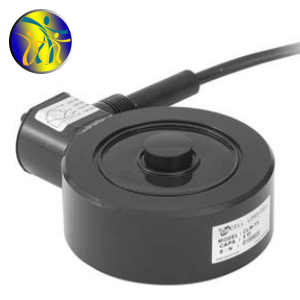

CL Weighing Sensor Product Introduction

Product brand: Dacell
Product Name:Korean weighing sensor
Product model: CL
Product type: spoke type weighing sensor
Protection level: IP67/CLH: IP60 (nickel plated)
Product material: high-strength alloy steel
High precision, low height, and easy to set up
Construction welded to the diaphragm and completely sealed
Application areas: hopper scale, box filling scale, load testing machine, etc
Range: 500kgf; 1,2,5, 10, 20, 50, 100, 200, 300, 500 tf

CL weighing sensor installation dimensions



Technical specifications of CL weighing sensor



CL weighing sensor complete model

Dacell CL-1tf sensor, Dacell CL-10tf sensor, Dacell CL-100tf sensor
Cell CL-2tf sensor, Cell CL-20tf sensor, Cell CL-200tf sensor
Dacell CL-5tf sensor, Dacell CL-50tf sensor, Dacell CL-300tf sensor
Dacell CL-500kff sensor
　
Expand reading
　
The foundation and methods of protective sealing
The foundation of the sealing protection of the weighing sensor is to apply the protective surface adhesive to the resistance strain gauge. Plastic protective surface:
(1) Dielectric strength; 5000M, volume resistivity 10141018 Ω. cm;
(2) Has strong cohesion with the metal surface, from this interface to prevent moisture from penetrating;
(3) Low moisture absorption and strong cohesion;
(4) The curing reaction will not release harmful compounds, and a non corrosive resistance strain gauge;
(5) The softness of the cured film and the elastic constant of the elastic component within the strain range.
The plastic brushing of the resistance strain gauge protective surface and the time for brushing before cleaning are essential. In the production process, the weighing sensor completes two tasks, one of which is patch, pressure curing, curing relief, and quality inspection
Investigate the quality standards for each process of pasting terminals, bridging wire groups, and measuring their insulation resistance; The second is the overall cleaning of elastic components during the process of acceptable quality. After the overall cleaning of the elastic components, they must be quickly placed in a high-temperature test container, heated at 40 ℃, and kept warm for a certain period of time. The protective surface glue (1) for brushing teeth from the elastic components in the packaging box must be removed under dry environmental conditions. Its purpose is to prevent moisture during the production process of resistance strain gauges, lay the foundation, and ultimately protect and seal them.


The above isKorean Panax CL Sensor CL-500kgf-CL-500tf_ Korean Dacell weighing sensorDetailed information, if you are interested inKorean Panax CL Sensor CL-500kgf-CL-500tf_ Korean Dacell weighing sensorIf you have any questions about the price, delivery time, model, or inventory, please feel free to call us18520271262obtainKorean Panax CL Sensor CL-500kgf-CL-500tf_ Korean Dacell weighing sensorLatest price details for.
