ILK sensor: ILK-5kg~ILK-35kg_ UK OAP Load Cell

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　

【Guangzhou Zhongxin Automation Technology Co., Ltd】Professional supply of ILK series UK OAP box type weighing sensors, (ILK sensors) ILK-5kg~ILK-35kg_UK OAP Load Cell）Ensure fast delivery time, 100% genuine products, 10 years of industry experience, focus on high-end high-quality sensor services, and provide complete automation solutions. ILK series UK OAP single point load cell related models: ILK-5kg, ILK-10kg, ILK-15kg, ILK-20kg, ILK-30kg, ILK-35kg, ILK-50kg, ILK-100kg, ILK-150kg, ILK-200kg, ILK-250kg, ILK-A-50kg, ILK-A-100kg, ILK-A-150kg, ILK-A-200kg, ILK-A-250kg

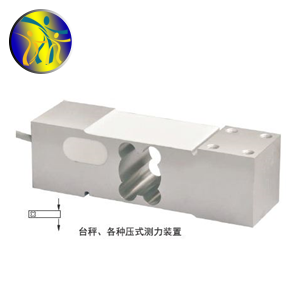

Introduction to ILK Series Weighing Sensors

English name:UK Load Cell
Product brand: UK OAP
Product characteristics:Box type weighing sensor
★. Made of high-quality alloy steel materials
★. Material options: alloy steel, stainless steel
★. Easy installation, protection level IP65
★. Maximum scale platform size 400 * 400mm
★. Optional range: 5kg~250kg
The. ILK-A series is suitable for electronic platform scales, ingredient scales, packaging scales, dynamic detection systems, and platform scales.

Installation dimensions of ILK series weighing sensors



Complete model of ILK series weighing sensors

ILK Series UK OAP UK OAP ILK-50kg load cell UK OAP ILK-100kg load cell UK OAP ILK-150kg load cell UK OAP ILK-200kg load cell UK OAP ILK-250kg load cell	ILK Series American Sunwells SUNCELLS ILK-50kg load cell SUNCELLS ILK-100kg load cell SUNCELLS ILK-150kg load cell SUNCELLS ILK-200kg load cell SUNCELLS ILK-250kg load cell
ILK series American mkcells MKCELLS ILK-50kg load cell MKCELLS ILK-100kg load cell MKCELLS ILK-150kg load cell MKCELLS ILK-200kg load cell MKCELLS ILK-250kg load cell	ILK series Ningbo Keli Ningbo Keli ILK-50kg weighing sensor Ningbo Keli ILK-100kg weighing sensor Ningbo Keli ILK-150kg weighing sensor Ningbo Keli ILK-200kg weighing sensor Ningbo Keli ILK-250kg weighing sensor

Extended Reading
　
The Origin of Single Point Load Cell
In the discussion at the first International Industrial Weighing and Force-measuring Exhibition in 1979, a new term emerged in the terminology of sensors: "single point" force sensing. The latest generation of retail scales did not include any auxiliary flexors supporting the upper weighing software platform, which was rigidly fixed to the center sensor. The design of this type of single point force sensor is based on the principle of parallelogram, but an additional central cross beam should be provided for the strain gauge to complete the task of measuring the beam and deflection components in the top and bottom components of the parallelogram. Its advantage is that the strain gauge leaves the position where there is a twisting effect caused by eccentric loading, while increasing the rigidity of the structure. This type of force sensor is subjected to eccentric loading tests at the manufacturing plant. Apply 1/3 of the sensor's ultimate load in different directions within a radius of 200 millimeters. Each sensor must operate within ± 1/3000 of the center reading value, a typical design. Another eye-catching new news in the field of force sensors is the promotion and application of the principle of gyroscopes. The gyroscopic force measurement system utilizes the proprietary characteristics of the gyroscope, making it a precise, linear, and reproducible force sensor. After studying the anti hysteresis, anti drift, and anti temperature effects of this force sensor, the gyroscopic force measurement system can transmit direct digital signals to the display unit with high anti-interference performance. These characteristics make it completely independent of harsh environmental conditions. The rotor of the gyroscope rotates at a constant speed, and the horizontal axis of the rotor is installed in a universal support. There is an external universal support suspended by a movable joint, which also supports one end of the rotatable lever under the yoke.

matters needing attention
Sensors should be kept away from higher heat sources as much as possible during use.
When designing and installing the loading device, it should be ensured that the action line of the loading force coincides with the force axis of the sensor to minimize the impact of inclined and eccentric loads.
To prevent chemical corrosion, it is advisable to coat the outer surface of the sensor with Vaseline during installation.
The sensor casing, protective cover plate, and lead connector are all sealed. Users are not allowed to open the packaging or forcibly pull the lead without authorization. If any fault problems are found, they should be sent to the manufacturer for maintenance.
　
Above [ILK sensor] ILK-5kg~ILK-35kg_ Detailed information on OAP load cells in the UK, if you are interested in [ILK sensors] ILK-5kg~ILK-35kg_ If you have any questions about the price, delivery time, model, and inventory of OAP weighing sensors in the UK, please feel free to call18520271262 Obtain [ILK sensor] ILK-5kg~ILK-35kg_ Latest price details for OAP load cells in the UK.
