YBSC sensor: YBSC-0.1t~YBSC-50t_ UK OAP Load Cell

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　　 　 　

【Guangzhou Zhongxin Automation Technology Co., Ltd】Professional supply of YBSC-A series UK OAP column type weighing sensors, (YBSC sensors) YBSC-0.1t~YBSC-50t_UK OAP Load Cell）Ensure fast delivery time, 100% genuine products, 10 years of industry experience, focus on high-end high-quality sensor services, and provide complete automation solutions. YBSC-A series UK OAP column load cell related models: YBSC 0.1t, YBSC 0.2t, YBSC 0.5t, YBSC 1t, YBSC 2t, YBSC 5t, YBSC 10t, YBSC 20t, YBSC 30t, YBSC 50t; YBSC-A-0.1t, YBSC-A-0.2t, YBSC-A-0.5t, YBSC-A-1t, YBSC-A-2t, YBSC-A-5t, YBSC-A-10t, YBSC-A-20t, YBSC-A-30t, YBSC-A-50t

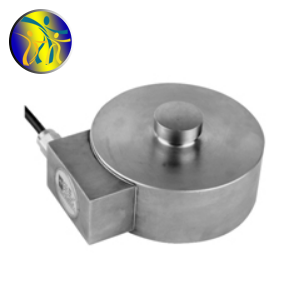

YBSC-A series weighing sensor product introduction

Product Name:UK Load Cell
Product name: UK OAP weighing sensor
Product characteristics:Small column load cell
★. Made of high-quality alloy steel materials
★. Material options: alloy steel, stainless steel
★. Easy installation, high protection level IP68
The YBSC-A series is suitable for material filling scales and various pressure measuring occasions
★. Range options: 0.1t, 0.2t, 0.5t, 1t, 2t, 5t, 10t, 20t, 30t, 50t

Technical parameters of YBSC-A series weighing sensors

Technical PARAMETR | 4Wires Exc+(Red); Exc - (Black); Sig+(Green); Sig - (White)
Rated load:	0.1t,0.2t,0.5t,1t,2t,5t,10t,20t,30t,50t	Insulation resistance:	≥5000MΩ
Accuracy level:	C3	Temperature compensation range:	-10℃_+40℃
Sensitivity:	2.0±0.05mv/v(0.05-1t) 2.0±0.02mv/v(2-50t)	Operating temperature range:	-30_+70℃
Comprehensive error:	± 0.05% F.S (0.05-1t)	Safe load:	150% F.S
	±0.3%F.S(2~50t)	Destructive load:	180% F.S
Creep (30min):	±0.0.05%F.S	Rated excitation voltage:	10-12V DC
Zero temperature effect:	±0.005%F.S/10℃	Maximum excitation voltage:	15VDC
Sensitivity temperature influence:	±0.005%F.S/10℃	Sealing level:	IP68
Input impedance:	400±20Ω	Material:	alloy steel
Output impedance:	352±3Ω	Cable:	3m (0.05-1t) 6m(2~5t) 12m(10~50t)

　
YBSC-A series weighing sensor complete model

YBSC-A-0.1t sensor, YBSC-A-1t sensor
YBSC-A-0.2t sensor, YBSC-A-2t sensor
YBSC-A-0.5t sensor, YBSC-A-5t sensor
YBSC-A-10t sensor, YBSC-A-20t sensor
YBSC-A-30t sensor, YBSC-A-50t sensor
　
Extended Reading
　
matters needing attention
Sensors should be kept away from higher heat sources as much as possible during use.
When designing and installing the loading device, it should be ensured that the action line of the loading force coincides with the force axis of the sensor to minimize the impact of inclined and eccentric loads.
To prevent chemical corrosion, it is advisable to coat the outer surface of the sensor with Vaseline during installation.
The sensor casing, protective cover plate, and lead connector are all sealed. Users are not allowed to open the packaging or forcibly pull the lead without authorization. If any fault problems are found, they should be sent to the manufacturer for maintenance.
　　
Above [YBSC sensor] YBSC-0.1t~YBSC-50t_ Detailed information on OAP load cells in the UK, if you are interested in [YBSC sensors] YBSC-0.1t~YBSC-50t_ If you have any questions about the price, delivery time, model, and inventory of OAP weighing sensors in the UK, please feel free to call18520271262 Obtain YBSC sensor YBSC-0.1t~YBSC-50t_ UK OAPLoad CellLatest price details.
