[Korean bongshin] OBBH-10kgf~OBBH-500kgfs_ Korean Bongshin Weighing Sensor

【Guangzhou Zhongxin Automation Technology Co., Ltd】Professional supply of Korean Bongshin Bongshin OBBH series weighing sensors（OBBH-10 kgf~OBBH-500 kgf_Korean Bongshin weighing sensor）Ensure fast delivery time, 100% original import, and improve complete automated weighing solutions for various industrial fields. Korean Bongshin Bongshin OBBH seriesWeighing sensorRelated models: OBBH-10kgf, OBBH-20kgf, OBBH-50kgf, OBBH-100kgf, OBBH-200kgf, OBBH-500kff
　
Bongshin OBBH weighing sensors from South Korea are one of our company's key competitive products, with absolute competitive prices. They are available in stock, original, authentic, and reliable! Ensure satisfactory price and quality!
　
We solemnly promise: "If you are not satisfied within three months, you can return or exchange the goods unconditionally at any time, refund the full payment, and do not charge any fees.". Two years warranty, free maintenance at any time!

Introduction to the OBBH series products of BONGSHIN in South Korea

English name: BONGSHIN, South Korea
Chinese name: Korea Fengxin
Product model: OBBH

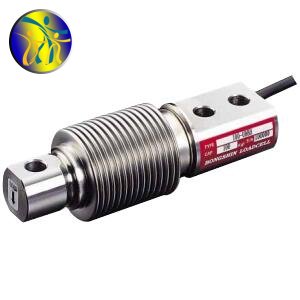

Product type:Bellows weighing sensor
Range options: 10kg, 20kg, 50kg, 100kg, 200kg, 500kgf

Bongshin, South Korea, believes in the installation dimensions of OBBH series

range	A	B	C	D	E	F	G	H	I	J	K	L	P	Q	S	KG
10~100kgf	120	10	82	18	10	38	20	10	32	8.5	8.5	21	41	15	20	0.9
200~500kgf	210	22	133	40	15	50	29	14	52	12	14	44	75	25	40	1.9

Bongshin, South Korea believes in OBBH series technical indicators



Bongshin, South Korea, believes in OBBH series corrugated pipe sensors

Bongshin OBBH-10kgf weighing sensor
Bongshin OBBH-20kgf weighing sensor
Bongshin OBBH-50kgf weighing sensor
Bongshin OBBH-100kgf weighing sensor
Bongshin OBBH-200kgf weighing sensor
Bongshin OBBH-500kff weighing sensor
　
Expand reading

Overview of corrugated tube weighing sensors
The corrugated tube weighing sensor can withstand two forms of force: tension and compression. Strong resistance to eccentric loads and fatigue. Stainless steel corrugated pipe welding sealing can be used for harsh working conditions. Suitable for measuring and controlling force values on electronic scales, belt scales, hopper scales, and other equipment.
　
Brand Introduction
Since 1985, the development of industrial weighing sensor accessories has spread to South Korea's BONGSHIN Weighing Sensor Co., Ltd., gantry scales, weighing systems, and digital indicators. Despite continuous research efforts, leaders in the production of a complete product can only hope for success, but the results have been recognized by numerous industries as the most recognized source of domestic and foreign revenue worldwide, along with the United States and Europe, Japan and 38 other countries offer quality delivery for their exports.
In addition, OIML, NTEP, as well as the United States and Europe, have obtained CE certification. Continuously developing, strict quality control, and improving products are better than the best, and I will do my best to serve.
　
The above isOBBH-10 kgf~OBBH-500 kgf_ Korean Bongshin weighing sensorDetailed information, if you are interested inOBBH-10 kgf~OBBH-500 kgf_ Korean Bongshin weighing sensorIf you have any questions about the price, delivery time, model, or inventory, please feel free to call us18520271262obtainOBBH-10kgf~OBBH-500kgfKorean Bongshin weighing sensorLatest price details for.
