【 NHS-SS sensor 】 NHS-SS-1t~NHS-SS-150t_ UK OAP Load Cell

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　 　 　

【Guangzhou Zhongxin Automation Technology Co., Ltd】Professional supply of NHS-SS series UK OAP torsion ring load cells（　【 NHS-SS sensor 】 NHS-SS-1t~NHS-SS-150t_ UK OAPLoad Cell）Ensure fast delivery time, 100% genuine products, 10 years of industry experience, focus on high-end high-quality sensor services, and provide complete automation solutions. NHS-SS series UK OAP torsion ring pull type load cell related models: NHS-SS-1t, NHS-SS-2.2t, NHS-SS-3.3t, NHS-SS-4.7t, NHS-SS-10t, NHS-SS-15t, NHS-SS-22t, NHS-SS-33t, NHS-SS-47t, NHS-SS-68t, NHS-SS-100t, NHS-SS-150t, NHS-A-1t, NHS-A-2.2t, NHS-A-3.3t, NHS-A-4.7t, NHS-A-10t, NHS-A-15t, NHS-A-22t, NHS-A-33t, NHS-A-47t t, NHS-A-68t, NHS-A-100t, NHS-A-150t
　

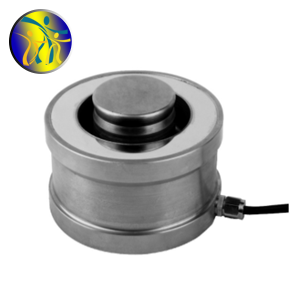

NHS-SS series weighing sensor product introduction

Product name:UK OAP Load Cell
Product characteristics: Torsion ring type weighing sensor
★ Protection level: IP68
★ Made of high-quality alloy steel material
★ Working temperature range: -30 ℃~+70 ℃
★ Material options: stainless steel, alloy steel
★ Applied in industrial weighing fields such as platform scales, truck scales, and process weighing
★ Range options: 1t, 2.2t, 3.3t, 4.7t, 10t, 15t, 22t, 33t, 47t, 68t, 100t, 150t
　
Technical specifications of NHS-SS series weighing sensors
　

Technical PARAMETR | 4Wires Exc+(Red); Exc - (Black); Sig+(Green); Sig - (White)
Rated load:	1，2.2，3.3，4.7，10，15，22，33，47，68，100，150t	Insulation resistance:	≥5000MΩ
Maximum excitation voltage:	15VDC	Rated temperature:	-10_+40℃
Sensitivity:	2.85±0.01mv/v	Operating temperature range:	-30_+70℃
Comprehensive error:	±0.03, ±0.05, ±0.1%F.S	Safe load:	150% F.S
Lag error:	±0.03%F.S	Destructive load:	200% F.S
Creep (30min):	±1%F.S	Recommended excitation voltage:	10-12V DC
Zero temperature effect:	±0.03%F.S/10℃	Sealing level:	IP68
Sensitivity temperature influence:	±0.03%F.S/10℃	Material:	alloy steel
Input impedance:	1460±10Ω		Stainless steel
Output impedance:	1402±5Ω	Cable:	3m

　
Complete model of NHS-SS series weighing sensor

NHS regular type
NHS-1t，NHS-2.2t，NHS-3.3t，NHS-4.7t，NHS-10t，NHS-15t，NHS-22t，NHS-33t，NHS-47t，NHS-68t，NHS-100t，NHS-150t
　
NHS-A alloy steel
NHS-A-1t，NHS-A-2.2t，NHS-A-3.3t，NHS-A-4.7t，NHS-A-10t，NHS-A-15t，NHS-A-22t，NHS-A-33t，NHS-A-47t，NHS-A-68t，NHS-A-100t，NHS-A-150t
　
NHS-SS stainless steel
NHS-SS-1t，NHS-SS-2.2t，NHS-SS-3.3t，NHS-SS-4.7t，NHS-SS-10t，NHS-SS-15t，NHS-SS-22t，NHS-SS-33t，NHS-SS-47t，NHS-SS-68t，NHS-SS-100t，NHS-SS-150t
　
NHS-ASS stainless steel
NHS-ASS-1t，NHS-ASS-2.2t，NHS-ASS-3.3t，NHS-ASS-4.7t，NHS-ASS-10t，NHS-ASS-15t，NHS-ASS-22t，NHS-ASS-33t，NHS-ASS-47t，NHS-ASS-68t，NHS-ASS-100t，NHS-ASS-150t
　
Extended Reading

The above is for the UKOAP_China General Agent 【 Zhongxin 】★Automation solemnly promises:
Original and authentic products for sale, with good quality, low price, high-quality and professional communication, fast transportation, and the best service. Give you the best deal every day! Welcome to order. Attention: If you need a large quantity or cannot find the product you need in our store, please feel free to contact us at any time. We always provide you with the best quality and highly competitive prices. We solemnly promise that if you are not satisfied within 3 months, you will return or exchange the goods unconditionally, without any charge, with a 2-year warranty and free repair at any time.


Fundamentals and methods of protective sealing
The foundation of the sealing protection of the weighing sensor is the application of protective surface adhesive to the resistance strain gauge. Plastic protective surface:
(1) Dielectric strength> 5000M, volume resistivity 10141018 Ω. cm;
(2) Has a strong cohesion with the metal surface, from this interface to prevent moisture penetration;
(3) Low moisture absorption and cohesive strength;
(4) The curing reaction will not release harmful compounds, and a non corrosive resistance strain gauge;
(5) The softness of the cured film and the elastic constant of the elastic component within the strain range.
The plastic brushing of the resistance strain gauge protective surface and the brushing time before cleaning are essential. During the production process, the weighing sensor completes the following two tasks, one of which is patch, pressure curing, curing relief, and quality inspection
Investigate, paste terminals, bridge crimping groups, and measure the quality standards of their insulation resistance in each process; The second is the overall cleaning of elastic components during the process of acceptable quality. After the overall cleaning of the elastic components, they must be quickly placed in a high-temperature test container, heated at 40 ℃, and kept warm for a certain period of time. The protective surface glue (1) for brushing teeth from the elastic components in the packaging box must be removed under dry environmental conditions. Its purpose is to prevent moisture during the production process of resistance strain gauges, lay the foundation, and ultimately protect and seal them.
　
Above [NHS-SS sensor] NHS-SS-1t~NHS-SS-150t_ Detailed information on OAP load cells in the UK, if you are interested in [NHS-SS sensors] NHS-SS-1t~NHS-SS-150t_ If you have any questions about the price, delivery time, model, and inventory of OAP weighing sensors in the UK, please feel free to call18520271262 Obtain [NHS-SS Sensor] NHS-SS-1t~NHS-SS-150t_ Latest price details for OAP load cells in the UK.
