Guangzhou Zhongxin Automation Technology Co., Ltd】Professional supply of DEE series UK OAP pull type S-type weighing sensors, (【 DEE sensors 】 DEE-50kg~DEE-7t_
UK OAP Load Cell）Ensure fast delivery time, 100% genuine products, 10 years of industry experience, focus on high-end high-quality sensor services, and provide complete automation solutions. DEE series UK OAP pull type S-type load cell related models: DEE-50kg, DEE-100kg, DEE-150kg, DEE-200kg, DEE-250kg, DEE-300kg, DEE-500kg, DEE-750kg, DEE-1t, DEE-1.2t, DEE-1.5t, DEE-2t, DEE-3t, DEE-5t, DEE-7t

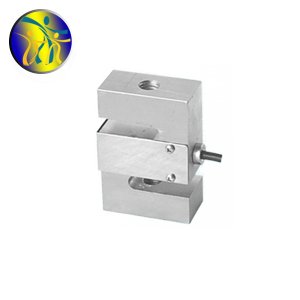

DEE series weighing sensor product introduction
English brand: UK OAP
Product Name:
Load CellProduct characteristics:
S-type load cell★ Made of high-quality alloy steel material
★ Material selection: stainless steel
★ Protection level: IP65 IP68
★ DEE series shapes available: right angle or rounded corner
Mainly used in hook scales, belt scales, and batching systems.
★ Range options: 50kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 750kg; 1t, 1.5t, 2t, 3t, 5t, 7t.
DEETechnical specifications of series weighing sensors
| Technical PARAMETR | 4Wires Exc+(Red); Exc - (Black); Sig+(Green); Sig - (White) |
| Rated load: |
50，100，150，200，250，300，500，750kg，1t，1.5t，2t，3t，5t，7.5t |
Insulation resistance: |
≥5000MΩ |
| Accuracy level: |
0.03 |
Rated temperature: |
-10_+40℃ |
| Sensitivity: |
2.0±0.003mv/v |
Operating temperature range: |
-30_+70℃ |
| Linear error: |
±0.03%F.S |
Safe load: |
150% F.S |
| Lag error: |
±0.03%F.S |
Destructive load: |
200% F.S |
| Creep (30min): |
±0.03%F.S |
Rated excitation voltage: |
10-12V DC |
| Zero temperature effect: |
±0.02%F.S/10℃ |
Sealing level: |
IP67 |
| Sensitivity temperature influence: |
±0.02%F.S/10℃ |
Material: |
alloy steel |
| Input impedance: |
400±20Ω |
Stainless steel |
| Output impedance: |
352±5Ω |
Cable: |
3m |
Complete model of DEE series weighing sensors
DEE ordinary type
DEE-50kg,DEE-100kg,DEE-150kg,DEE-200kg,DEE-250kg,DEE-300kg,DEE-500kg,DEE-750kg,DEE-1t,DEE-1.2t,DEE-1.5t,DEE-2t,DEE-3t,DEE-5t,DEE-7t
DEE-A alloy steel
DEE-A-50kg,DEE-A-100kg,DEE-A-150kg,DEE-A-200kg,DEE-A-250kg,DEE-A-300kg,DEE-A-500kg,DEE-A-750kg,DEE-A-1t,DEE-A-1.2t,DEE-A-1.5t,DEE-A-2t,DEE-A-3t,DEE-A-5t,DEE-A-7t
DEE-SS stainless steel
DEE-SS-50kg, DEE-SS-100kg, DEE-SS-150kg, DEE-SS-200kg, DEE-SS-250kg, DEE-SS-300kg, DEE-SS-500kg, DEE-SS-750kg; DEE-SS-1t, DEE-SS-1.5t, DEE-SS-2t, DEE-SS-3t, DEE-SS-5t, DEE-SS-7t
Extended Reading
The above is the UK OAP_China General Agent 【 Zhongxin ★ Automation 】 solemnly promises:Original and authentic products for sale, with good quality, low price, high-quality and professional communication, fast transportation, and the best service. Give you the best deal every day! Welcome to order. Attention: If you need a large quantity or cannot find the product you need in our store, please feel free to contact us at any time. We always provide you with the best quality and highly competitive prices. We solemnly promise that if you are not satisfied within 3 months, you will return or exchange the goods unconditionally, without any charge, with a 2-year warranty and free repair at any time.
Fundamentals and methods of protective sealing
The foundation of the sealing protection of the weighing sensor is the application of protective surface adhesive to the resistance strain gauge. Plastic protective surface:
(1) Dielectric strength> 5000M, volume resistivity 10141018 Ω. cm;
(2) Has a strong cohesion with the metal surface, from this interface to prevent moisture penetration;
(3) Low moisture absorption and cohesive strength;
(4) The curing reaction will not release harmful compounds, and a non corrosive resistance strain gauge;
(5) The softness of the cured film and the elastic constant of the elastic component within the strain range.
The plastic brushing of the resistance strain gauge protective surface and the brushing time before cleaning are essential. During the production process, the weighing sensor completes the following two tasks, one of which is patch, pressure curing, curing relief, and quality inspection
Investigate, paste terminals, bridge crimping groups, and measure the quality standards of their insulation resistance in each process; The second is the overall cleaning of elastic components during the process of acceptable quality. After the overall cleaning of the elastic components, they must be quickly placed in a high-temperature test container, heated at 40 ℃, and kept warm for a certain period of time. The protective surface glue (1) for brushing teeth from the elastic components in the packaging box must be removed under dry environmental conditions. Its purpose is to prevent moisture during the production process of resistance strain gauges, lay the foundation, and ultimately protect and seal them.
Above [DEE sensor] DEE-50kg~DEE-7t_ Detailed information on OAP load cells in the UK, if you are interested in [DEE sensors] DEE-50kg~DEE-7t_ If you have any questions about the price, delivery time, model, and inventory of OAP weighing sensors in the UK, please feel free to call
18520271262 Obtain [DEE sensor] DEE-50kg~DEE-7t_ Latest price details for OAP load cells in the UK.
Sales Engineer - Miss Chen
