1、 Introduction to the PR6241 Load Cell Product of Germany Inteco
1. Product Introduction
Inteco (Sedoris), GermanyBrandedThe PR6241 S-type pressure sensor is specifically designed for weighing small and medium-sized process vessels and for high-precision measurement. Applied to explosion-proof zones 1, 2, 20, 21, 22, and FM DIV 1.
PR 6241 seriesLoad CellIt is specially designed for weighing small and medium-sized process containers and high-precision ingredients. The unique design principle, combined with the FlexLock installation kit, enables it to balance the vibration caused by mechanical or container thermal expansion and contraction, as well as the support structure.
2. Product features:
(1) Easy to install and use
(2) Easy to use matching sensor consistency output
(3) All stainless steel structure
(4) Wide temperature adaptation range
(5) Shockproof
(6) Sealed welding, IP68 protection level (immersed in 1.5m underwater for 10000 hours)
(7) Provide explosion-proof models
(8) W& M certification (OIML R60)
3. Application case:
(1) Filling volume control
(2) Filling and metering
(3) Weighing
2、 Technical parameters of German Inteco PR6241 weighing sensor product
1. Sensor structure
S-shaped design, integrated load. All stainless steel structure, sealed welding, inert gas filling.
2. Materials
Sensor: 1.4542 (DIN 17440) similar to S604, S622 (B.S.), 17-4PH
3. Protection
IP 68, IEC 529 (equivalent to NEMA 6). The sensor can be submerged in 1.5m of water for 10000 hours.
Strong and flexible; Sheath: TPE Thermopel. Elastomere, color: gray (explosion-proof: blue); Diameter: 5 mm, cable 4 x 0.35 mm2; Length: 5 meters
4. Bending radius
Fixed installation: ≥ 50mm; Flexible installation: ≥ 150mm
5. PR 6241/ E certification certificate
EX: II 1G EEx ia IIC T6, II 1D IP65 85 ° C; Registration number: PTB 02 ATEX 2059, T Å V 03 ATEX 2301x

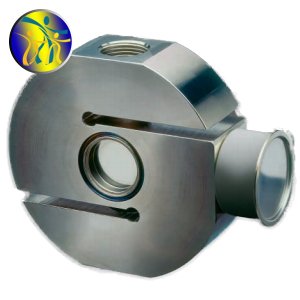

3、 Actual photo of the PR6241 weighing sensor product from Germany's Inteco
4、 Introduction to the Product Model of the PR6241 Load Cell from Germany Intec
PR6241/12D1 (with a range of 100kg)
PR6241/22D1 (with a range of 300kg)
PR6241/32D1 (with a range of 300kg)
PR6241/52D1 (with a range of 500kg)
PR6241/13D1 (with a range of 1t)
PR6241/23D1 (with a range of 2t)
PR6241/33D1 (with a range of 3t)
PR6241/53D1 (range 5t)
PR6241/22C3 (with a range of 200kg)
PR6241/32C3 (with a range of 300kg)
PR6241/52C3 (with a range of 500kg)
PR6241/13C3 (with a range of 1t)
PR6241/23C3 (with a range of 2t)
PR6241/33C3 (with a range of 3t)
PR6241/53C3 (range 5t)
PR6241/22C6 (with a range of 200kg)
PR6241/32C6 (with a range of 300kg)
PR6241/52C6 (with a range of 500kg)
PR6241/13C6 (with a range of 1t)
PR6241/23C6 (with a range of 2t)
PR6241/33C6 (range 3t)
5、 Product dimensions of the PR6241 weighing sensor from Germany's Inteco
