MS-3-100kg_ MS-3-1000kg_ AC Load Cell ☆ Agency in the United States

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
【Guangzhou Zhongxin Automation Technology Co., Ltd】Professional supplyAC load cell in the United States, [MS-3 sensor] MS-3-100kg_ MS-3-1000kg_ AC weighing sensors in the United States ☆ act as agents, ensuring fast delivery time and 100% genuine products, striving to become the top brand for sensor sales in China. AC MS-3 series in the United StatesLoad CellRelated models: MS-3-100 kg, MS-3-200 kg, MS-3-300kg, MS-3-500kg, MS-3-700kg, MS-3-1000kg, MS-3-1t

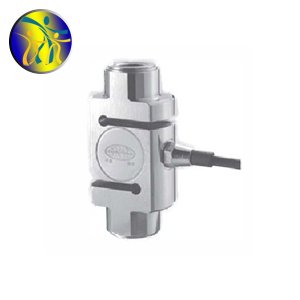

Introduction to MS-3 Series Weighing Sensors

Product brand: AC, USA
Product series: MS-3
Product Type:S-type load cell
Material selection: alloy steel, stainless steel optional
High precision, good stability, and easy installation
Application: tension machine, hopper scale, belt scale, testing machine
Range can be selected: 100 kg, 200 kg, 300 kg, 500 kg, 700 kg, 1000 kg, 1 t

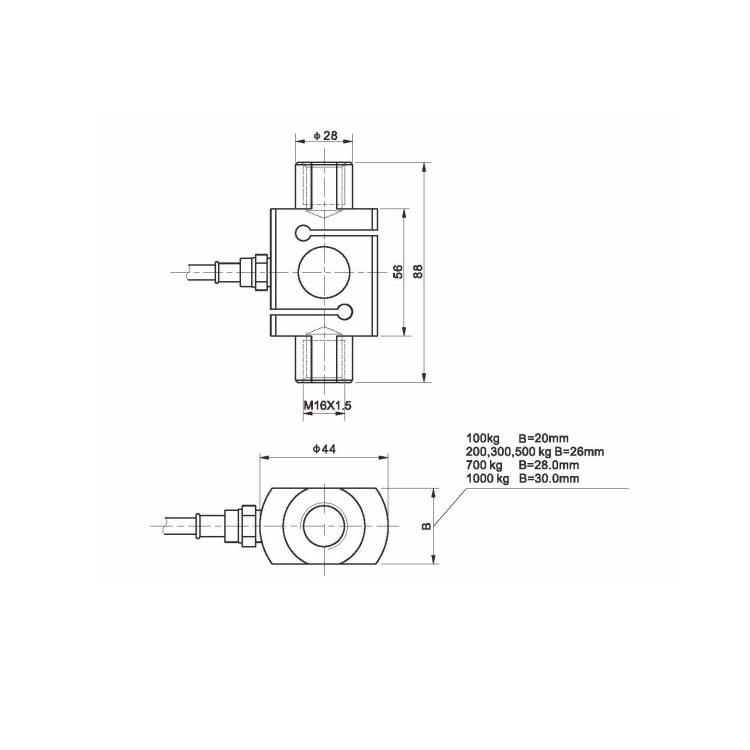

MS-3 series weighing sensorAppearance size

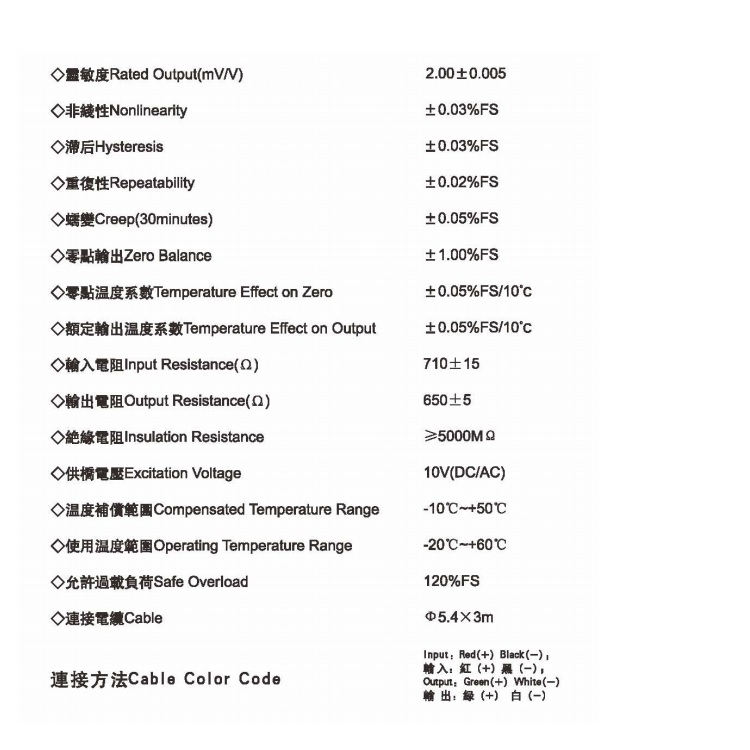

MS-3 series weighing sensortechnical data

MS-3Main technical indicators Specifications
sensitivity	2±0.005	Input resistance	710±15
Nonlinear	±0.03%FS	Output resistance	650±5
lagging	±0.03%FS	insulation resistance	≥5000MΩ
Repeatability	±0.02%FS	Supply voltage	10V(DC/AC)
creep	±0.05%FS	Temperature compensation range	-10℃~+50℃
Zero point output	±1.00%FS	Operating temperature range	-20℃~+60℃
zero temperature	±0.05%FS/10℃	Permissible overload load	120% FS
Rated output stability coefficient	±0.05%FS/10℃	Connecting cables	5.4*3M(5M)
Connection method	Input: Red (+) Black (-); Output: Green (+) White (-)

Complete model of MS-3 series weighing sensor

MS-3-100KG Load Cell
MS-3-200KG Load Cell
MS-3-300KG weighing sensor
MS-3-500KG weighing sensor
MS-3-700kg load cell
MS-3-1000kg load cell
　
Extended Reading

The above is from the United StatesAC sensor brand_China General Agent 【 Zhongxin ★ Automation 】 solemnly promises：
Original and authentic products for sale, with good quality, low price, high-quality and professional communication, fast transportation, and the best service. Give you the best deal every day! Welcome to order. Attention: If you need a large quantity or cannot find the product you need in our store, please feel free to contact us at any time. We always provide you with the best quality and highly competitive prices. We solemnly promise that if you are not satisfied within 3 months, you will return or exchange the goods unconditionally, without any charge, with a 2-year warranty and free repair at any time.
　
Performance indicators of weighing sensors
The performance of a weighing system can be measured by indicators such as linearity, hysteresis, repeatability, and creep.
Linearity: Indicates the degree of consistency between the actual output of the system and the theoretical straight line. As shown in the figure, when linear errors occur, the output of the system is correct at no load and full load, but the input-output points between these two points are inconsistent with the ideal state. Linear error is the maximum difference between the theoretical straight line and the actual output curve.
Lag: Refers to the degree to which the input-output curve of the system does not coincide during loading and unloading processes.
Repeatability: Refers to the degree of inconsistency in the system's output for several consecutive weighing of the same weight during the loading or unloading process. Usually expressed as the percentage of the total output that is the difference between the minimum output and the maximum output of the system under the same loading condition.
Creep: Refers to the characteristic of a system bearing a constant weight at a certain temperature, and the output changes over time due to mechanical deformation of the elastic material of the sensor.
　
The above is [MS-3 sensor] MS-3-100kg_ MS-3-1000kg_ AC weighing sensor ☆ agent details in the United States, if you are interested in [MS-3 sensor] MS-3-100kg_ MS-3-1000kg_ If you have any questions about the price, delivery time, model, or inventory of AC weighing sensors in the United States, please feel free to call us18520271262 Chen GongObtain [MS-3 Sensor] MS-3-100kg_ MS-3-1000kg_ Latest price details for AC weighing sensors ☆ agents in the United States.
