[Fulintech SB2 sensor] SB2-45klb~SB2-100klb_ German FLINTEC load cell

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　

【Guangzhou Zhongxin Automation Technology Co., Ltd】Professional supply of German FLINTEC Fulintec SB2 series weighing sensors, 【 Fulintec SB2 sensors 】 SB2-45klb~SB2-100klb_German Flintec Fulintec weighing sensorEnsure fast delivery time, 100% original import, and strive to become the top brand for sensor sales in China. FLINTEC SB2 series from GermanyLoad CellRelated models: SB2-45klb-GP, SB2-45klb-M-GP, SB2-100klb-GP, SB2-45klb-C1, SB2-45klb-M-C1, SB2-100klb-C1, SB2-45klb-C3, SB2-45klb-M-C3, SB2-100klb-C3
　

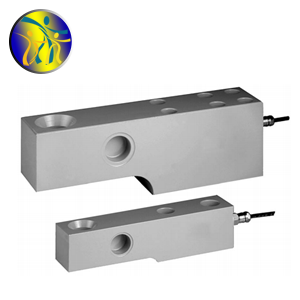

Introduction to Flintec's SB2 Series Products
　
Stainless steel structure
Environmental protection level IP68 (up to 2 meters of water depth), IP69K
♕ Maximum platform size 600 X 600 mm
♕ Certification: OIML certification C1 (Y=4667) and C3 (Y=10 000)
♕ NTEP accuracy 1/4500, Class III
ATEX explosion-proof certification can be applied to areas 0, 1, 2, 20, 21, and 22
FM explosion-proof certification
♕ Optional: C3, C3 MI6, C4 (Y=15 000)
♕ Applied to weighbridges, truck scales, track scales, material tanks, etc
　
Installation dimensions of Flintec Fulintech SB2 series
　
　
　
Flintec SB2 Series Technical Data
　
　
　
The complete model of Flintec's SB2 series
　
SB2-45klb-GP load cell, SB2-45klb-M-GP load cell, SB2-100klb-GP load cell
SB2-45klb-C1 load cell, SB2-45klb-M-C1 load cell, SB2-100klb-C1 load cell
SB2-45klb-C3 load cell, SB2-45klb-M-C3 load cell, SB2-100klb-C3 load cell
　
Extended Reading
　
Brand Introduction
FLINTEC GmbH, a German company founded in 1985, is currently one of the world's largest manufacturers of weighing sensors. The company's headquarters and product research and development are located in Germany, with branches and production bases in countries and regions such as the UK, the United States, Sweden, India, Sri Lanka, etc. The company always adheres to the enterprise philosophy of putting people first, technology as the guide, and quality as the life. Its leading product, the stainless steel fully sealed series sensor, is widely used in various industrial occasions, especially in harsh environments for weighing and force detection due to its unique design and excellent performance. Therefore, in recent years, it has been able to rapidly develop and occupy a leading position in the industry. FLINTEC's stainless steel fully sealed products cover single point, cantilever, flat, S-shaped, and column types, especially small range fully sealed products. With excellent C4 performance and excellent IP68 protection ability, FLINTEC is an industry leader. FLINTEC's products all have OIML, NTEP, PTB, and FM certifications, suitable for various harsh environments, high-precision, and high reliability measurement and force measurement occasions. FLINTEC has a strong technical force, with senior professional and technical personnel scattered throughout various subsidiaries around the world. Through long-term good customer service, FLINTEC has accumulated deep on-site experience, which can quickly and effectively provide product selection and various complex application technical support to global customers.
　
Product features:
1. FLINTEC's product material is all stainless steel metal welded seal, fundamentally solving the problem of corrosion and cracking at the joint caused by the welding of alloy steel elastomers and stainless steel shells of other brand products. Truly achieving durable IP67-68 protection level in harsh environments.
2. All products of FLINTEC are made of high-strength acid, alkali, and aging resistant cables and connectors, and negative pressure suction sealing measures are taken during packaging to ensure the reliability of the protection level.
3. All FLINTEC products launched in China have an accuracy level of OIMLC3-C4 that is internationally certified.
4. FLINTEC's RC1 and RC3 cylindrical sensors are designed with reasonable body height and curvature radius of the force surface, thus having a swing amplitude of up to 13mm while ensuring self resetting.
5. All products of FLINTEC use high-quality 1100 Ω high resistance strain gauges, and the increase in input and output impedance greatly reduces the load on the electrical measurement system, while also reducing the resulting electric heating effect and improving its temperature performance.
6. Possess Eex ia IIC T6... T4 explosion-proof system certification and manufacturing capabilities, and can provide explosion-proof products according to user needs.
7. We can provide high-temperature products that can withstand temperatures up to 250 ℃ according to user needs.
8. Lightning protection products with built-in lightning arresters (4X) can be provided according to user needs.
9. A digital product that can provide digital output.
10. Various forms of sensors can be designed according to customer needs. Technical information is payable upon request, and inquiries are welcome.
　
Cantilever beam type weighing sensorsummary
The cantilever beam type steel weighing sensor is fixed at one end and loaded at the other end, using steel balls for force transmission, with upper and lower pressure heads for load-bearing or double ball head structure, and has a good sealing structure. After being subjected to force, the automatic centering is good, easy to install, convenient to use, and has good interchangeability.
　
The above are the SB2-45klb~SB2-100klb sensors from Fulin Tech SB2_ Detailed information of the German FLINTEC weighing sensor, if you are interested in the SB2-45klb~SB2-100klb of the Fulintec SB2 sensor_ If you have any questions about the price, delivery time, model, and inventory of the German FLINTEC weighing sensor, please feel free to call18520271262Obtain [Fulin Tech SB2 Sensor] SB2-45klb~SB2-100klb_ Latest price details for German FLINTEC weighing sensors.
