9363-50kg~9363-10000kg Vishay Revere weighing sensor from the United States

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　 　 　 　
Guangzhou Zhongxin Automation Technology Co., Ltd. specializes in supplying the Vishay Revere 9363 series in the United StatesLoad Cell9363-50kg~9363-10000kg Vishay Revere weighing sensors from the United States guarantee fast delivery, 100% original and genuine products, striving to become the first brand of sensor sales in China. Vishay Revere 9363 series load cell related models: 9363-50kg, 9363-100kg, 9363-500kg, 9363-1000kg, 9363-1000kg, 9363-2500kg, 9363-5000kg, 9363-7500kg, 9363-10000kg.

Introduction to Vishay Revere 9363 Series Products in the United States

Product brand:Vishay Revere Load Cell, USA, Revere Load Cell

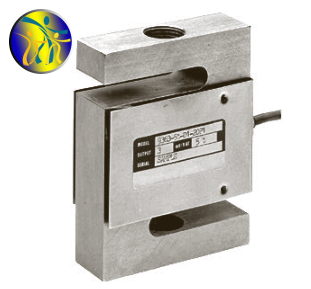

Product characteristics:S-type load cell
Protection level IP67, strong sealing performance
Stainless steel structure, adjusted output version standard
Optional FM approved for potential explosion
Certified as OIML r-603000d, NTEP course iii, 10000
Range: 50kg~10000kg (50lbs~20klbs)
Application scope: lever conversion, suspension scale, tension/tension measurement, testing machine, hook scale, mixing station, etc

Installation dimensions of the Vishay Revere 9363 series in the United States

　

Vishay Revere 9363 Series Technical Indicators in the United States

　

The complete model of the Vishay Revere 9363 series in the United States

Vishay Revere 9363-50lbs load cell, Vishay Revere 9363-75lbs load cell
Vishay Revere 9363-100lbs load cell, Vishay Revere 9363-150lbs load cell
Vishay Revere 9363-200lbs load cell, Vishay Revere 9363-250lbs load cell
Vishay Revere 9363-300lbs Load Cell
Vishay Revere 9363-750lbs load cell, Vishay Revere 9363-1klbs load cell
Vishay Revere 9363-1.5klbs load cell, Vishay Revere 9363-2klbs load cell
Vishay Revere 9363-3klbs load cell, Vishay Revere 9363-5klbs load cell
Vishay Revere 9363-10klbs load cell, Vishay Revere 9363-15klbs load cell
Vishay Revere 9363-20klbs load cell, Vishay Revere 9363-50kg load cell
Vishay Revere 9363-100kg load cell, Vishay Revere 9363-250kg load cell
Vishay Revere 9363-500kg load cell, Vishay Revere 9363-1000kg load cell,
Vishay Revere 9363-2500kg load cell, Vishay Revere 9363-5000kg load cell
Vishay Revere 9363-7500kg load cell, Vishay Revere 9363-10000kg load cell

Extended Reading

Performance indicators of weighing sensors
The performance of a weighing system can be measured by indicators such as linearity, hysteresis, repeatability, and creep.
Linear:Indicates the consistency between the actual output of the system and the theoretical straight line. As shown in the figure, when linear errors occur, the output of the system is correct at no load and full load, but the input-output points between these two points are inconsistent with the ideal state. Linear error is the maximum difference between the theoretical straight line and the actual output curve.
Lag:Indicates the degree to which the input-output curve of the system does not coincide during loading and unloading.
Repeatability:Indicates the degree of inconsistency in the system's output for several consecutive weighing of the same weight during the loading or unloading process. Usually expressed as the percentage of the total output that is the difference between the minimum output and the maximum output of the system under the same loading condition.
Creep:The characteristic of a system that bears a constant weight at a certain temperature, and the output changes over time due to the mechanical deformation of the elastic material of the sensor.
　
Overview of S-type load cells
The S-type weighing sensor is the most common type of sensor, mainly used to measure the tension and pressure between solids. It is also commonly referred to as a tension and pressure sensor because its appearance resembles the S-shape, so it is commonly referred to as an S-type weighing sensor. This sensor is made of alloy steel material, sealed with adhesive protection, easy to install and use, and is suitable for electronic force measurement and weighing systems such as hanging scales, ingredient scales, and machine modified scales.
　
The above is the detailed information of the 9363 Sensor 9363-50kg~9363-10000kg Vishay Revere weighing sensor in the United States. If you have any questions about the price, delivery time, model, and inventory of the 9363 Sensor 9363-50kg~9363-10000kg Vishay Revere weighing sensor in the United States, please feel free to call18520271262 Chen GongObtain the latest price details for the 9363-50kg~9363-10000kg Vishay Revere weighing sensor from the United States.
