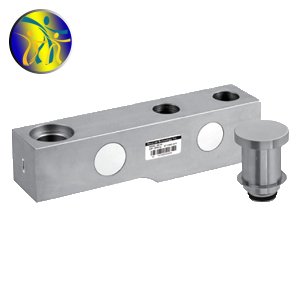

Guangzhou Zhongxin Automation Technology Co., Ltd. specializes in supplying Transcell's SB series weighing sensors, SB-10t~SB-20t, to the United States_ Transcell weighing sensors from the United States guarantee fast delivery times, 100% original and authentic products, and strive to become the top brand of sensor sales in China. The relevant models of the American Transcell SB series weighing sensors include SB-10t, SB-15t, and SB-20t; SB-10000kg, SB-15000kg, SB-20000kg.
Introduction to Transcell Power SB Series Products
Product brand:
American Transcell weighing sensorTranscell weighing sensor
Product features:
Cantilever beam weighing sensor▲ High quality alloy steel material
▲ High precision
▲ High stability
Unique load-bearing blind hole design
▲ Easy and fast installation
▲ Surface nickel plating anti-corrosion treatment
▲ Range options: 10t, 15t, 20t
▲ Suitable for platform scales, mixing plants, and ingredient scales, etc
Installation dimensions of Transcell Power SB series
Technical parameters of Transcell Power Transmission SB series
Transcell Power Transmission SB Series Wiring Method
Expand reading
Performance indicators of weighing sensorsThe performance of a weighing system can be measured by indicators such as linearity, hysteresis, repeatability, and creep.
Linear:Indicates the degree of consistency between the actual output of the system and the theoretical straight line. As shown in the figure, when a linear error occurs, the output of the system at no-load and full load is correct, but the input-output point between these two points is inconsistent with the ideal state. Linear error is the maximum difference between the theoretical straight line and the actual output curve.
Lag:Indicates the degree to which the input-output curve of the system does not coincide during loading and unloading processes.
Repeatability:Indicates the degree of inconsistency in the system's output for consecutive weighing of the same weight during loading or unloading. It is usually expressed as the percentage of the difference between the minimum output and the maximum output of the system under the same loading conditions to the total output.
Creep:The characteristic of the system withstanding a constant weight at a certain temperature, and the output changing over time due to mechanical deformation of the elastic material of the sensor.
Overview of cantilever beam weighing sensors
The cantilever beam type steel weighing sensor is fixed at one end and loaded at the other end, using steel balls for force transmission. It is supported by upper and lower pressure heads or a double ball head structure, with a good sealing structure. After being subjected to force, the automatic centering is good, easy to install, convenient to use, and has good interchangeability.
The above are the transmission BSS sensors SB-10t~SB-20t_ Detailed information on the American Transcell weighing sensor, if you are interested in the 【 Transmission BSS Sensor 】 SB-10t~SB-20t_ If you have any questions about the price, delivery time, model, or inventory of Transcell weighing sensors in the United States, please call 18520271262 to obtain the 【 Transcell BSS Sensor 】 SB-10t~SB-20t_ Latest price details for Transcell weighing sensors in the United States.
