[Transmission FAK sensor] FAK-3kg~FAK-200kg_ American Transcell weighing sensor

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
　Guangzhou Zhongxin Automation Technology Co., LtdWe specialize in supplying the Transcell FAK series weighing sensors from the United States, ranging from FAK-3kg to FAK-200kg_ Transcell weighing sensors from the United States guarantee fast delivery times, 100% original and authentic products, and strive to become the top brand of sensor sales in China. Transcell FAK series in the United StatesWeighing sensorRelated models: FAK-3kg, FAK-6kg, FAK-10kg, FAK-12kg, FAK-15kg, FAK-20kg, FAK-25kg, FAK-30kg, FAK-35kg, FAK-40kg, FAK-45kg, FAK-60kg, FAK-120kg, FAK-150kg, FAK-200kg

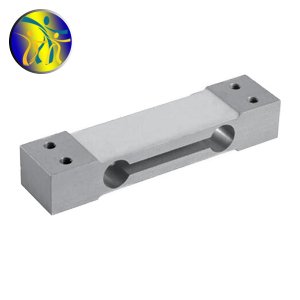

Introduction to the Transcell FAK series products

Product brand:American Transcell weighing sensorPower transmission weighing sensor
Product features:Single point weighing sensor
☆ High quality aluminum alloy material
☆ High precision
☆ High stability
☆ Easy and fast installation
☆ Optional range: 3kg~200kg
☆ Suitable for postage scales, packaging scales, small hopper scales, platform scales, etc
　
Installation dimensions of the Transcell transmission FAK series
　
　
　
Technical parameters of the Transcell transmission FAK series

　
　
Complete models of the Transcell FAK series
　
FAK-3kg,FAK-6kg,FAK-10kg,FAK-12kg,FAK-15kg,FAK-20kg,FAK-25kg,FAK-30kg
FAK-35kg,FAK-40kg,FAK-45kg,FAK-60kg,FAK-120kg,FAK-150kg,FAK-200kg

expand

The origin of single point weighing sensors
In the discussion of the first International Industrial Weighting and Force-measuring Exhibition in 1979, a new term emerged in the terminology of sensors: "single point" force sensing. The latest generation of retail scales did not include any auxiliary flexures supporting the upper weighing software platform, which was rigidly fixed to the central sensor. The design of this type of single point force sensor is based on the parallelogram principle, but an additional center cross beam needs to be provided for the strain gauge to complete the task of measuring beams and deflection components in the top and bottom parts of the parallelogram. Its advantage is that the strain gauge moves away from the position caused by eccentric loading, which leads to twisting effects, while increasing the rigidity of the structure. This type of force sensor is subjected to eccentric loading tests in the manufacturing plant. Apply 1/3 of the sensor's maximum load in different directions within a radius of 200 millimeters. Each sensor must operate within ± 1/3000 of the center reading value, which is a typical design. Another noteworthy new news in the field of force sensors is the promotion and application of the principle of gyroscopes. The gyroscopic force measurement system utilizes the proprietary characteristics of the tourbillon, making it a precise, linear, and reproducible force sensor. After studying the anti lag, anti drift, and anti temperature effects of this force sensor, the gyroscopic force measurement system can transmit direct digital signals to the display unit with high anti-interference performance. These characteristics make it completely independent of harsh environmental conditions. The rotor of the gyroscope rotates at a constant speed, and the horizontal axis of the rotor is installed in a universal support. There is a movable joint hanging an external universal support, which also supports one end of the movable lever below the tourbillon.

The above is the transmission force FAK sensor FAK-3kg~FAK-200kg_ For detailed information on the American Transcell weighing sensor, if you are interested in the 【 Transmission FAK Sensor 】 FAK-3kg~FAK-200kg_ If you have any questions about the price, delivery time, model, or inventory of Transcell weighing sensors in the United States, please call 18520271262 to obtain the 【 Transmission FAK Sensor 】 FAK-3kg~FAK-200kg_ Latest price details for Transcell weighing sensors in the United States.
