[Tedia 1142 Sensor] 1142-10g~1142-200kg_ Vishay Tedea Huntleigh Load Cell, USA

Product brand: Tedea, USA

Product series: 1142

Product type: weighing sensor

Product distribution: Guangzhou Zhongxin Automation Technology Co., Ltd

Product range: 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg, 200kg

Product Introduction:

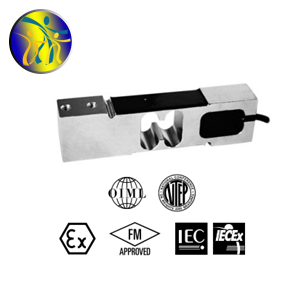

(1) The 1142 type is a stainless steel single point weighing sensor suitable for direct installation on platforms, workbenches, counting, and other applications of various scales. The combination of small physical size, high precision, and low cost makes the 1142 weighing sensor a perfect choice for new or renovated scale construction.

(2) The moisture-proof protective coating ensures stable operation in humid environments throughout the entire compensation range and complies with IP66 (IEC 60529). For hazardous areas, ATEX approved versions can also be used.

(3) The six wire cable includes two sensing lines to compensate for changes in wire resistance caused by temperature changes and cable extension.

(4) Is the 1142 option available- 20 UNC or M6 × The selection of 12 bolt threads, as well as the grounding type option that includes a "shielded" wire in the load cell cable.

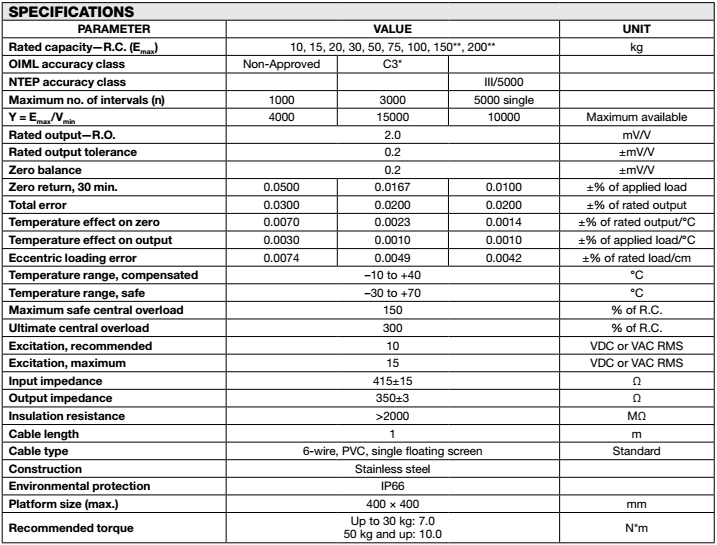

Product features:

(1) Capacity range: 10-150 kg

(2) Stainless steel structure

(3) Single point 400 × 400mm platform

(4) Sealed to IP66

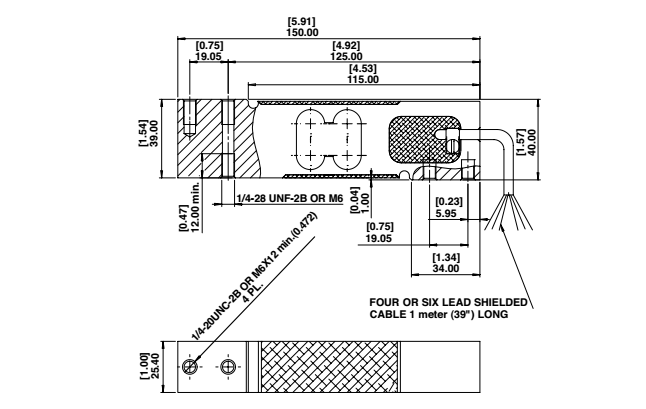

(5) Compact size: only 40mm high

(6) OIML approved according to C3 (20-100 kg) and NTEP III/5000 level

(7) Selection of installation threads:- 20 UNC or M6 × twelve

(8) Optional: ① ATEX, FM, and IECEx certifications are available; ② The grounding version includes shielded wires

(9) Load Cell Cable

Product application:

(1) Platform scale

(2) Counting balance

(3) Grocery scale

1142-10kg

1142-15kg

1142-20kg

1142-30kg

1142-50kg

1142-75kg

1142-100kg

1142-150kg

1142-200kg
