【 Tedia 3421 Sensor 】 3421-5000lbs~10000lbs_ Vishay Tedea Huntleigh weighing sensor in the United States

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　 　 　
Guangzhou Zhongxin Automation Technology Co., LtdProfessional supply of TEDEA 3421 series in the United StatesWeighing sensor[Tedia 3421 Sensor] 3421-5000lbs~10000lbs_ Vishay Tedea Huntleigh weighing sensors from the United States guarantee fast delivery times and 100% genuine products, striving to become the top brand in sensor sales in China. TEDEA 3421 series weighing sensor related models: 3421-5000lbs, 3421-7500lbs, 3421-10000lbs.

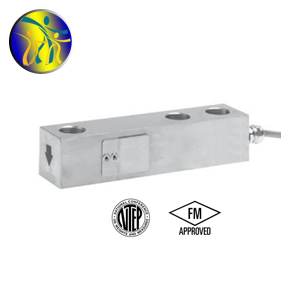

Tedea Huntleigh 3421 Series Product Introduction

Product brand:Tedia Load Cell, USATedea weighing sensor
Product features:Cantilever beam weighing sensor
-Design of Steel and Stainless Steel Materials
-NTEP certification
-Protection level IP67
-Has good waterproof and moisture-proof functions
-Basic accessories: M3001/M3002
-Optional features: FM certification optional
-Explosion proof: EEx ia IIC T6
-Range: 5000lbs, 7500lbs, 10000lbs
-The 3421 series is applied in the fields of flat platforms, pallet truck weighing, vehicle and silo weighing, etc.
　
Tedea Huntleigh 3421 series installation dimensions


　
Tedea Huntleigh 3421 series technical specifications


　
Tedea Huntleigh 3421 series complete model

Complete specifications
3421-5000lbs，3421-7500lbs，3421-10000lbs

Module accessories
M3003/M3004、M3044、M3006、65059-TWA、65082-TWA

Expand reading

Brand Introduction
Vishay Group is currently one of the largest manufacturers of high-precision weighing sensors in the world and a pioneer in commercial and industrial electronic weighing systems and sensor technology. Vishay Electronics Co., Ltd. is a wholly-owned enterprise of Vishay Group in China, established in 1994. Currently, in addition to producing various weighing sensors, it also sells other products of the group company, including various weighing instruments, transmitters, etc.
　
Overview of cantilever beam weighing sensors
The cantilever beam type steel weighing sensor is fixed at one end and loaded at the other end, using steel balls for force transmission. It is supported by upper and lower pressure heads or a double ball head structure, with a good sealing structure. After being subjected to force, the automatic centering is good, easy to install, convenient to use, and has good interchangeability.
Precautions for using weighing sensors
1. The replacement and related operations of internal circuit boards and other components must be carried out by professional engineers or technicians.
2. Before opening the shell cover, ensure that the equipment is powered off for at least 10 minutes. The opening of the shell cover must be carried out by professional engineers or technicians.
3. Explosion proof materials must be transferred to a safe area for maintenance, disassembly, and reassembly.
4. The converter circuit board assembly contains sensitive components that may be damaged by static electricity. Be careful when operating to avoid direct contact with electronic components or circuit patterns on the circuit board. If necessary, take corresponding anti-static measures
　
The above is [Tedia 3421 Sensor] 3421-5000lbs~10000lbs_ Detailed information on the Vishay Tedea Huntleigh weighing sensor in the United States. If you are interested in the [Tedea 3421 sensor] 3421-5000lbs~10000lbs_ If you have any questions about the price, delivery time, model, or inventory of Vishay Tedea Huntleigh weighing sensors in the United States, please feel free to call us18520271262 Chen GongObtain [Tedia 3421 Sensor] 3421-5000lbs~10000lbs_ Latest price details for Vishay Tedea Huntleigh weighing sensors in the United States.
