[Tedia 4158 Sensor] 4158-10k~4158-75k_ Vishay Tedea Huntleigh Load Cell, USA

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　 　 　 　
Guangzhou Zhongxin Automation Technology Co., LtdProfessional supply of TEDEA TEDEA 4158 series in the United StatesLoad Cell[Tedia 4158 Sensor] 4158-10k~4158-75k_ Vishay Tedea Huntleigh weighing sensors from the United States ensure fast delivery time, 100% original and genuine products, and strive to become the top brand for sensor sales in China. TEDEA Tedia 4158 series weighing sensor related models: 4158-10klbs, 4158-20klbs, 4158-25klbs, 4158-40klbs, 4158-50klbs, 4158-60klbs, 4158-75klbs.

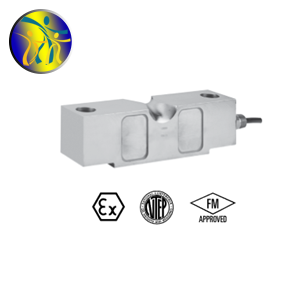

Tedea Huntleigh 4158 Series Product Introduction

Product brand:Tedia Load Cell, USA, Tedea load cell
Product feature: Double shear beam type weighing sensor
-Stainless steel material design, sealed welding
-OIML R60 and NTEP certification
-Protection level IP68, sealing device
-Strong waterproof and moisture proof function
-Module accessories: M3013/3014
-Accessories M3044
-Specially designed for harsh environments
-Range: 10, 20, 25, 40, 50, 60, 75 klbs
-Optional features: EEx ia IIC T6- Hazardous Area Certification; FM certification optional
-Application: low-key platform, pallet truck weighing, vehicle and silo weighing, weighing in harsh environments, food industry weighing

Tedea Huntleigh 4158 Series Installation Dimensions


　
Tedea Huntleigh 4158 series technical specifications


　
Tedea Huntleigh 4158 series complete model

Specification and model
4158-10klbs，4158-20klbs，4158-25klbs
4158-40klbs，4158-50klbs，4158-60klbs，4158-75klbs

Module accessories:
M4001/M4003、65069-TWA、65058-TSA 、M4002H/4158c
　
Extended Reading

Brand Introduction
Vishay Group is currently one of the largest manufacturers of high-precision weighing sensors in the world and a pioneer in commercial and industrial electronic weighing systems and sensor technology. Vishay Electronics Co., Ltd. is a wholly-owned enterprise of Vishay Group in China, established in 1994. Currently, in addition to producing various weighing sensors, it also sells other products of the group company, including various weighing instruments, transmitters, etc.
　
Overview of Double Shear Beam Load Cell
The double shear beam type steel weighing sensor is fixed at one end and loaded at the other end, using steel balls for force transmission, with upper and lower pressure heads for load-bearing or double ball head structure, and has a good sealing structure. After being subjected to force, the automatic centering is good, easy to install, convenient to use, and has good interchangeability.
Precautions for using weighing sensors
1. The replacement and related operations of internal circuit boards and other parts must be carried out by professional engineers or technicians.
2. Before opening the shell cover, ensure that the equipment is powered off for at least 10 minutes. The opening of the shell cover must be carried out by professional engineers or technicians.
3. The explosion-proof type must be transferred to a safe area for maintenance, disassembly, and reassembly.
4. The converter circuit board assembly contains sensitive components that may be damaged by static electricity. Be careful to avoid direct contact with electronic components or circuit patterns on the circuit board, and take corresponding anti-static measures if necessary
　
The above is the [Tedia 4158 sensor] 4158-10k~4158-75k_ Detailed information of the Vishay Tedea Huntleigh weighing sensor in the United States. If you are interested in [Tedea 4158 sensor] 4158-10k~4158-75k_ If you have any questions about the price, lead time, model, or inventory of the Vishay Tedea Huntleigh weighing sensor in the United States, please feel free to call18520271262 Chen GongObtain [Tedia 4158 Sensor] 4158-10k~4158-75k_ Latest price details for Vishay Tedea Huntleigh weighing sensors in the United States.
