German HBM brand HLCB1C3load cellIt is a sensor used for trade scales, with a range of 110kg to 4.4t, an accuracy level of C3, and a protection level of up to IP68. It adopts a 6-wire connection method and can be used for platform scales, belt scales, hopper scales, batching and level monitoring applications. There are also ATEX explosion-proof models available for selection.
1、 Product Introduction of German HBM Brand HLCB1C3 Weighing Sensor
1. High precision, almost suitable for any application, such as trade scale weighing systems
(1) Accuracy level up to C6 (corresponding to OIML III level)
(2) The 6-wire system can compensate for cable and resistance changes, so the cable can be cut off for use.
(3) Trade scale certification up to 6000 divisions
(4) Multiple sensors can be used in parallel and optimized
2. Durable, suitable for harsh environments, and optional explosion-proof models
(1) Stainless steel material
(2) Optional TPE-0 cable sheath, chemical resistant
(3) EMC certification, in accordance with IEC EN 45501:2015 standard
(4) IP68/IP69K protection level, suitable for harsh humid and high-pressure environments
(5) Optional explosion-proof models (e.g. IECEx ATEX Zone 1/21)
3. All rounder: standard size, multiple range options available
(1) Provide different maximum capacities: 110 kg, 220 kg, 550 kg, 1.1 t, 1.76 t, 2.2 t, 4.4 t
(2) Metrological certification: OIML, NTEP (USA), NMIA (Australia), Russia
(3) Provide explosion-proof versions (IECEx/ATEX, FM (USA) EAC）
(4) All product versions have the same size and low height
(5) Due to the use of a 6-wire configuration, cables can be cut according to length
(6) Provide different cable types and lengths

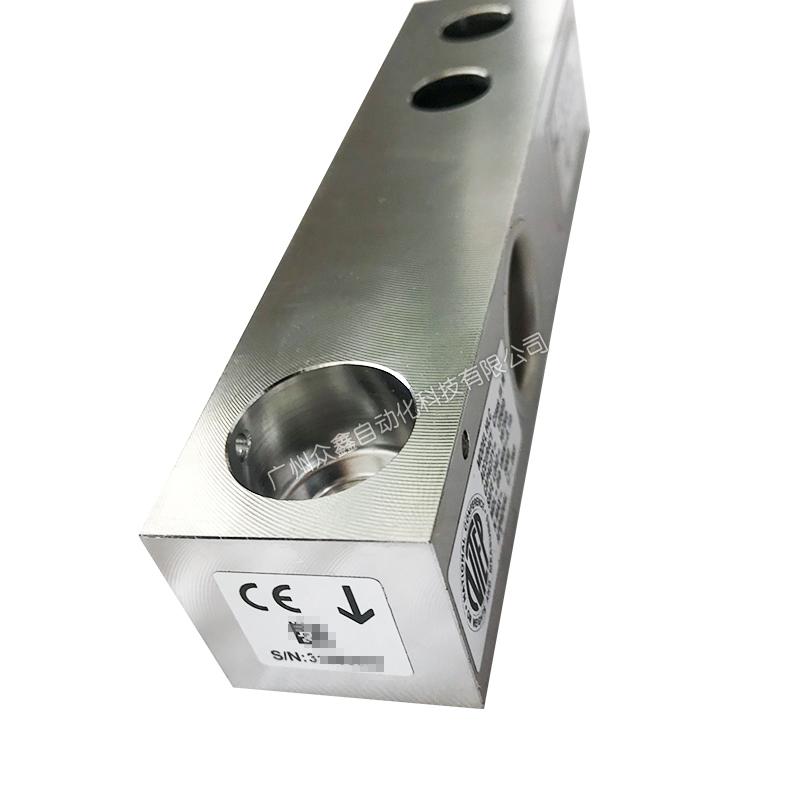

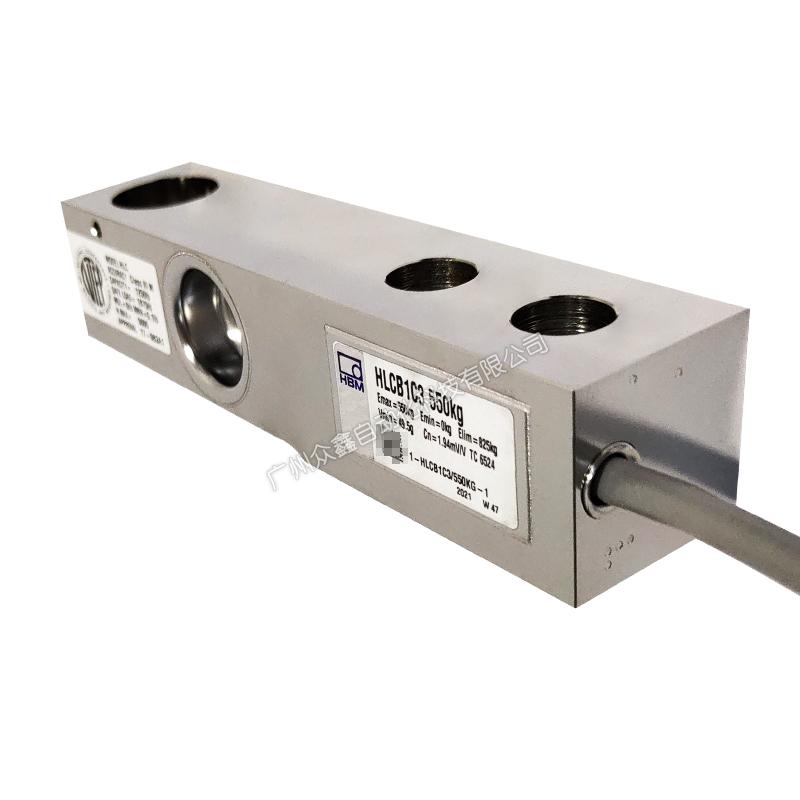

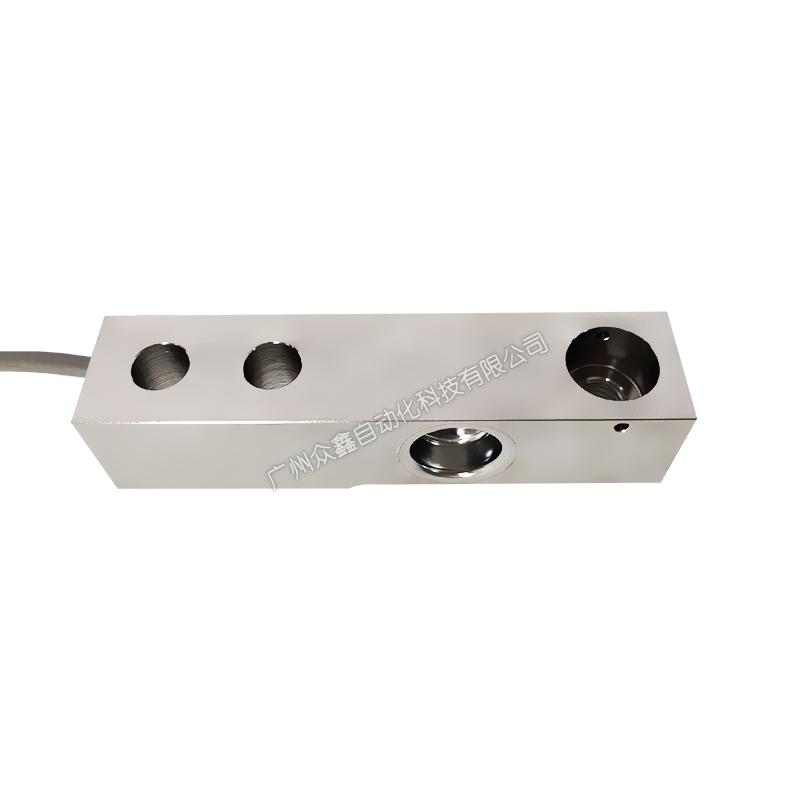

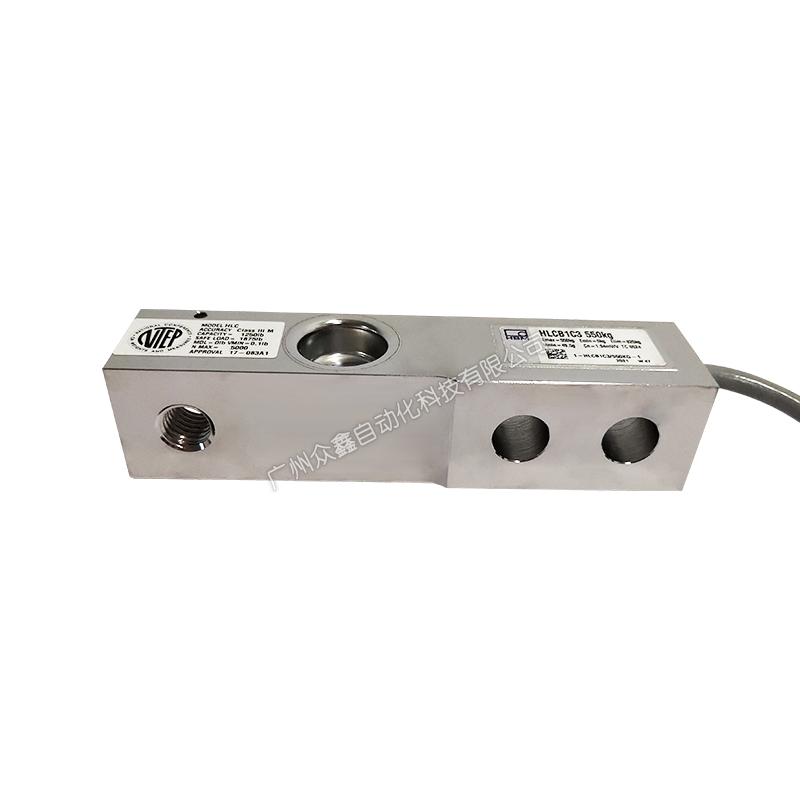

2、 Actual photo of HLCB1C3 weighing sensor from German HBM brand
3、 German HBM brand HLCB1C3 weighing sensor related models
HLCB1C3/110kg weighing sensor
HLCB1C3/220kg weighing sensor
HLCB1C3/550kg weighing sensor
HLCB1C3/1.1t weighing sensor
HLCB1C3/1.76t weighing sensor
HLCB1C3/2.2t weighing sensor
HLCB1C3/4.4t weighing sensor
4、 German HBM brand HLCB1C3 weighing sensor product size
5、 Technical parameters of German HBM brand HLCB1C3 weighing sensor product
6、 German HBM brand HLCB1C3 weighing sensor safety instructions
1. The HLC series weighing sensors are designed for weighing applications and any other use should be considered non compliant with relevant regulations.
2. To ensure safe operation, the weighing sensor can only be used according to the installation instructions. During use, it is also necessary to comply with the legal and safety requirements of the relevant application. This also applies to the use of attachments.
3. If the weighing sensor is damaged, it may cause equipment damage or endanger personal safety, and the user must take appropriate safety measures (such as safety devices to prevent falling, collapsing, or overloading). For safe and trouble free operation, weighing sensors must not only be transported, stored, positioned, and installed correctly, but also operated and maintained carefully to avoid overload use.
