9363-50kg sensor, Ramsey RAMSEY 9363-50kg weighing sensor, USA

product details

【Guangzhou Zhongxin Automation Technology Co., Ltd】Professional supply to RAMSEY Ramsey in the United States_ 9363 Series Load Cell, 【 9363 Load Cell 】_ 9363-50kg_RAMSEY Ramsey Load Cell in the United StatesEnsure fast delivery time, 100% original import, and improve complete automated weighing solutions for various industrial fields. RAMSEY Ramsey 9363 series load cell models in the United States: 9363-10kg, 9363-20kg, 9363-30kg, 9363-50kg, 9363-75kg, 9363-100kg, 9363-150kg, 9363-200kg, 9363-250kg, 9363-300kg, 9363-500kg, 9363-1000kg
　
RAMSEY 9363 series in the United StatesLoad CellIt is one of our company's key competitive products, with absolute competitive prices, spot, original, authentic, and reliable! Ensure satisfactory price and quality!
　
We solemnly promise: "If you are not satisfied within three months, you can return or exchange the goods unconditionally at any time, refund the full payment, and do not charge any fees. Two year warranty and free maintenance at any time!
　
1、 Ramsey, USA_ 9363 Sensor Product Description
　
1. Performance characteristics:
※ Can be directly supplied to PLC or calculation;
Suitable for various weighing systems such as hopper scales, platform scales, belt scales, and coal feeders;
Rated load: 10kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 1000kg.
　
2. The 9363 weighing sensor is a strain gauge pull or press type, with the main technical parameters as follows:
　

Excitation voltage: 10VDC ± 5%
Sensitivity output: 2~3mV/V
● Non linearity:<0.03% of rated output
● Repeatability:<0.03% of rated output

● Creep: 0.02% of rated output
Applicable temperature: -20 ℃~50 ℃
Overload capacity: 150% of sensor capacity
Temperature sensitivity: ± 0.0003% at zero value and ± 0.0004% at full value

　

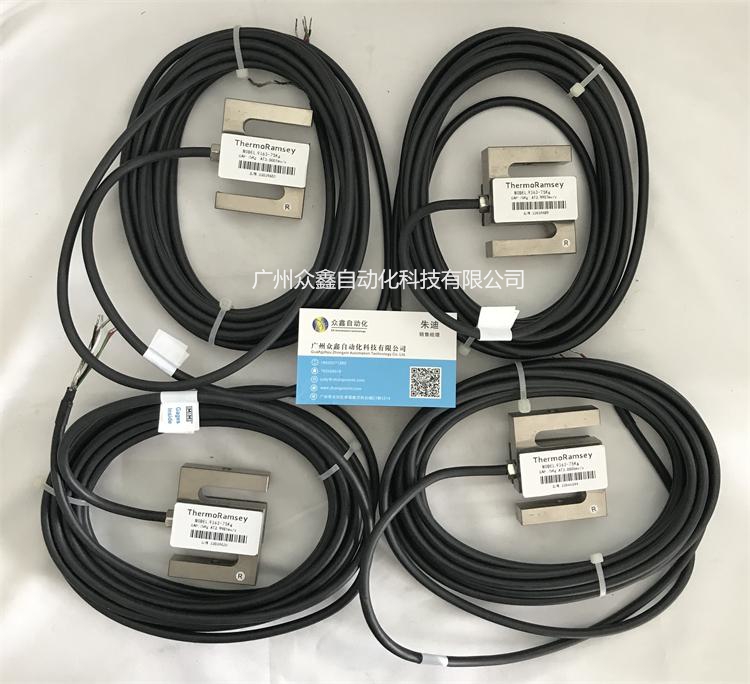

2、 Real photos of Ramsey 9363 series weighing sensors in the United States:

美国拉姆齐 9363系列称重传感器实拍图

The above is [9363 Load Cell]_ 9363-10kg~1000kg_ Detailed information on RAMSEY Ramsey load cells in the United States, if you are interested in [9363 load cells]_ 9363-10kg~1000kg_ If you have any questions about the price, delivery time, model, or inventory of RAMSEY weighing sensors in the United States, please feel free to call18520271262Chen GongObtain 【 9363 Load Cell 】_ 9363-10kg~1000kg_ Latest price details for RAMSEY Ramsey load cells in the United States.
