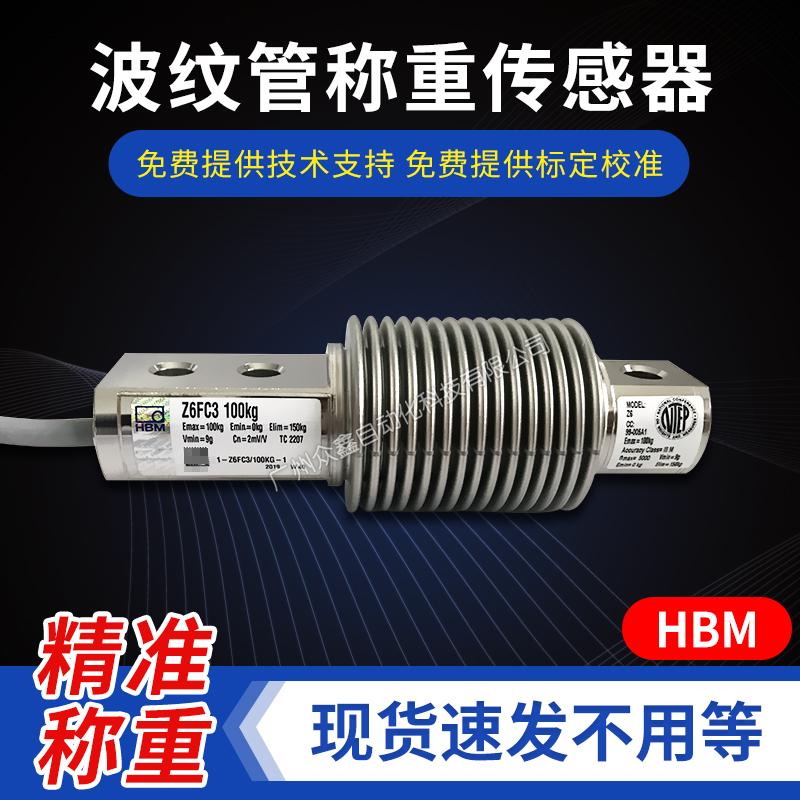

German HBM brand Z6FC3/2kgload cellBelonging to corrugated tube weighing sensors, the range can be selected from 5kg to 1T, and the protection level reaches IP68. The Z6FC3/20KG weighing sensor can be applied in harsh industrial environments, usually used for platform scales or belt scales, and can also be used for tank weighing in combination with weighing modules.
1、 German HBM brand Z6FC3/2kg weighing sensor product introduction
1. Adopting certified high-precision weighing technology
(1) OIML standard, the accuracy level of Z6FC3 is C3, and D1, C4, C5, and C6 levels can also be selected;
(2) 6-wire system, capable of resistance compensation;
(3) Excellent eccentric load performance, low sensitivity error, and output resistance.
2. Continuous and reliable weighing
(1) Electropolished stainless steel measuring body;
(2) IP68 (100 hours, 1 meter underwater);
(3) Metal bellows sealing;
(4) Conduct EMC testing according to EN 45501:2015;
(5) The sensor and installation accessories are made of stainless steel.
3. Extremely versatile and versatile
(1) Provide different rated ranges: 5 kg, 10 kg, 20 kg, 30 kg, 50 kg, 100 kg, 200 kg, 500 kg, and 1 ton;
(2) Metrological certification: OIML, NTEP (USA), NMIA (Australia), Russia;
(3) Provide explosion-proof versions (IECEx/ATEX, FM (USA) EAC）；
(4) The cable length ranges from 3 to 20 meters;
(5) 6-wire system, cable length can be cut according to needs.

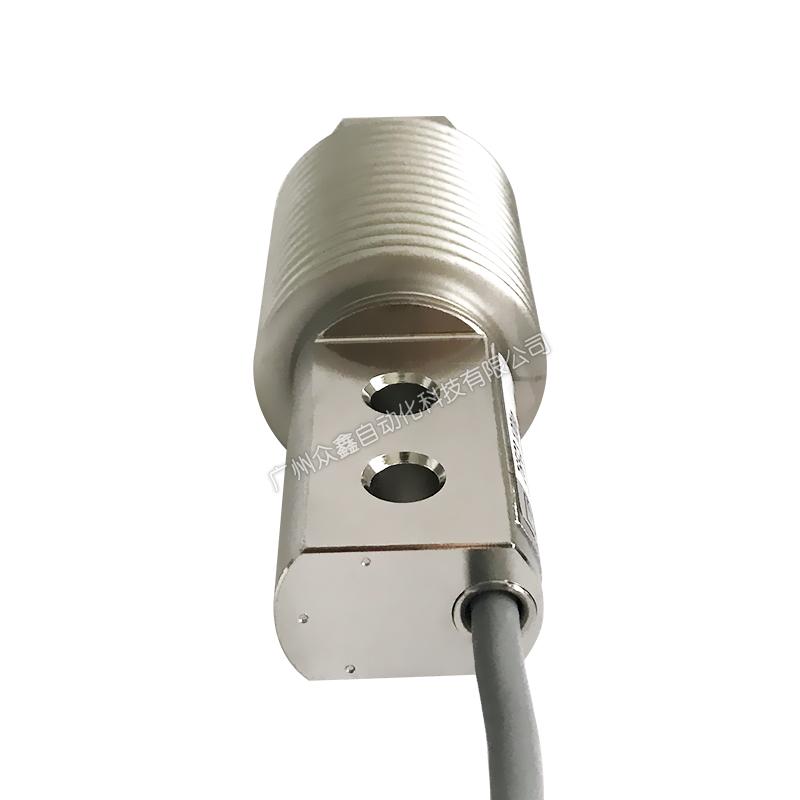

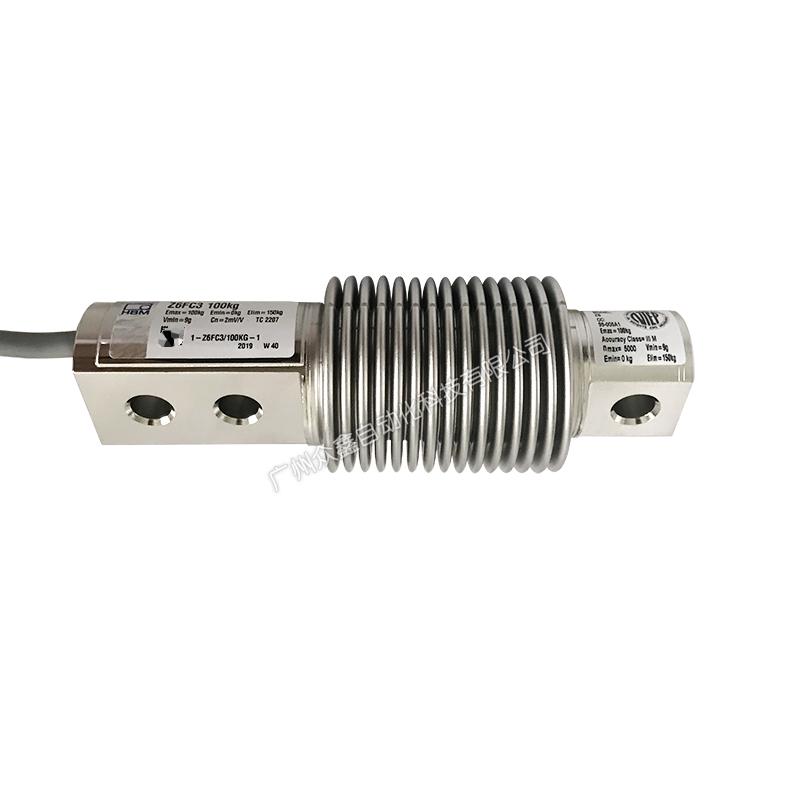

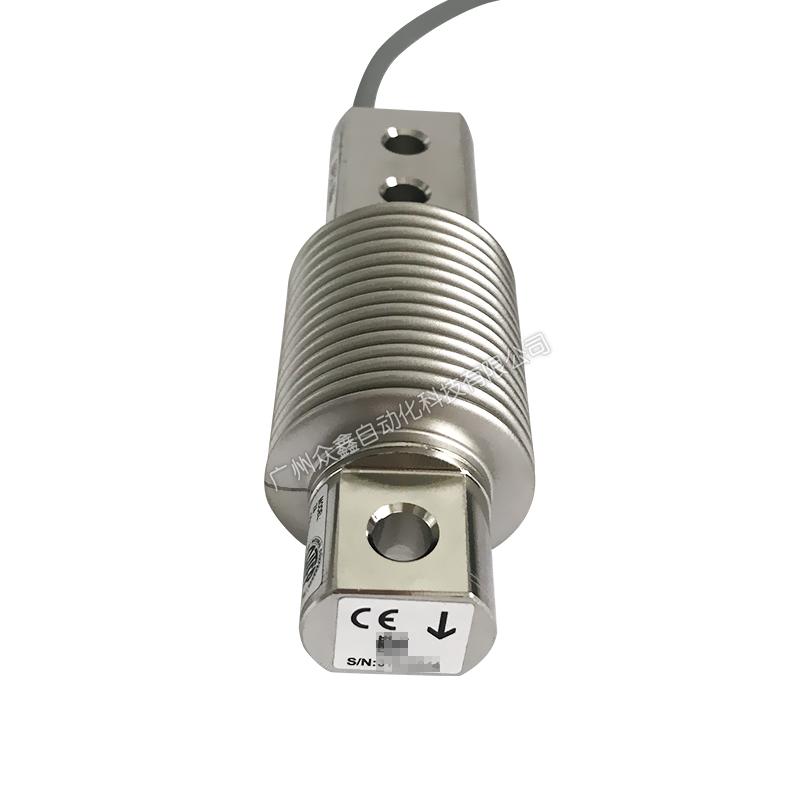

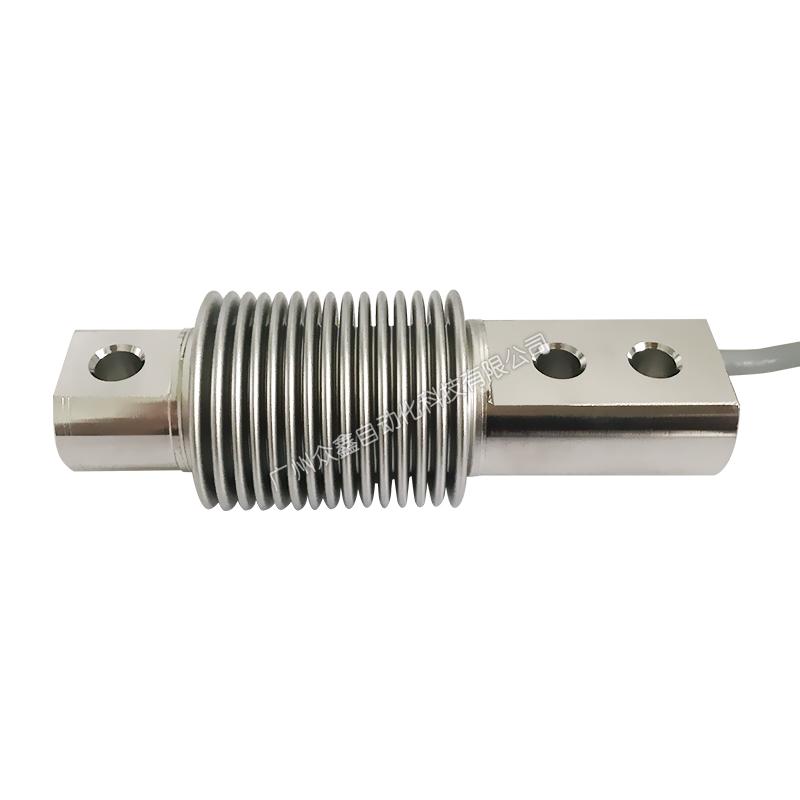

2、 German HBM brand Z6FC3 weighing sensor real-life photo
3、 German HBM brand Z6FC3/2kg weighing sensor related models
Z6FC3/10kg
Z6FC3/20kg
Z6FC3/50kg
Z6FC3/100kg
Z6FC3/200kg
Z6FC3/500kg
Z6FC3/1t
4、 German HBM brand Z6FC3/2kg weighing sensor product size
5、 Technical parameters of German HBM brand Z6FC3/2kg weighing sensor product
6、 German HBM brand Z6FC3/2kg weighing sensor safety instructions
1. The Z6F series weighing sensor is designed for weighing applications and any other use should be considered non compliant with relevant regulations.
2. To ensure safe operation, the weighing sensor can only be used according to the installation instructions. During use, it is also necessary to comply with the legal and safety requirements of the relevant application. This also applies to the use of attachments.
3. If the weighing sensor is damaged, it may cause equipment damage or endanger personal safety, and the user must take appropriate safety measures (such as safety devices to prevent falling, collapsing, or overloading). For safe and trouble free operation, weighing sensors must not only be transported, stored, positioned, and installed correctly, but also operated and maintained carefully to avoid overload use.
