German HBM Z6FD1/5kgThe weighing sensorBelonging to the corrugated tube weighing sensor, with a range of 5kg to 1T and a protection level of IP68, it can be applied in harsh industrial environments, usually used for platform scales or belt scales. Combined with weighing modules, it can also be used for material tank weighing.
1、 Product Introduction of German HBM Z6FD1/5kg Weighing Sensor
1. Using certified and high-precision weighing technology
(1) According to the OIML standard, the accuracy level of Z6FD1 is D1, and C3, C4, C5, and C6 levels can also be selected;
(2) 6-wire system, capable of resistance compensation;
(3) Excellent eccentric load performance, low sensitivity error, and output resistance.
2. Continuous and reliable weighing
(1) Electropolished stainless steel measuring body;
(2) IP68 (100 hours, 1 m underwater);
(3) Metal corrugated pipe sealing;
(4) Conduct EMC testing according to EN 45501:2015;
(5) The sensor and mounting accessories are made of stainless steel.
3. Extremely versatile and versatile
(1) Provide different rated ranges: 5 kg, 10 kg, 20 kg, 30 kg, 50 kg, 100 kg, 200 kg, 500 kg, and 1 ton;
(2) Metrology certification: OIML, NTEP (USA), NMIA (Australia), Russia;
(3) Provide explosion-proof versions (IECEx/ATEX, FM (USA), EAC);
(4) The cable length ranges from 3 to 20 meters;
(5) 6-wire system, cable length can be cut according to needs.

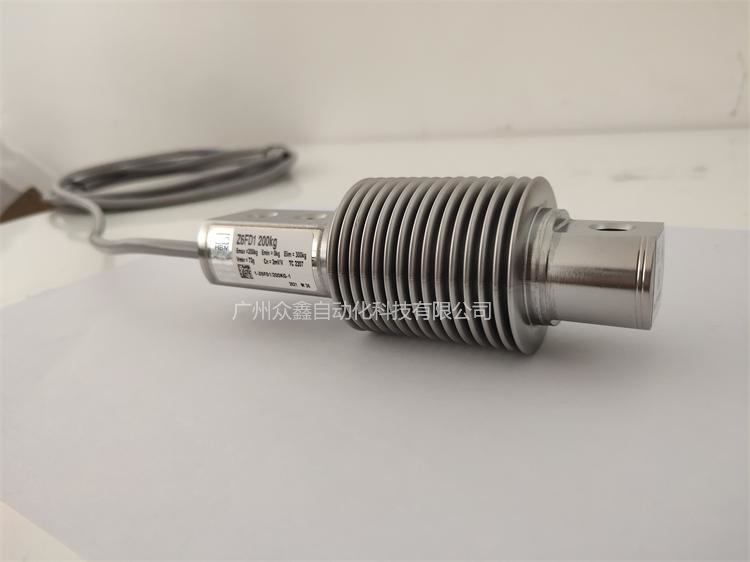

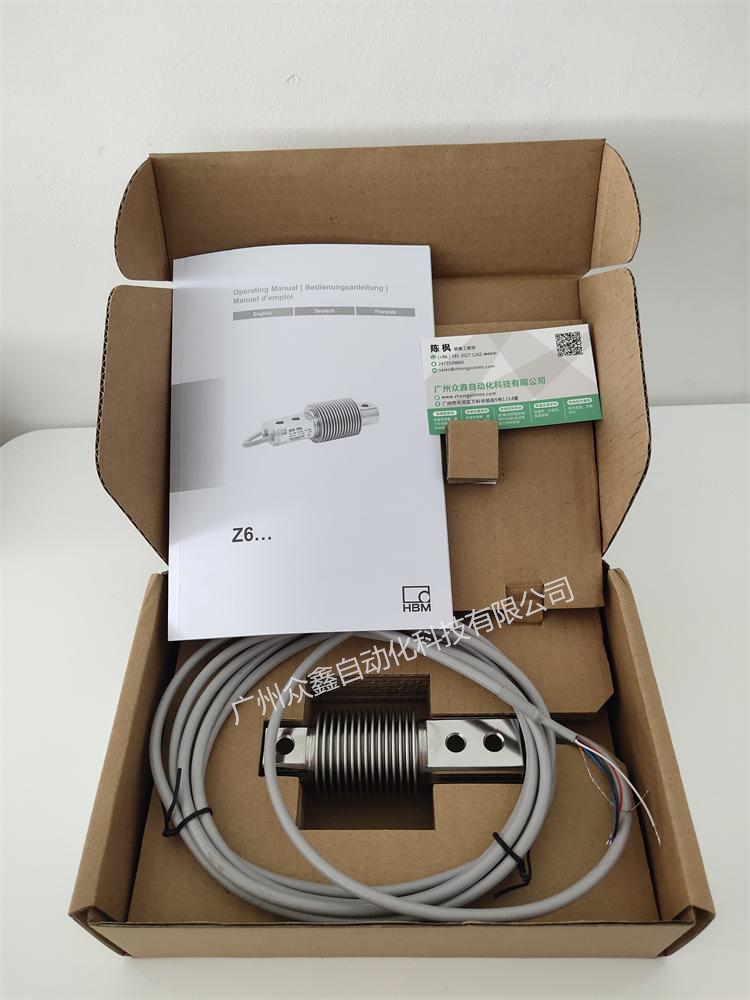

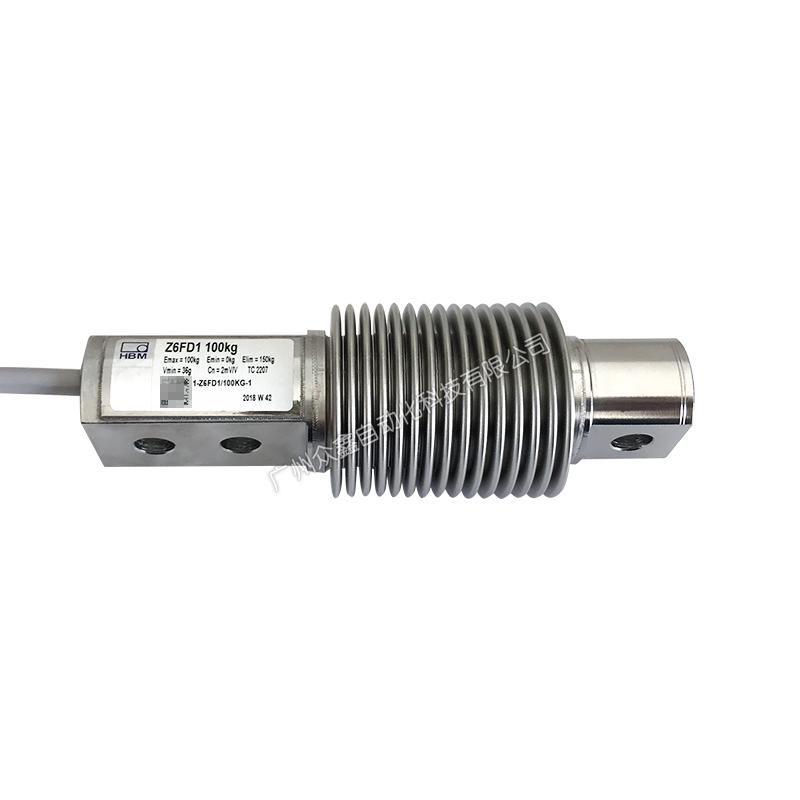

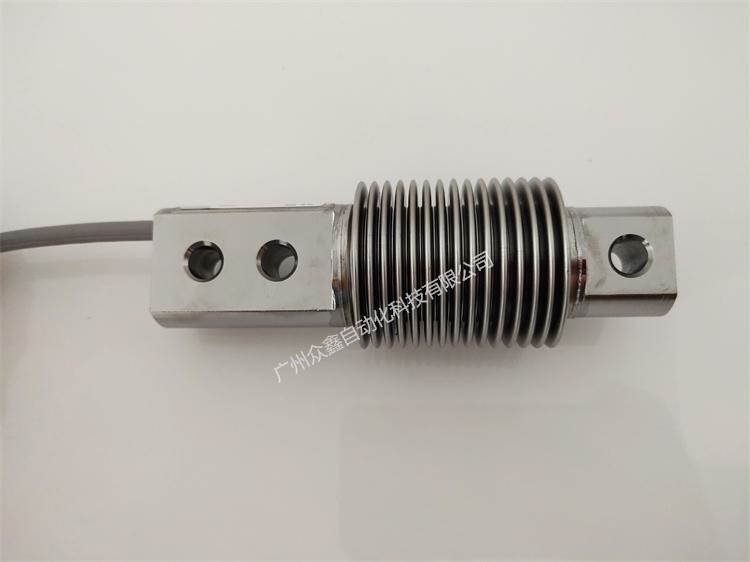

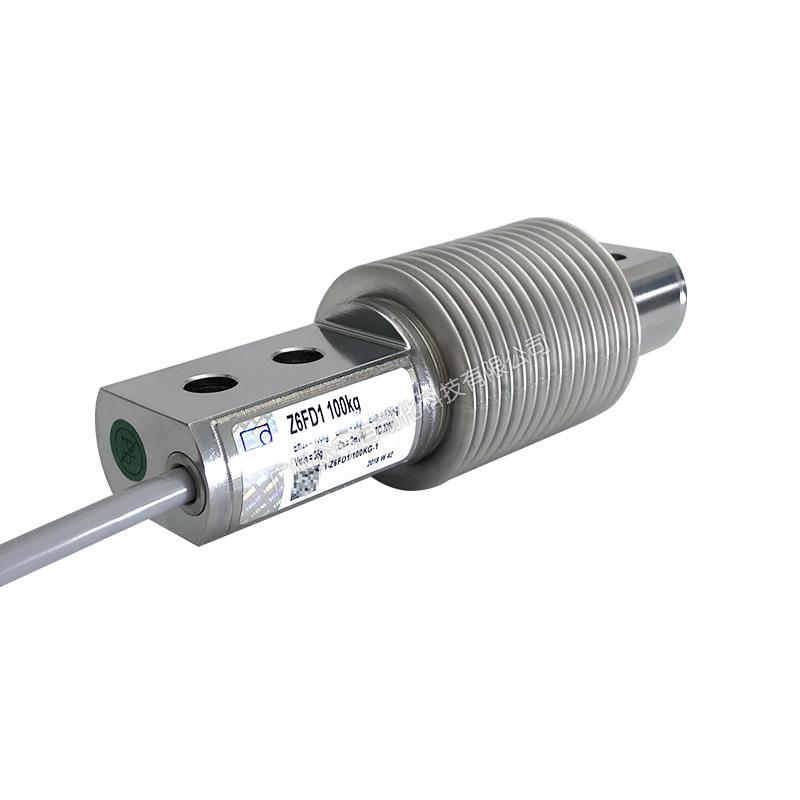

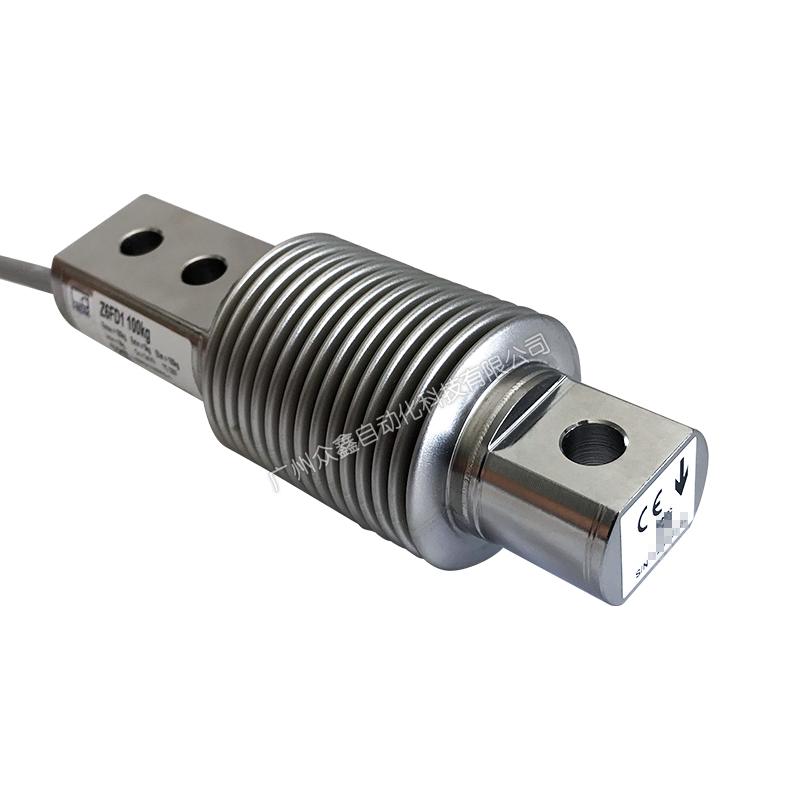

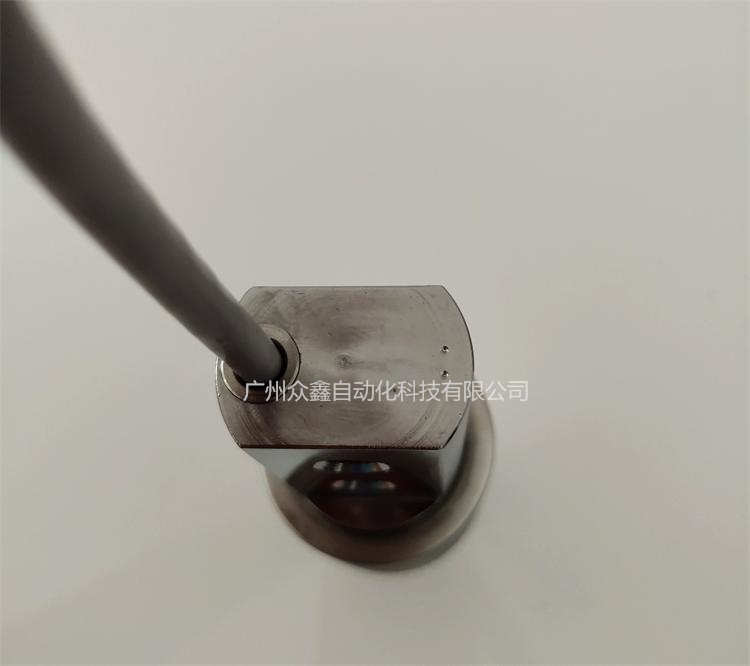

2、 Actual photo of German HBM Z6FD1 weighing sensor
3、 German HBM Z6FD1/5kg weighing sensor related models
Z6FD1/5kg
Z6FD1/10kg
Z6FD1/20kg
Z6FD1/50kg
Z6FD1/100kg
Z6FD1/200kg
Z6FD1/500kg
Z6FD1/1t
4、 German HBM Z6FD1/5kg weighing sensor product dimensions
5、 Technical parameters of German HBM Z6FD1/5kg weighing sensor products
6、 Safety instructions for German HBM Z6FD1/5kg weighing sensor
1. The Z6F series weighing sensors are designed for weighing applications and should not be considered compliant with relevant regulations for any other purpose.
2. To ensure safe operation, the weighing sensor can only be used according to the instructions in the installation instructions. During use, it is also necessary to comply with the relevant legal and safety requirements of the application. This also applies to the use of attachments.
3. If the weighing sensor is damaged, it may cause equipment damage or endanger personal safety. Therefore, users must take appropriate safety measures (such as safety devices to prevent falling, collapsing, or overloading). In order to operate safely and without faults, the weighing sensor must not only be transported, stored, positioned, and installed correctly, but also operated and maintained carefully to avoid overloading.
